Yleispuristustyökalu DeLOCK 90505

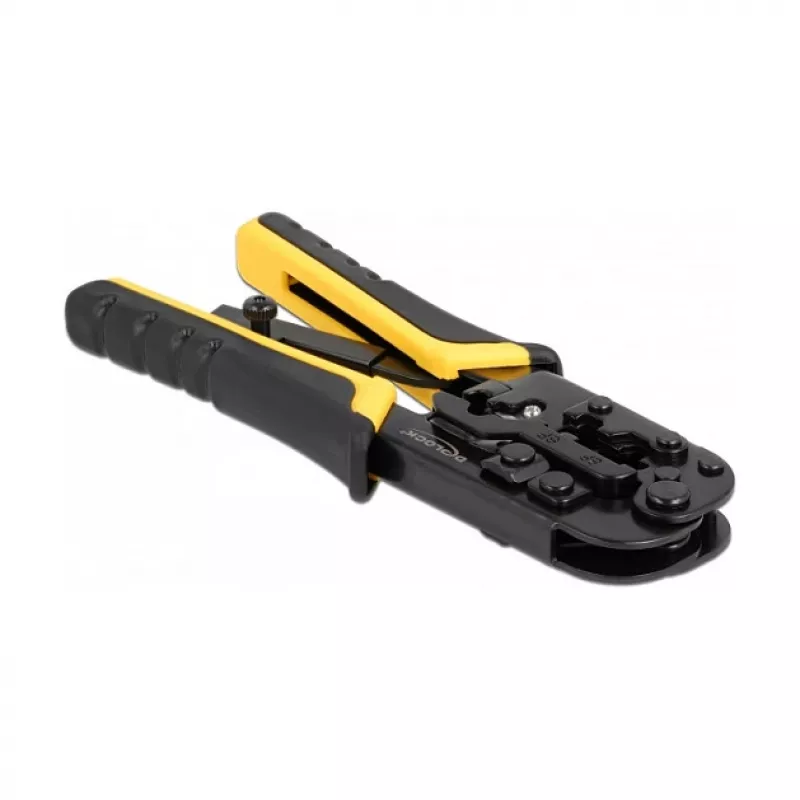

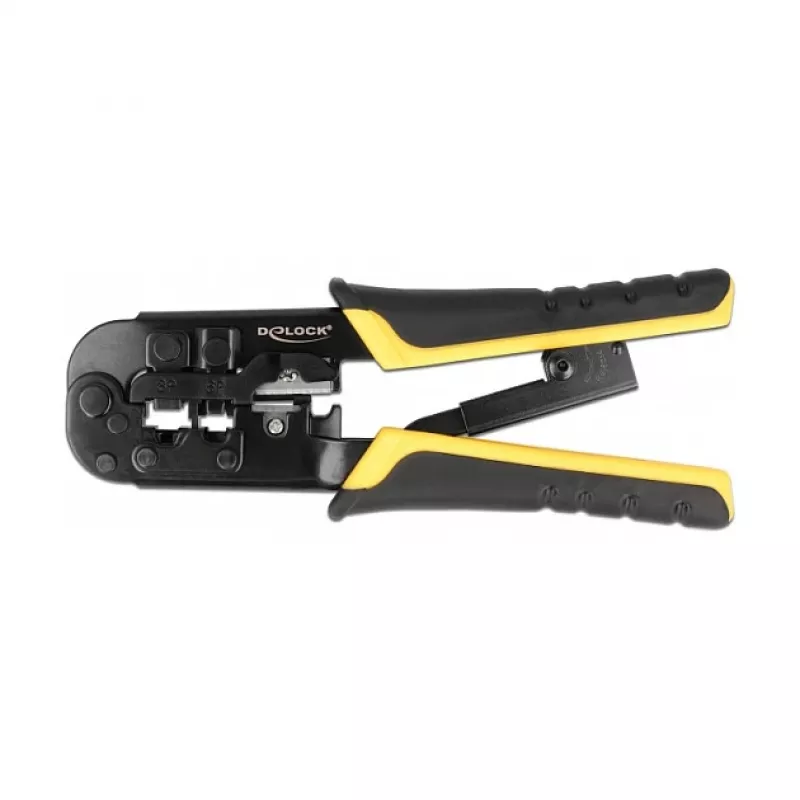

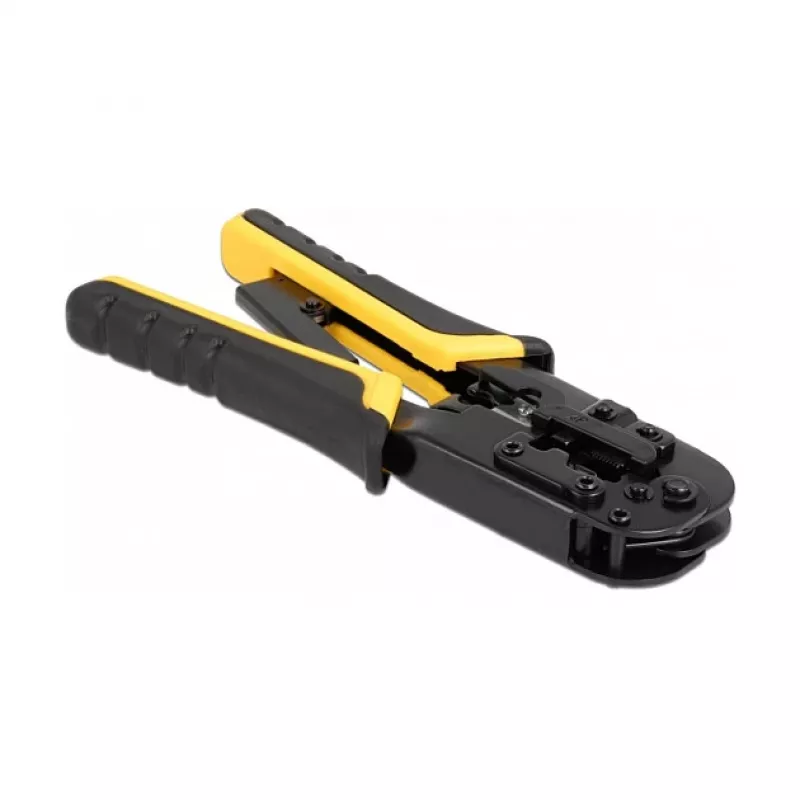

The DeLOCK Universal Crimping Tool 90505 is a multifunctional hand tool for preparing and terminating network and telephone cables. It combines crimping, stripping and cutting functions for 8P (RJ45), 6P (RJ12/11) and 4P plugs and includes integrated blades for clean cable preparation. Compact dimensions (188 × 77 × 18 mm) make the tool easy to handle and store.

Advantages

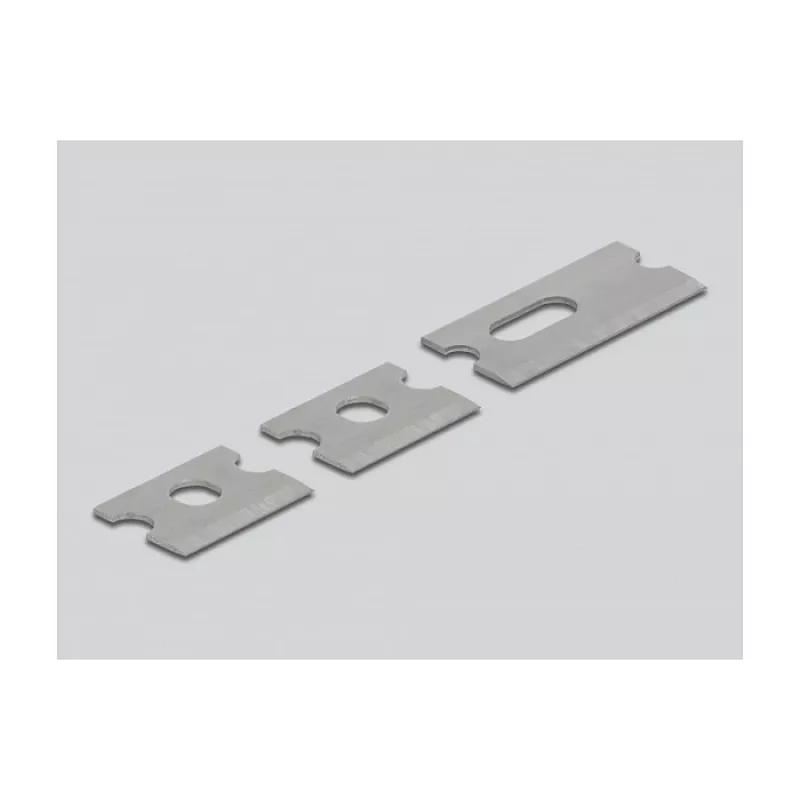

The tool provides three integrated stripping blades for reliable removal of insulation and cutting of conductor strands. It supports crimping of 8P, 6P and 4P connectors and can strip round cables up to 5.5 mm in diameter as well as flat cables up to 12.7 mm in width. The compact design and multifunctionality reduce the need for multiple separate tools.

Suitable for

Key specifications

How to use

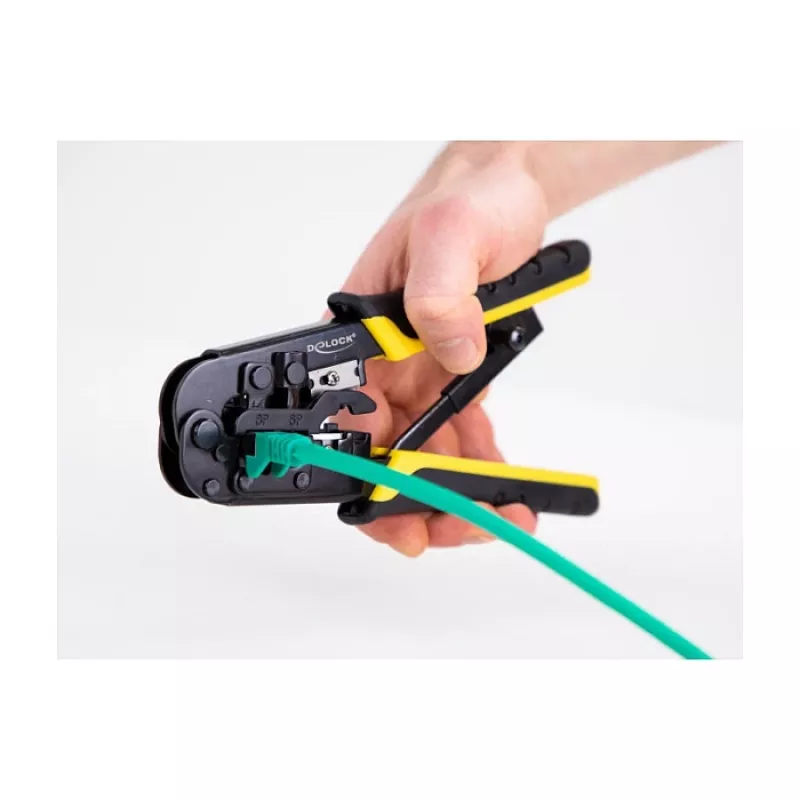

Place the connector and prepared conductor into the correct crimping die (8P/6P/4P) and squeeze the handles firmly to secure the plug to the cable. For stripping, position the cable in the integrated stripping slot that matches the cable profile and rotate or pull as needed to remove insulation. Use the cutting section to trim excess conductor strands or to cut through flat cables. Follow standard wiring colour codes when preparing network cables.

Recommendations

Use the tool with dry, undamaged cables and inspect connectors before crimping. Apply steady, even pressure while crimping and replace the tool if blades become dull or if crimping results are unreliable.
