RASKAAN SARJAN SOVITUSLEVY 100X100MM → 200X100MM

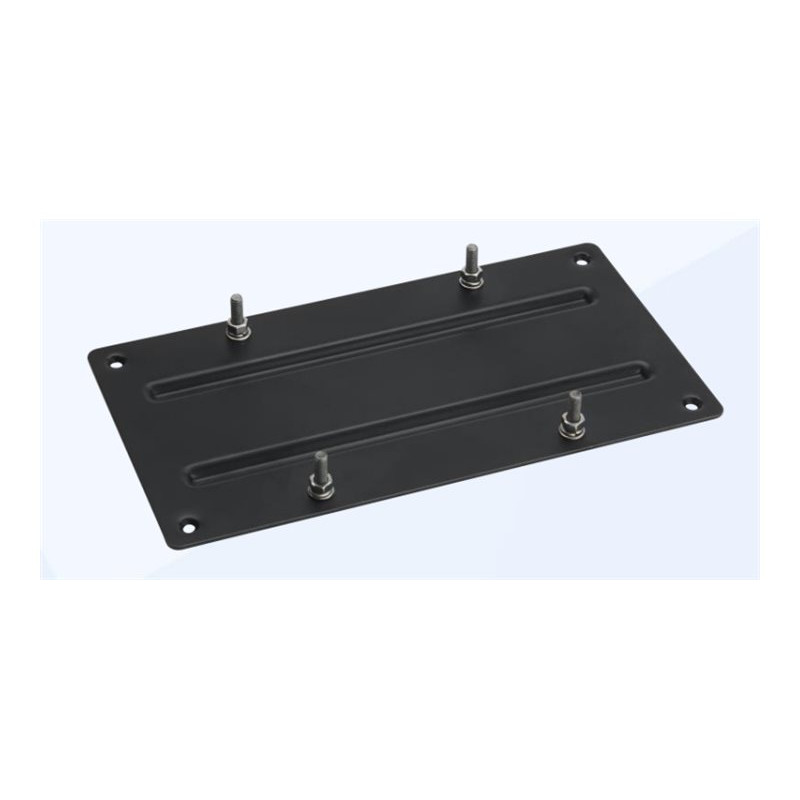

Mounting a display with a 200x100mm VESA pattern onto a 100x100mm mount can be a frustrating dead end. The ZEBRA ADP-200100MM-01 Heavy Duty VESA Adaptor Plate bridges that gap with a solid steel plate that converts your existing 100x100mm VESA mount to accept 200x100mm displays. No need to replace your mount or compromise on positioning.

Who is it for

This adaptor plate is ideal for AV installers, IT technicians, and home users who need to mount monitors, TVs, or displays with a 200x100mm VESA pattern onto a 100x100mm mount. It is particularly useful in offices, classrooms, retail environments, and home theaters where upgrading a display without changing the mount is necessary.

Main features

• Converts VESA 100x100mm mount to VESA 200x100mm display pattern
• Heavy-duty steel construction with powder-coated finish for durability
• Supports up to 30 kg (66 lbs), suitable for most monitors and small TVs
• Reversible orientation: supports 100x200mm or 200x100mm output patterns
• Corrosion-resistant black finish blends with most mounts
• Solid plate design ensures stable and secure mounting

Specifications

• Input VESA standard: MIS-D 100x100mm
• Output VESA standard: MIS-F 200x100mm
• Material: Heavy-duty steel
• Finish: Powder coated
• Colour: Black
• Plate dimensions (L x W): 200mm x 100mm
• Plate thickness: 3mm
• Maximum load capacity: 30 kg (66 lbs)
• Mounting hardware: Not included
• Installation type: Screw-on
• Orientation: Reversible (supports 100x200mm or 200x100mm output)
• Number of input mounting holes: 4
• Number of output mounting holes: 4

Tips

Before installation, verify that your mount can support the combined weight of the adaptor plate and the display. Use appropriate screws and washers (not included) to ensure a secure fit. For best stability, tighten all screws evenly and check periodically.
