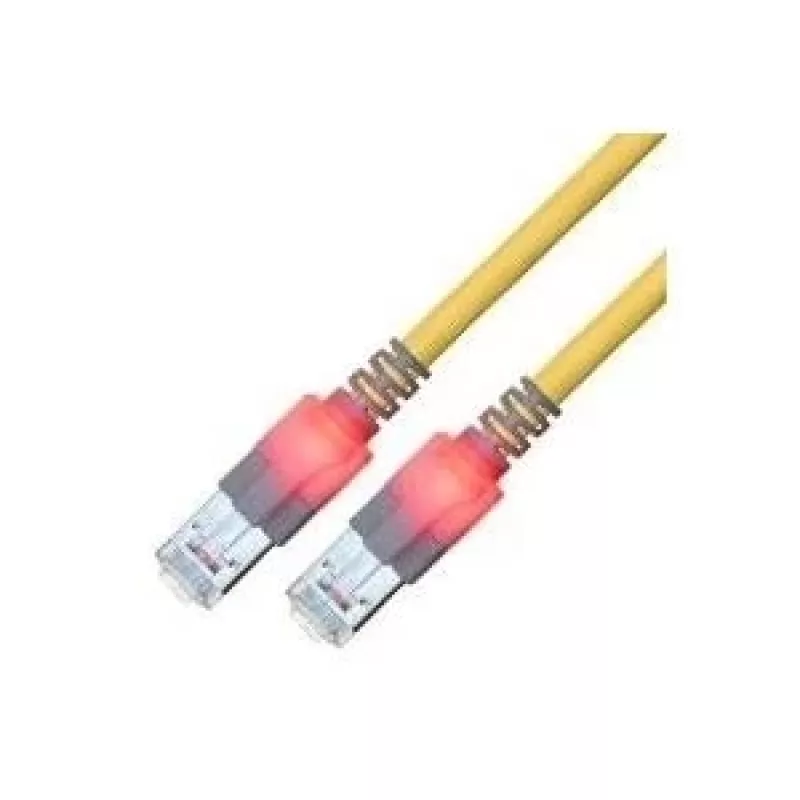

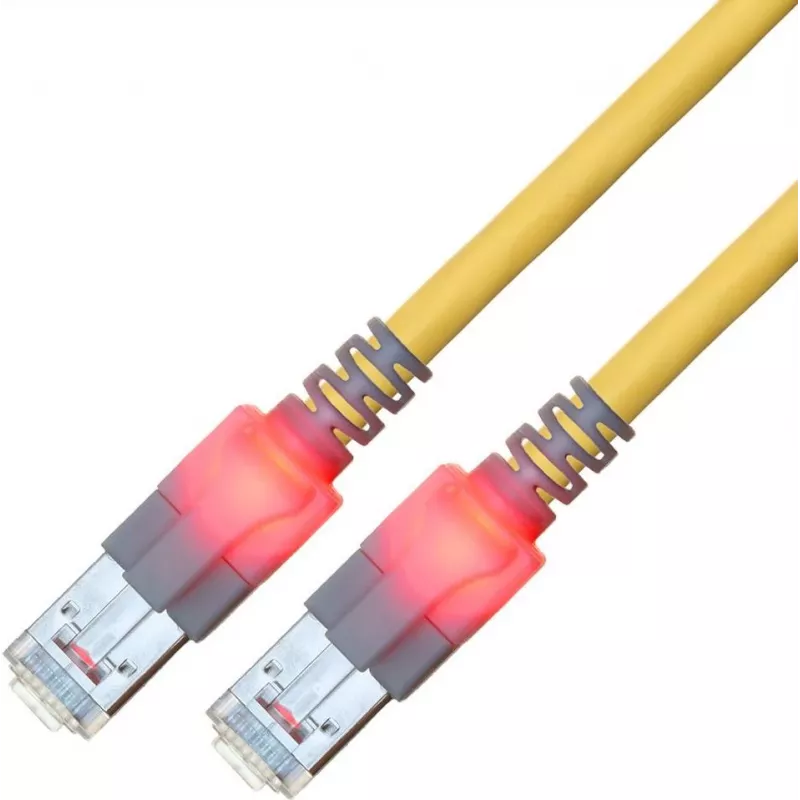

ZVK GMBH Easylan DualBoot LED-patchkaapeli RJ45 S/FTP Cat.6 (Class E), saCon-liittimellä, LSOH, keltainen, 25 m CS1OYCDCD0250

Identifying the right cable in a dense patch panel or tracing a connection across a server room can be time-consuming and error-prone. The ZVK GMBH Easylan DualBoot LED Patch Cable solves this with a built-in LED indicator and a snagless DualBoot design that protects the locking tab while making links easy to spot at a glance.

Who is it for

Network administrators, data center technicians, and IT professionals who need reliable Cat.6 connectivity with visual identification for faster troubleshooting and cable management.

Main features

• 25 m yellow S/FTP Cat.6 patch cable for 10 Gigabit Ethernet up to 55 m and 1 Gigabit Ethernet up to 100 m
• saCon connectors with DualBoot snagless design and LED indicator for link status and cable identification
• LSOH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces
• 26 AWG copper conductors, 250 MHz bandwidth, TIA/EIA-568B wiring, 100 Ohm impedance
• PoE compatible for power over Ethernet applications

Specifications

• Cable length: 25 m
• Cable standard: Cat.6 (Class E)
• Cable shielding: S/FTP
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: 1 & 10 Gbps
• Jacket material: LSOH
• Colour: Yellow
• Conductor gauge: 26 AWG
• Bandwidth: 250 MHz
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• PoE support: PoE Compatible

Tips

Use the LED indicator to quickly locate both ends of a cable run in crowded racks. The snagless DualBoot protects the connector clip when pulling cables through cable management arms.
