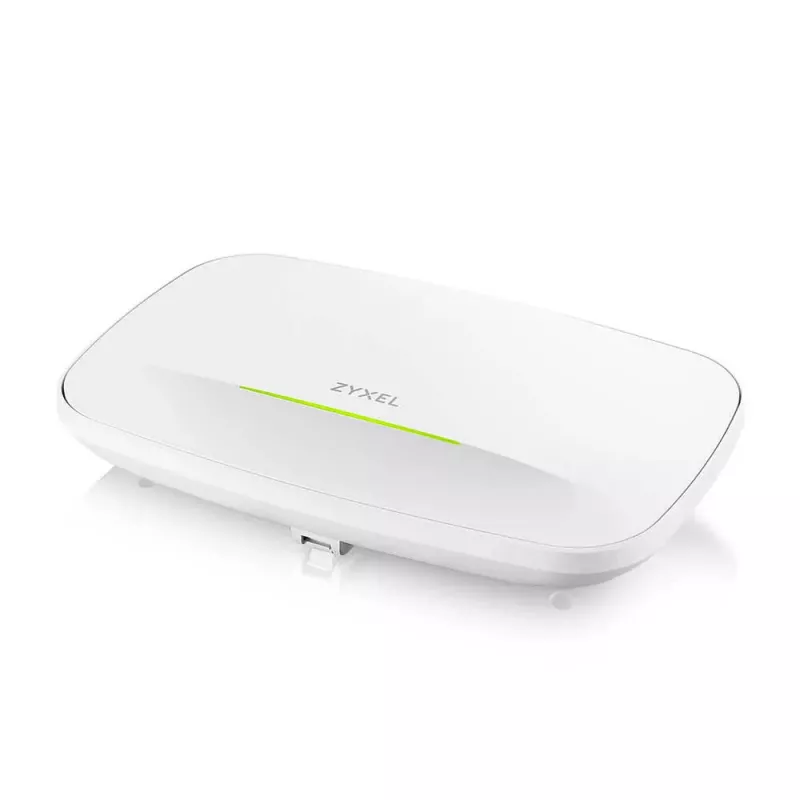

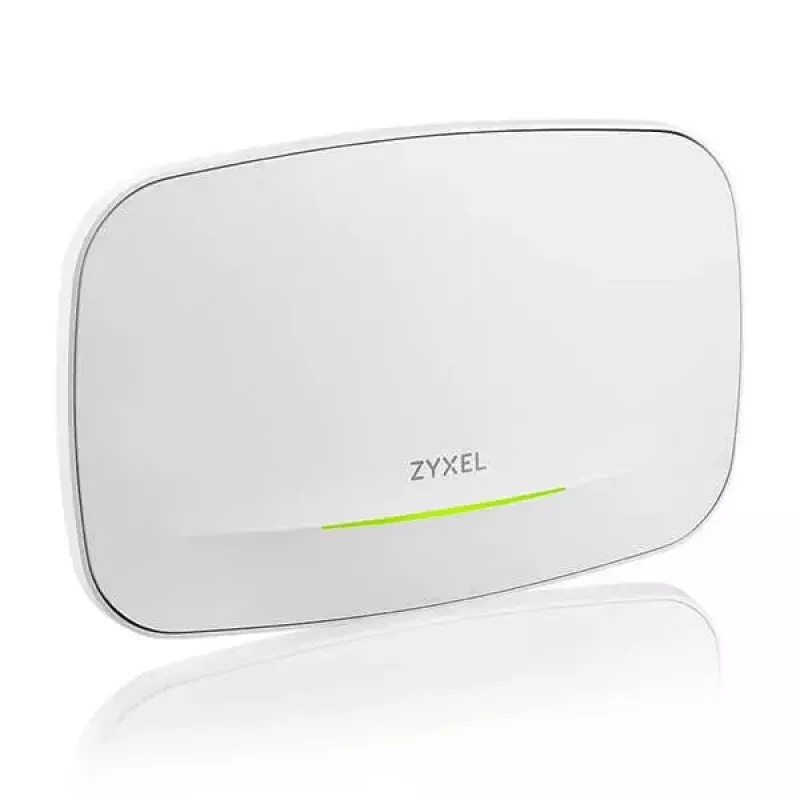

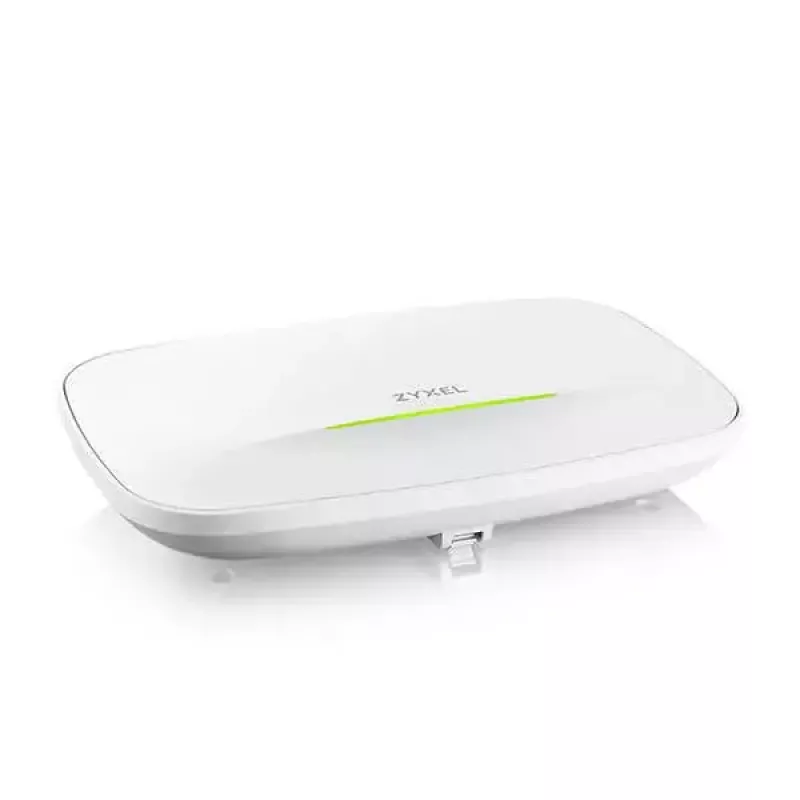

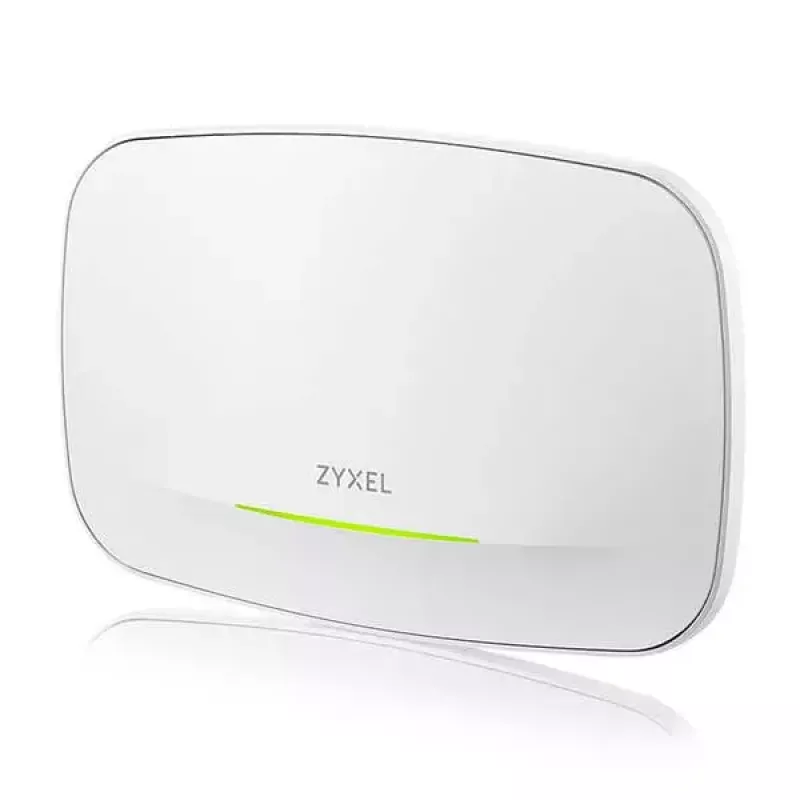

Zyxel NWA110BE 5764 Mbit/s valkoinen Power over Ethernet (PoE)

The Zyxel NWA110BE is a high-performance access point that brings WiFi 7 capabilities to small and home businesses. It features a BandFlex dual-radio design (2.4 GHz: 2x2:2; 5/6 GHz: 4x4:2), support for 2.4/5/6 GHz bands, and PoE for simplified installation. With theoretical wireless throughput up to 6.5 Gbps and enhanced RF filtering to reduce inter-band and cellular interference, the NWA110BE is designed to extend coverage and lower latency for real-time applications while remaining compatible with existing 5 GHz deployments.

Advantages

The access point delivers very high wireless speeds (up to 6.5 Gbps theoretical), extended coverage through additional antennas in the 5/6 GHz band, and a BandFlex design that lets administrators configure the second radio for either 5 GHz or 6 GHz. Advanced RF filters limit interference between 5 GHz and 6 GHz and include a 4G/5G interference filter for better coexistence with cellular signals. NebulaFlex support enables flexible management either as a standalone device or via Nebula cloud, while PoE simplifies installation without extra power cabling.

Suitable for

• Small offices and home businesses requiring high-throughput wireless connectivity
• Environments that need extended 5 GHz/6 GHz coverage and lower latency for real-time applications
• Deployments where flexible management (standalone or Nebula cloud) and simple PoE installation are desired

Key specifications

• Model: Zyxel NWA110BE (MPN: NWA110BE-EU0101F, EAN: 4718937638734)
• Wireless bands: 2.4 GHz / 5 GHz / 6 GHz
• Radio configuration: 2.4 GHz: 2x2:2; 5/6 GHz: 4x4:2 (BandFlex)
• Maximum wireless data rate: up to 6.5 Gbps (theoretical)
• Declared maximum data transfer rate (product data): 5764 Mbit/s

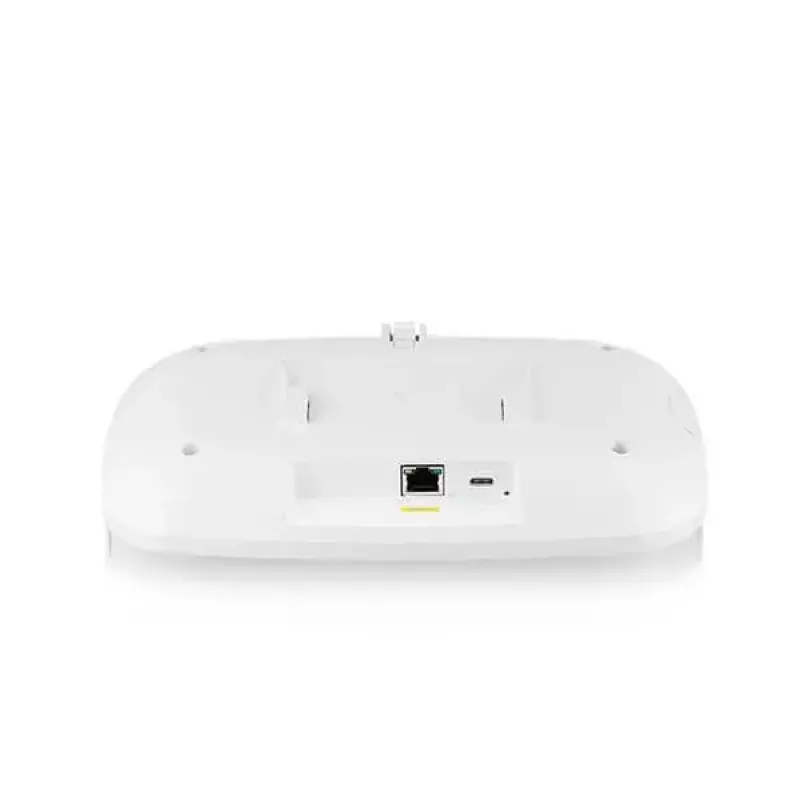

• Ethernet: 1 × RJ-45 port; Ethernet LAN rates: 10/100/1000/2500 Mbit/s
• Security: WEP, WPA, WPA2, WPA3
• Weight: 0.81 kg
• Color: White

How to use

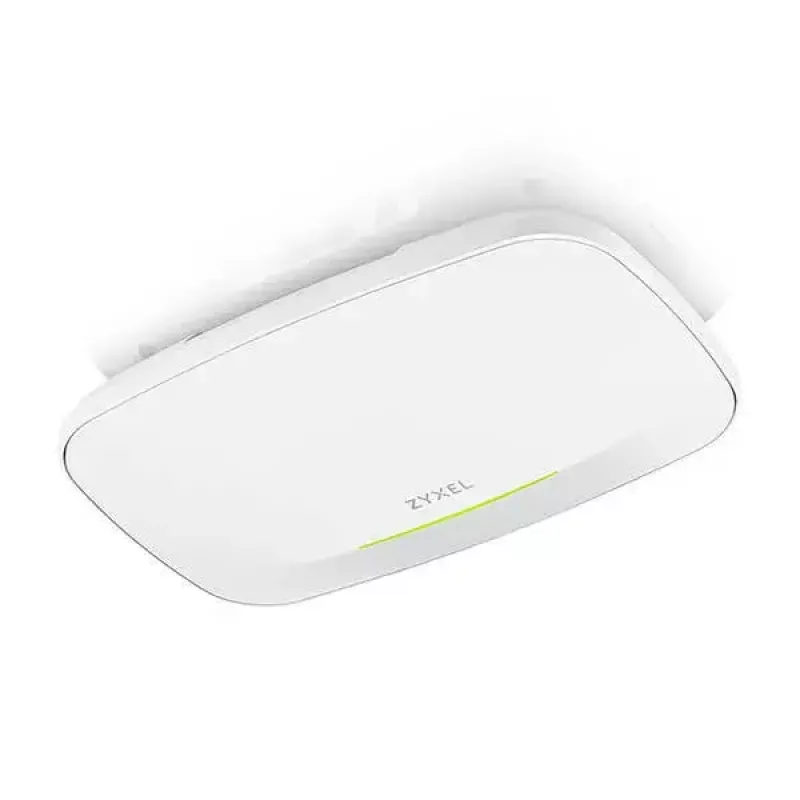

Mount the access point in a central location for best coverage and connect it to a PoE-capable switch or injector using the RJ-45 port. Use the Nebula mobile app or web interface to perform initial setup; the app includes a step-by-step wizard to guide through network configuration, SSID setup, and security settings. Choose the BandFlex configuration to select whether the second radio operates on 5 GHz or 6 GHz according to your deployment plan. Optionally register the device to Nebula cloud to enable monitoring, firmware management, and advanced features such as WiFi Aid and Wireless Health.

Recommendations

Place the access point away from large metal objects and explicit sources of interference, use Nebula monitoring to identify coverage gaps, and pair the NWA110BE with a compatible multi-gig switch (for example an XMG1915 series) to achieve the highest aggregated throughput without rewiring existing infrastructure.
