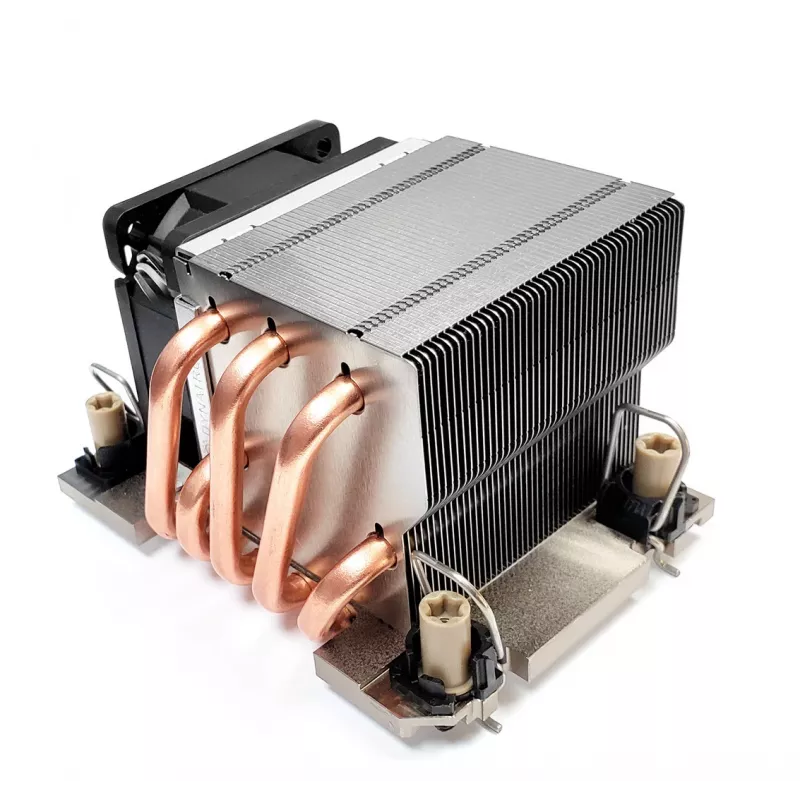

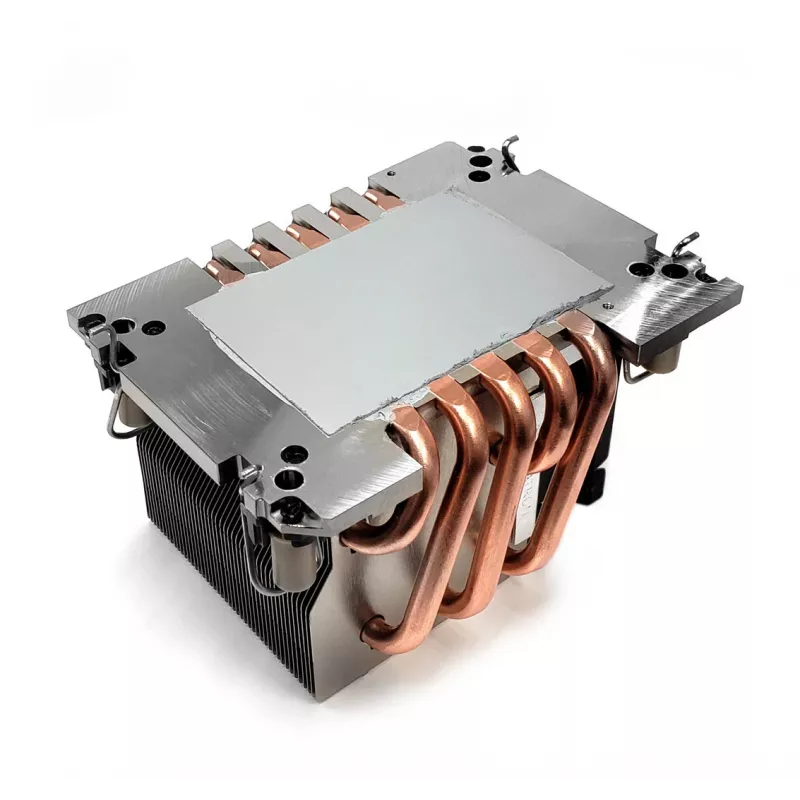

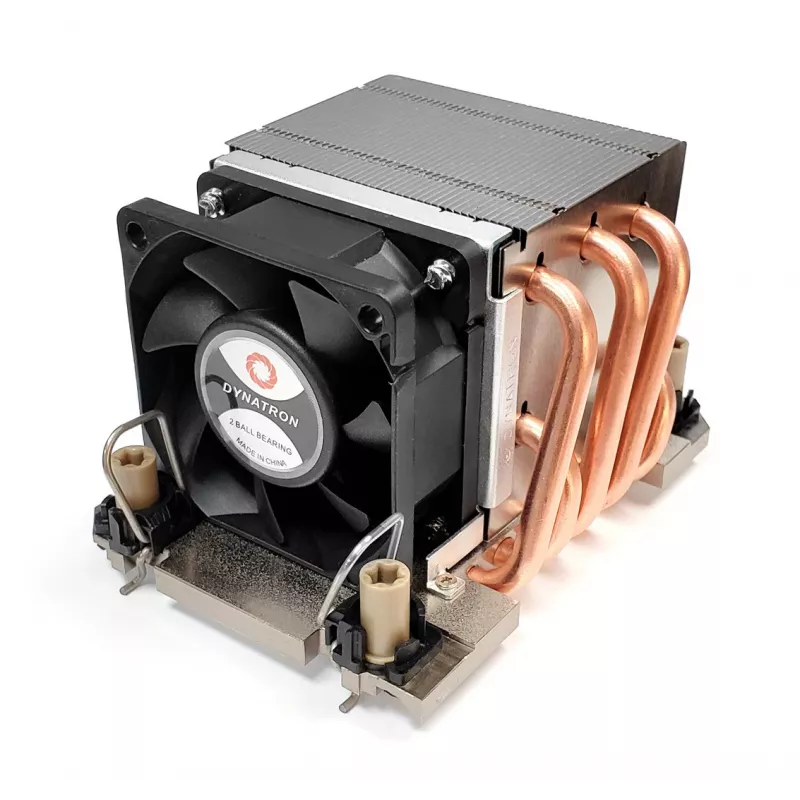

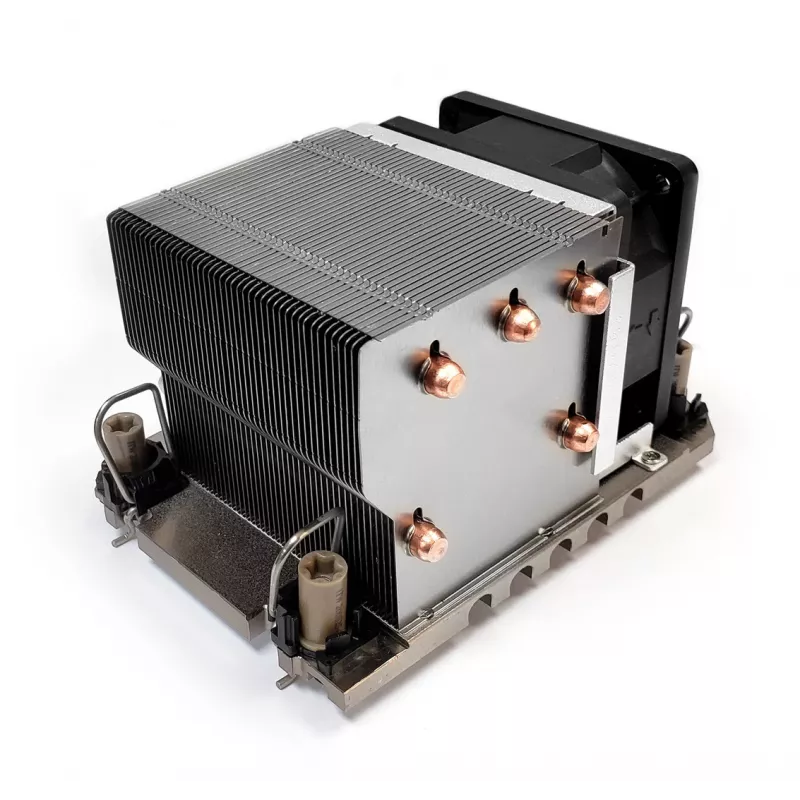

Dynatron CPU-jäähdytin 4189 2HE (270W)

Engineered for high-density 2U rackmount servers, this active CPU cooler delivers exceptional thermal management for Intel Xeon Scalable processors up to 270W TDP. Its copper base and aluminum fins ensure rapid heat dissipation, while the PWM-controlled dual ball bearing fan provides precise cooling from 1000 to 4500 RPM.

Advantages

The Dynatron N11 combines robust construction with intelligent fan control. The copper base maximizes heat transfer from the CPU, and the aluminum fin stack offers a large surface area for airflow. Dual ball bearings extend fan lifespan, and PWM support allows the motherboard to adjust fan speed based on load, balancing cooling performance and acoustics.

Suitable for

• 2U rackmount servers and workstations
• Intel Xeon Scalable 3rd Gen (Ice Lake-SP) processors
• Systems requiring reliable cooling for up to 270W TDP
• Environments where space is limited but thermal demands are high

Key specifications

• Socket compatibility: Intel LGA4189
• Cooler type: Active air cooler
• Fan dimensions: 92 x 92 x 25 mm
• Fan speed: 1000 - 4500 RPM (PWM)
• Airflow: 16.2 - 73.0 CFM
• Noise level: 17.0 - 48.0 dBA
• Bearing type: Dual ball bearing
• Power connector: 4-pin PWM
• Rated voltage: 12V DC
• Heatsink material: Copper base, aluminum fins

Recommendations

For optimal performance, ensure proper chassis airflow and use a high-quality thermal interface material. This cooler is ideal for server builds where reliability and consistent thermal performance are critical.
