2-power 2P-01AW430 - 39,6 cm (15,6") - Full HD

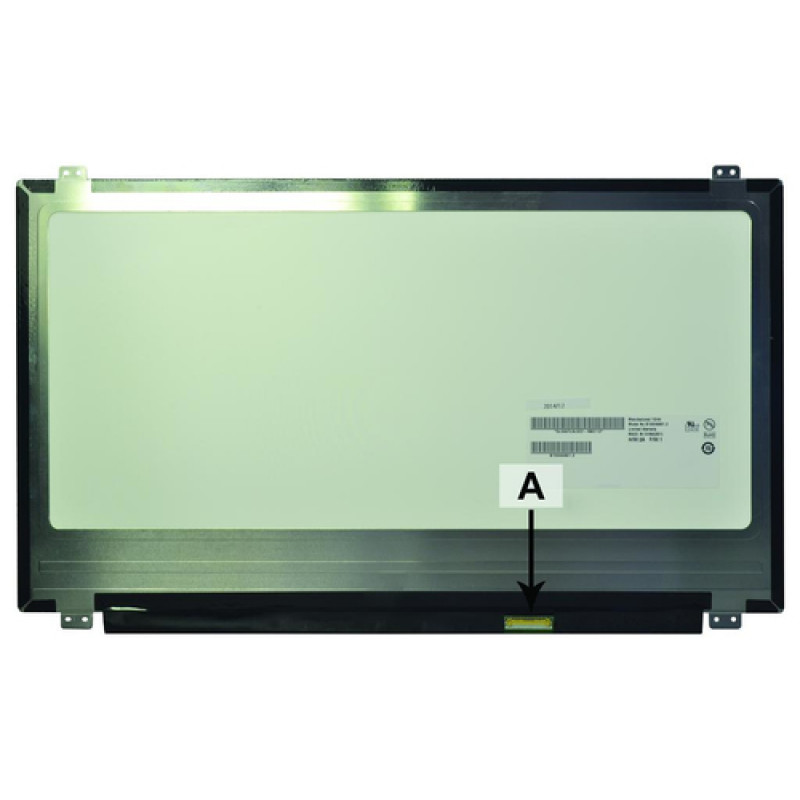

A technician replaces a cracked screen on a customer's laptop, and within minutes the device boots to a crisp, vibrant 15.6-inch Full HD display. The 2-POWER 2P-01AW430 panel makes that repair straightforward: it's a bare LCD panel with a 30-pin eDP connector, ready to fit compatible laptops. No bezel, no mounting brackets—just the screen itself, giving you the flexibility to reuse existing housing or build a custom display solution.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS (In-Plane Switching) with LED backlight
• Surface: Matte (anti-glare)
• Refresh rate: 60 Hz
• Brightness: 250 cd/m²
• Response time: 8 ms
• Color gamut: 45% NTSC
• Viewing angles: 170° horizontal, 170° vertical
• Connector: 30-pin eDP (Embedded DisplayPort)
• Touchscreen: No
• Frame/bezel included: No (panel only)

Why choose it

This panel uses IPS technology, which means colors stay accurate even when viewed from sharp angles—important for collaborative work or presentations. The matte finish reduces glare from overhead lights or windows, making it comfortable for long hours of use. With Full HD resolution, text is sharp and images are detailed, whether you're editing documents, browsing the web, or watching videos. The 30-pin eDP connector is a common standard, simplifying installation in many laptop models.

Ideal use cases

• Laptop screen replacement for technicians and repair shops
• DIY projects requiring a high-quality 15.6-inch display
• Upgrading an older laptop to a brighter, more colorful IPS screen
• Building custom monitors or portable displays with a compatible controller

Good to know

This is a bare panel without a bezel or mounting frame, so you'll need to transfer those parts from the original screen or source them separately. Ensure your laptop's video cable and connector match the 30-pin eDP interface. Installation requires careful handling—avoid touching the surface and use proper tools to prevent damage. The panel is compatible with a wide range of laptops that use the same connector and mounting dimensions, but always verify your specific model's requirements before ordering.
