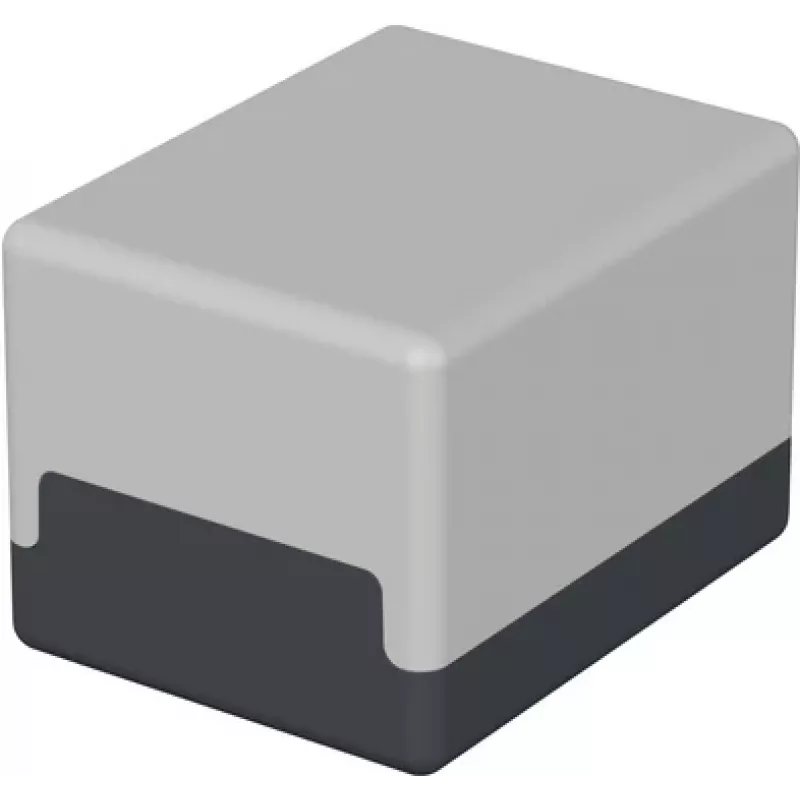

BOPLA E 408 polystyreenikotelo, harmaa, 65 x 50 x 45 mm, IP40, ruuviliitos

With an IP40 rating, the BOPLA E 408 enclosure protects internal components from solid objects larger than 1 mm, making it suitable for indoor electronics. Its compact 65 x 50 x 45 mm size and grey RAL 7035 colour blend into control panels and equipment.

Overview

The E 408 is a universal enclosure from BOPLA's E Series, constructed from polystyrene (PS) with a wall thickness of 2.5 mm. The housing is closed with four lid screws and offers internal screw bosses for mounting PCBs or plates. It is halogen-free and UL 94 HB rated.

What stands out

• IP40 protection against solid objects over 1 mm.
• Lightweight polystyrene construction with 2.5 mm walls.
• Four screw bosses for secure internal mounting.
• Halogen-free and UL 94 HB flammability rated.
• Operating temperature range: -20 to +60 °C.

Technical details

• External dimensions: 65 mm (L) x 50 mm (W) x 45 mm (H).
• Material: Polystyrene (PS).
• Colour: Grey (RAL 7035).
• Lid fixing: Screw connection (4 screws).
• Ingress protection: IP40.
• Flammability rating: UL 94 HB.
• Mounting: Wall mountable via screw bosses.

Our verdict

A practical choice for indoor electronics requiring basic protection and easy assembly, the E 408 offers reliable performance in a compact form factor.
