2-power 2P-2F9KX - 39,6 cm (15,6") - WXGA

A dim, cracked, or dead laptop display can bring your entire workflow to a halt. The 2-POWER 2P-2F9KX replacement panel restores crisp, vibrant visuals to compatible 15.6-inch laptops, eliminating the need for an expensive new machine. This brand-new LCD screen delivers reliable performance for everyday computing, from spreadsheets and documents to streaming and web browsing.

Who is it for

This panel is ideal for DIY repair enthusiasts, IT technicians, and anyone looking to extend the life of their laptop without breaking the bank. If your laptop uses a 15.6-inch WXGA (1366x768) display with a 40-pin LVDS connector and side mounting brackets, this screen is a direct fit.

Main features

• 15.6-inch diagonal (39.6 cm) with WXGA HD resolution (1366 x 768) for clear, detailed images
• LED backlighting provides bright, energy-efficient illumination at 220 cd/m²
• Glossy TN panel with 16:9 aspect ratio, ideal for multimedia and productivity

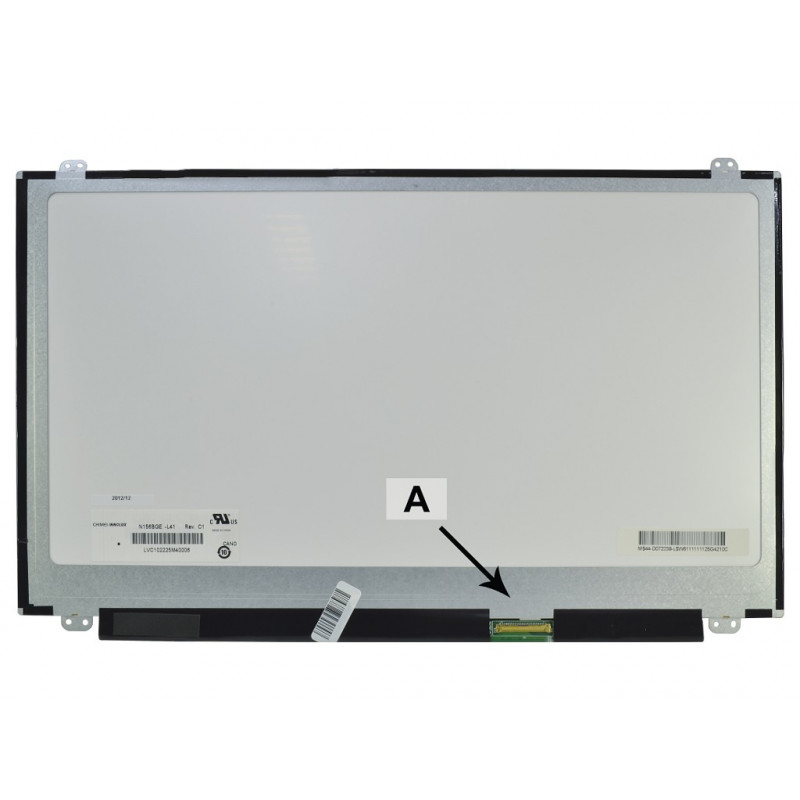

• 40-pin LVDS connector located bottom left for straightforward installation
• Side brackets for secure mounting in compatible laptop chassis
• Fast 8 ms response time reduces motion blur in videos and games
• Wide compatibility with many laptop models requiring this common panel type

Specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Aspect ratio: 16:9
• Display technology: LCD
• Backlight type: LED
• Surface type: Glossy
• Connector type: 40-pin LVDS (bottom left)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m² (nits)
• Panel type: TN (Twisted Nematic)
• Color depth: 6-bit (262,144 colors)
• Response time: 8 ms
• Viewing angle: 45/45/15/35 (L/R/U/D)
• Contrast ratio: 400:1
• Mounting: Side brackets
• Condition: New

Tips

Before ordering, verify your laptop's exact screen size, resolution, connector type, and mounting style. Many 15.6-inch laptops use different connectors (e.g., 30-pin or eDP), so check your existing panel or service manual. Handle the screen by its edges to avoid fingerprints or pressure damage, and disconnect the battery before installation.
