ABUS Security-Center IPCA64581D Thermal Tube bi-spektri 4MPx ulko-verkkokamera

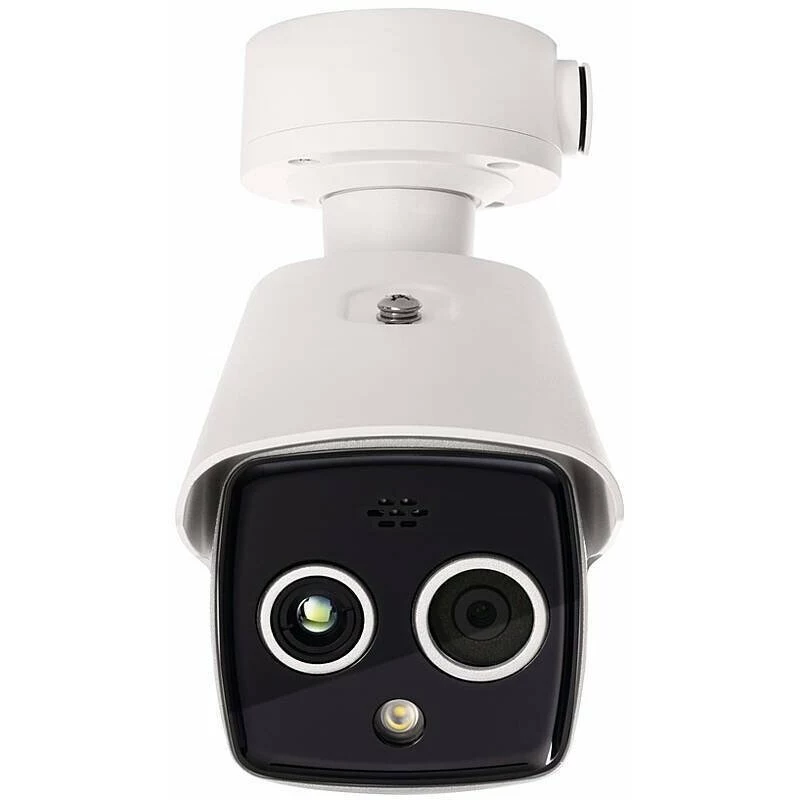

Dual-sensor surveillance camera combining a 4 MP optical module with a 256x192 thermal imager for reliable detection in complete darkness and challenging conditions. The bi-spectral design captures both visual detail and heat signatures, enabling early fire detection and perimeter protection. Housed in an IP67-rated tube enclosure, it withstands harsh weather and operates from -30°C to +60°C. Power over Ethernet simplifies installation with a single cable for data and power.

Advantages

The fixed 4 mm optical lens with F1.0 aperture delivers sharp 2688x1520 video at 30 fps, while the 3.6 mm thermal lens provides a 50° horizontal field of view. Thermal sensitivity below 40 mK NETD ensures even subtle temperature differences are visible. Smart analytics include intrusion detection, line crossing, and temperature exception alerts, reducing false alarms. Local storage on MicroSD up to 256 GB offers redundancy without extra hardware.

Suitable for

• Perimeter protection for industrial sites and warehouses
• Early fire detection in storage areas or server rooms
• Outdoor surveillance in low-light or zero-light environments
• Monitoring critical infrastructure where temperature changes matter

Key specifications

• Optical sensor: 1/2.7" Progressive Scan CMOS, 4 MP (2688 x 1520)
• Thermal sensor: Uncooled VOx microbolometer, 256 x 192, 12 µm pixel pitch
• Optical lens: 4 mm fixed, F1.0, FoV H 84° / V 45°
• Thermal lens: 3.6 mm fixed, F1.0, FoV H 50° / V 37.2°
• IR illumination range: up to 30 m
• Video compression: H.265, H.264, MJPEG
• Network: 1x RJ45 10/100 Mbps Ethernet
• Power: 12 VDC or PoE (802.3af)
• Ingress protection: IP67
• Operating temperature: -30°C to +60°C
• Smart features: intrusion detection, line crossing, fire detection, temperature exception
• Storage: MicroSD card slot, up to 256 GB

Recommendations

For integrators seeking a rugged dual-spectrum camera with built-in analytics, the ABUS IPCA64581D offers a cost-effective solution for 24/7 perimeter security and early warning applications. Pair with an NVR supporting H.265 for efficient storage management.
