ACT 1 metrin LSZH monimuotokuitu 50/125 OM3 kuitu-patchkaapeli duplex LC- ja ST-liittimillä

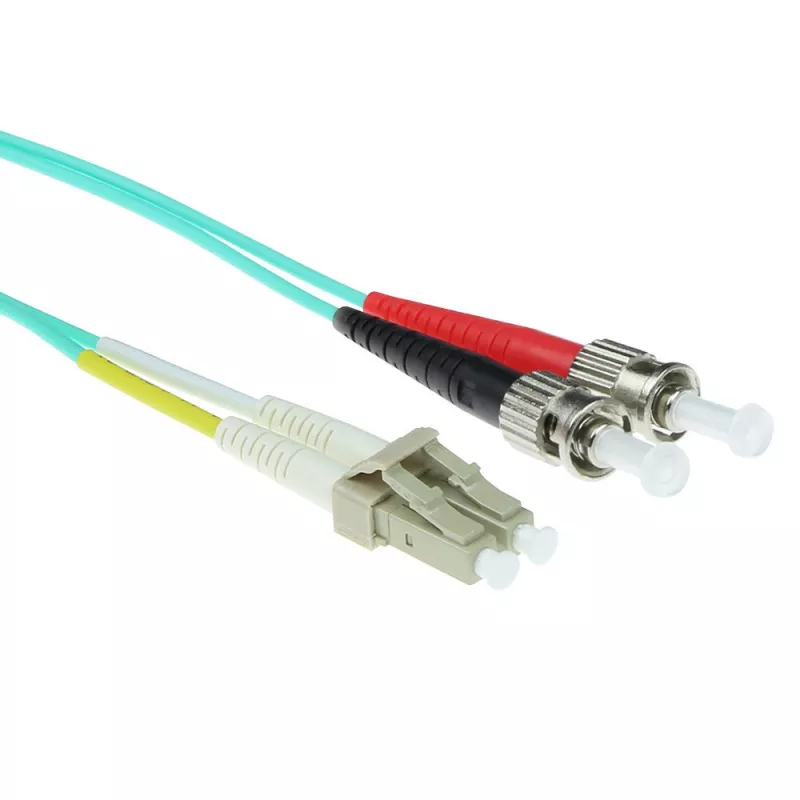

The ACT 1m LSZH Multimode 50/125 OM3 Duplex LC ST fiber patch cable provides full-duplex multimode connectivity with two LC and two ST connectors. Constructed with 50 µm core OM3 grade fiber and LSZH jacket material, this 1-meter cable is intended for high-speed short-range data links in installations where reduced smoke and halogen-free behavior is required. Each cable is end-face inspected and comes with individual test reports for insertion loss (IL) and return loss (RL).

Advantages

Grade A–multimode OM3 fiber and UPC polish ensure consistent optical performance. Laser-precision cleaving and 100% end-face inspection reduce connection issues. The LSZH jacket enhances safety in enclosed or public spaces by limiting smoke and toxic gas release in case of fire. Individual IL and RL test reports provide traceable performance verification for each cable.

Suitable for

Key specifications

How to use

Route the ACT 1m LSZH Multimode OM3 duplex cable between equipment ports ensuring minimal bending and no sharp kinks. Align and insert LC and ST connectors into the corresponding transceiver or patch panel ports until secure. Verify link status on connected devices and, if required, compare measured insertion loss and return loss against the supplied test report to confirm performance.

Recommendations

Avoid bending below the manufacturer’s minimum bend radius, keep connector end-faces clean using appropriate fiber cleaning tools, and store unused connectors with dust caps to maintain UPC-polished end-face quality and to ensure the IL/RL performance reported on the individual test certificate.
