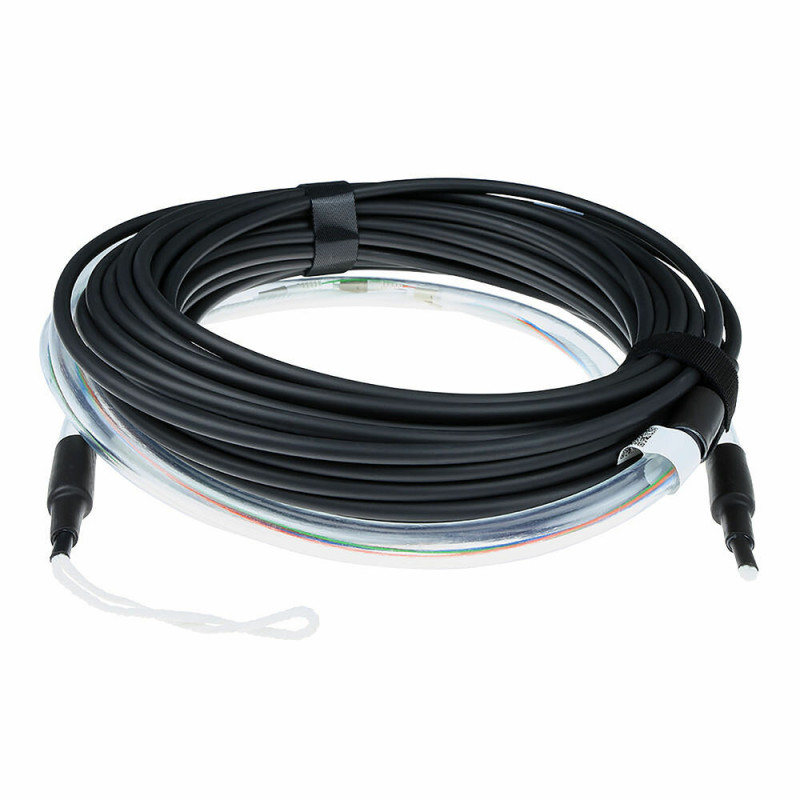

ACT 10m Singlemode 9/125 OS2 sisä-/ulkokaapeli 24 kuitua LC-liittimillä (RL4401)

High-density fiber optic installations often require a reliable, pre-terminated cable that can handle both indoor and outdoor environments without compromising signal integrity. The ACT RL4401 delivers a 10-meter singlemode OS2 cable with 24 fibers, terminated with LC connectors on both ends, providing a plug-and-play solution for data centers, campus networks, and long-distance backbone links.

Who is it for

Network engineers and installers who need a durable, high-performance fiber trunk for connecting switches, patch panels, or optical distribution frames in mixed indoor/outdoor settings. It is ideal for projects where space is limited and low insertion loss is critical.

Main features

• 24 singlemode fibers (9/125 µm, OS2) compliant with ITU-T G.652.D for low attenuation over long distances.
• Pre-terminated with LC/UPC connectors on both ends, each fiber individually terminated for quick deployment.
• Indoor/outdoor rated LSZH jacket in yellow, providing flame retardancy and low smoke emission.
• Maximum insertion loss of 0.3 dB and minimum return loss of 50 dB ensure excellent signal quality.
• Operating temperature range from -20°C to 70°C for versatile environmental use.

Specifications

• Fiber Type: Singlemode OS2, 9/125 µm
• Fiber Count: 24
• Length: 10 m
• Connectors: LC/UPC to LC/UPC, 24 connectors per end
• Jacket Material: LSZH, Yellow
• Cable Diameter: 10.0 mm
• Insertion Loss: < 0.3 dB
• Return Loss: > 50 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -20°C to 70°C

Tips

When routing this cable, avoid tight bends below the minimum bend radius to prevent signal loss. For outdoor runs, ensure proper sealing at entry points to maintain the cable's performance.
