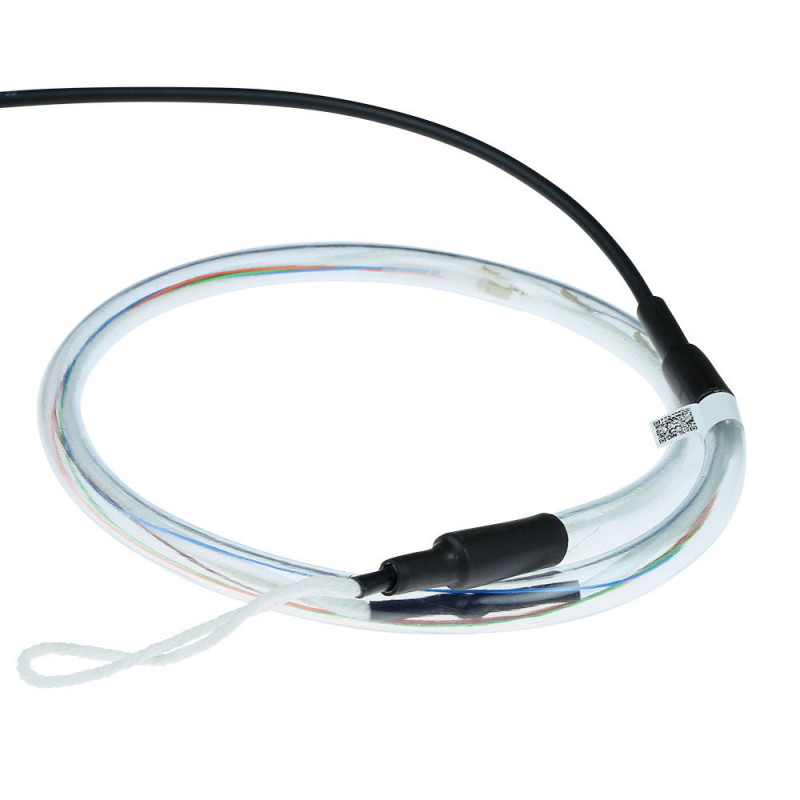

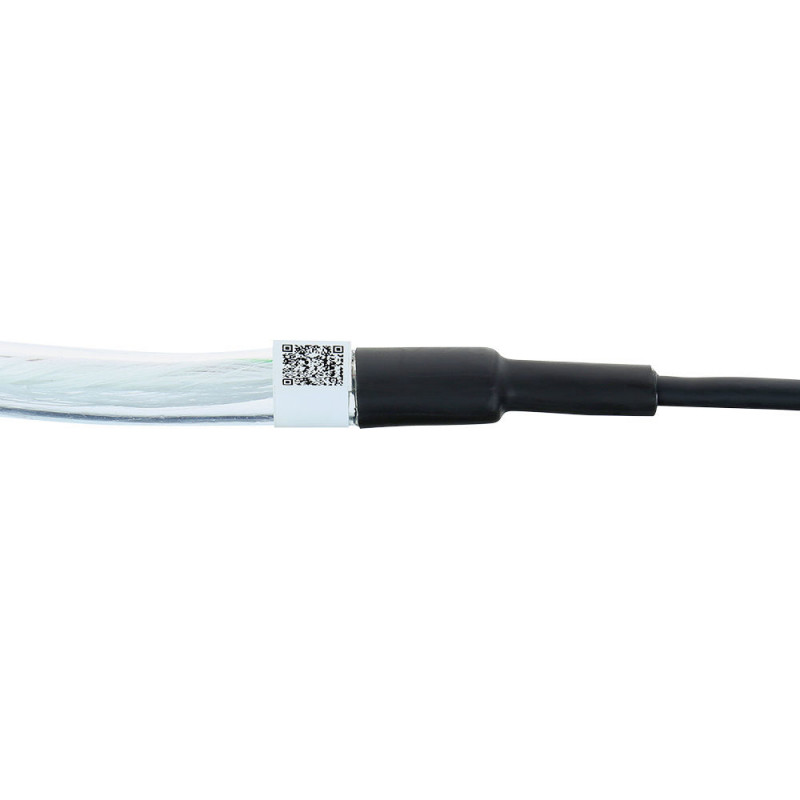

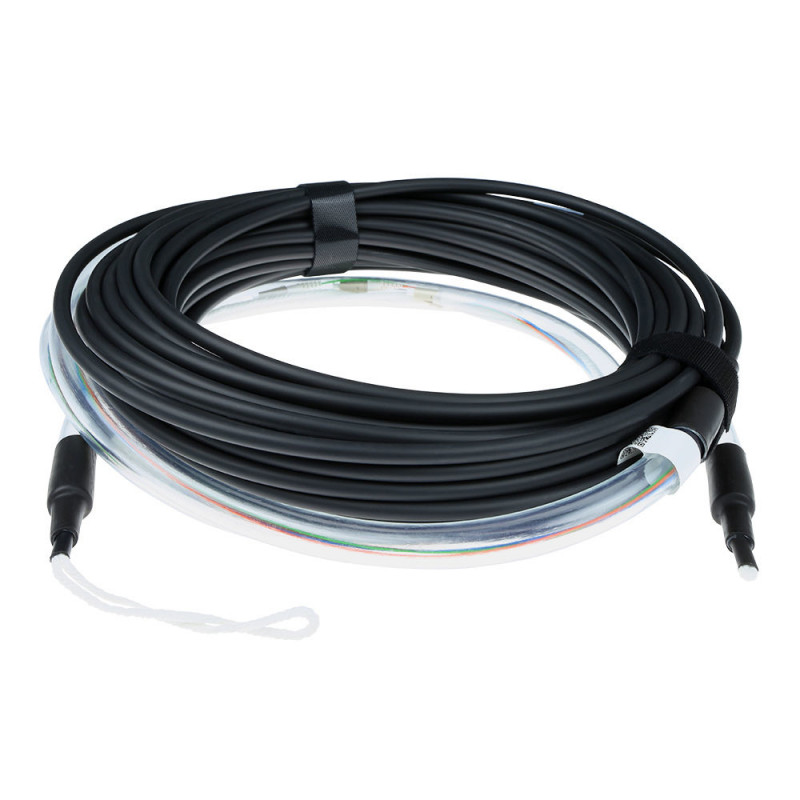

ACT 150 m Singlemode OS2 sisä-/ulkokaapeli, 8 kuitua, 8x LC - 8x LC, 9/125µm, LSZH, keltainen RL4115

Fiber optic patch cable with 8 singlemode OS2 fibers, pre-terminated with 8x LC connectors on each end. Delivers a 150-meter link for indoor and outdoor installations, with a 9µm core and 125µm cladding for low-loss transmission over long distances.

Advantages

OS2 singlemode fiber supports high-bandwidth, long-reach connections. The LSZH jacket reduces smoke and toxic emissions in the event of fire, making it suitable for enclosed spaces. Pre-terminated LC connectors save installation time and ensure consistent optical performance.

Suitable for

• Backbone links between buildings or floors
• Indoor/outdoor runs up to 150 meters
• High-speed data centers and enterprise networks
• Applications requiring low insertion loss and high return loss

Key specifications

• Fiber type: Singlemode OS2, ITU-T G.652.D
• Fiber count: 8
• Core/cladding diameter: 9/125 µm
• Connectors: 8x LC to 8x LC
• Length: 150 m
• Jacket: LSZH, yellow
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB

Recommendations

Verify bend radius during installation to avoid signal degradation. Use dust caps on unused connectors to maintain performance.
