ACT 5 m LSZH yksimuotokuitu 9/125 OS2 kuitu-patchkaapeli duplex LC-liittimillä

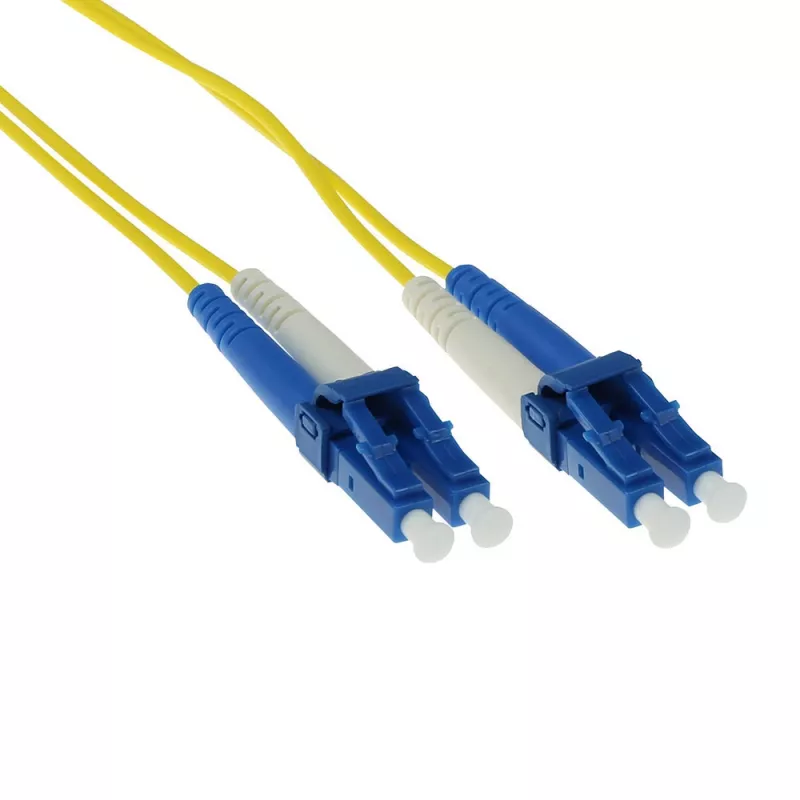

Fiber Patch Cable Duplex LC 5m ACT RL9905 is a 5.00 m singlemode duplex fiber patch cable with LC to LC connectors and 9/125 µm OS1 core. The cable has a yellow PVC sheath and a diameter of 2 x 3 mm, designed for high-quality, low-loss optical connections in network environments.

Advantages

This duplex LC patch cable provides consistent singlemode performance for long-distance signal transmission with minimal attenuation. The compact LC connectors enable high-density installations, while the PVC sheath offers mechanical protection and flexibility. The cable’s 9/125 µm core ensures compatibility with standard singlemode equipment and reliable data transfer rates.

Suitable for

• Data centers and server rooms
• Telecommunications links and long-distance optical connections
• High-speed network backbones and enterprise LANs

Key specifications

• Length: 5.00 m
• Connector type: LC - LC (duplex)
• Core: 9/125 µm, OS1
• Jacket material: PVC
• Colour: Yellow
• Diameter: 2 x 3 mm

How to use

Inspect connectors and ports for cleanliness before connecting. Align the LC connectors with the corresponding LC ports and insert until they click to secure the duplex connection. Route the cable avoiding sharp bends (maintain bend radius recommended by the equipment manufacturer) and protect from excessive tension. For removal, depress the connector latch and pull straight out to avoid damage.

Recommendations

For optimal safety in confined or public spaces, consider using an LSZH jacket version where low smoke and halogen-free materials are required; confirm compatibility with existing singlemode equipment and follow standard fiber handling procedures to maintain performance.
