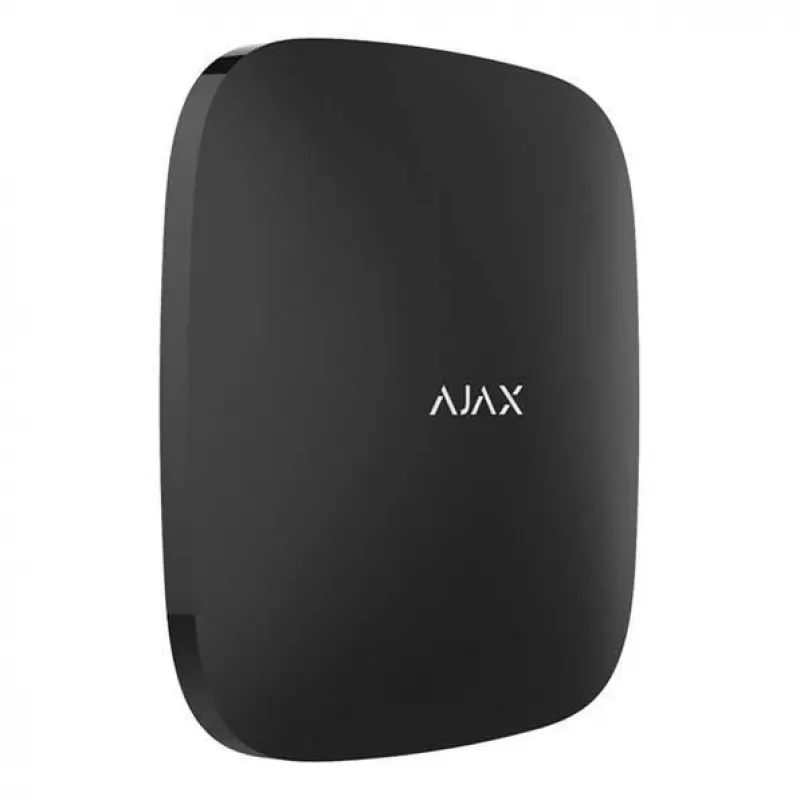

AJAX Control Panel WRL Hub/musta 38236

The AJAX Hub is a smart control panel that maintains communication with all sensors in the system, monitors their operation, processes their data, and immediately alerts about potential intrusion, fire, or flood hazards. It supports both GSM and wired internet connectivity, and includes a backup Li-Ion battery for up to 15 hours of operation during power outages.

Key features

• Supports communication with all system sensors
• Alerts about intrusion, fire, or flood hazards
• GSM and Ethernet connectivity
• Backup Li-Ion battery lasting up to 15 hours
• Jeweller wireless technology
• Up to 100 devices can be assigned
• Automatic and free software updates
• Control via Ajax Security System app

Specifications

• Brand: AJAX
• MPN: 38236
• Product colour: Black
• Dimensions: 162.7 x 162.7 x 35.9 mm
• Weight: 320 g
• Power: 110-250 V AC
• Communication signal power: 25 mW
• Operating temperature: 0°C to +50°C
• Communication: GSM (850/900/1800/1900 MHz), Ethernet
• Communication protocol: Jeweller (868.0-868.6 MHz)
• SIM compatibility: Mini SIM 2G
• Maximum distance between devices and hub: 2000 m (open area)
• Backup battery: Li-Ion 2 Ah (up to 15 hours)
• Smart app: iOS 9 or newer, Android 4.1 or newer
• Video surveillance: video cameras with RTSP
• Number of users: 50
• Maximum number of devices: 100
• Anti-intrusion protection: yes
