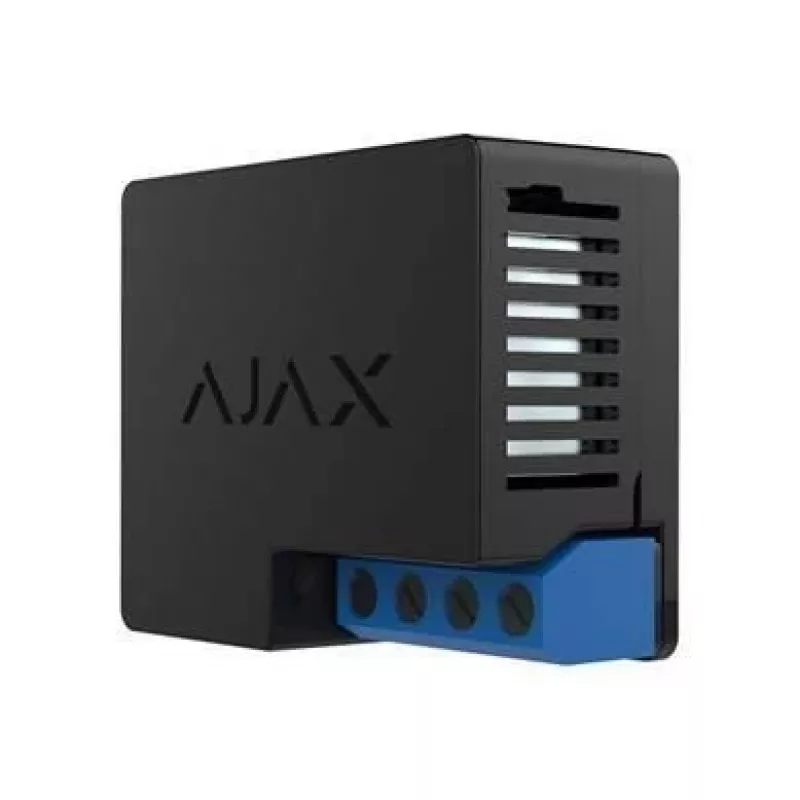

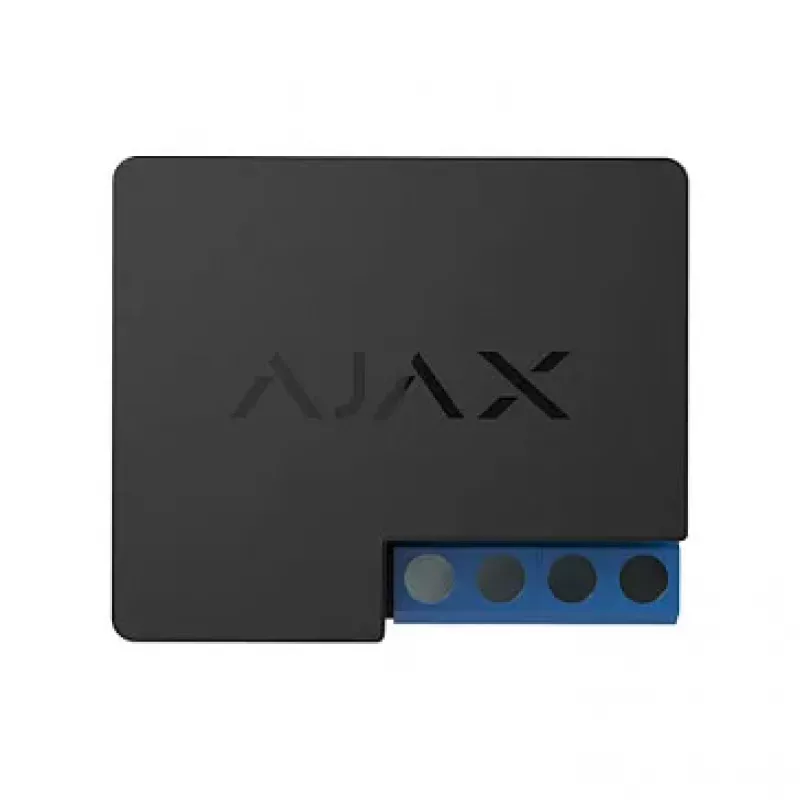

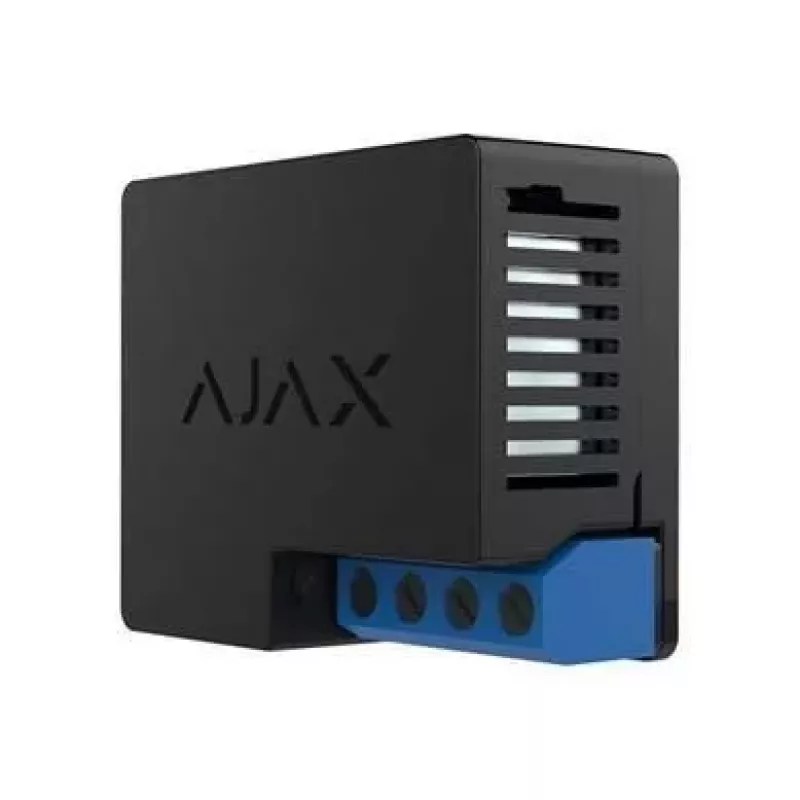

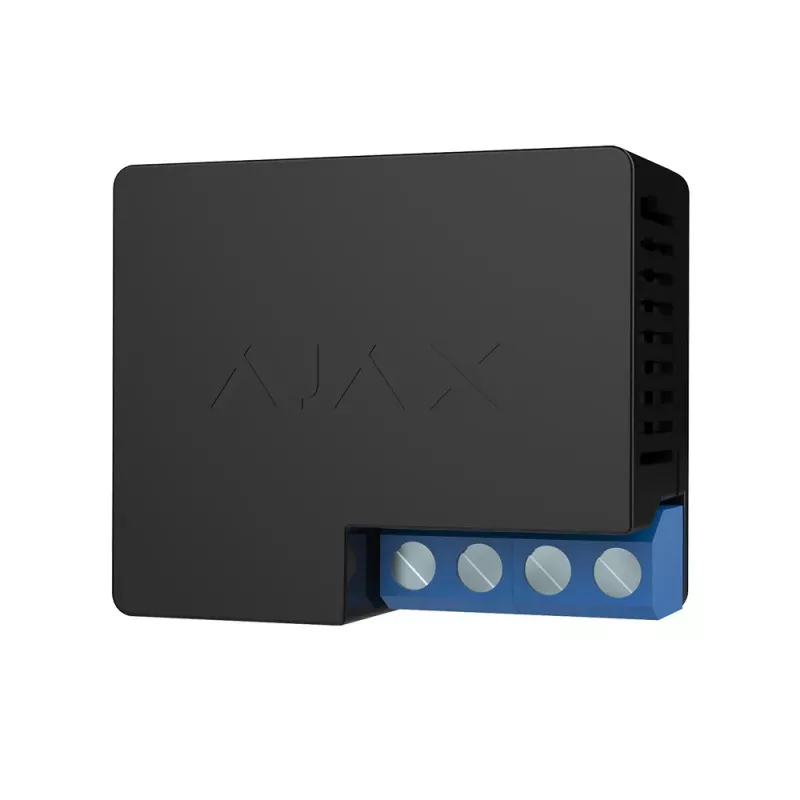

Ajax WallSwitch älyrele seinäkytkin musta

The Ajax WallSwitch is a smart in-wall relay designed for seamless control and monitoring of electrical loads up to 3 kW. It integrates with Ajax security systems via the Jeweller wireless protocol, enabling remote switching, energy monitoring, and automation scenarios through the Ajax mobile app. The bistable relay ensures low power consumption and reliable operation.

Advantages

Energy monitoring with real-time current, voltage, and power consumption data. Overload protection against current, voltage, and temperature extremes. Compact design fits standard European in-wall switch boxes. Over-the-air firmware updates ensure future-proof functionality.

Suitable for

• Controlling lighting, heating, and other resistive or inductive loads
• Integrating with Ajax security systems for automated responses
• Energy management and monitoring in residential and commercial spaces

Key specifications

• Wireless Protocol: Jeweller (868.0-868.6 MHz)
• Power Supply: 110-230 V AC, 50/60 Hz
• Max Load Current: 13 A (resistive), 11 A (inductive)
• Max Load Power: 3 kW (resistive)
• Communication Range: Up to 1000 m (open space)
• Operating Temperature: 0°C to +64°C
• Protection Class: IP20
• Dimensions: 42 x 36 x 20 mm

Recommendations

For optimal performance, use with Ajax Hub, Hub Plus, Hub 2, Hub 2 Plus, or Hub Hybrid. Ensure proper installation by a qualified electrician.
