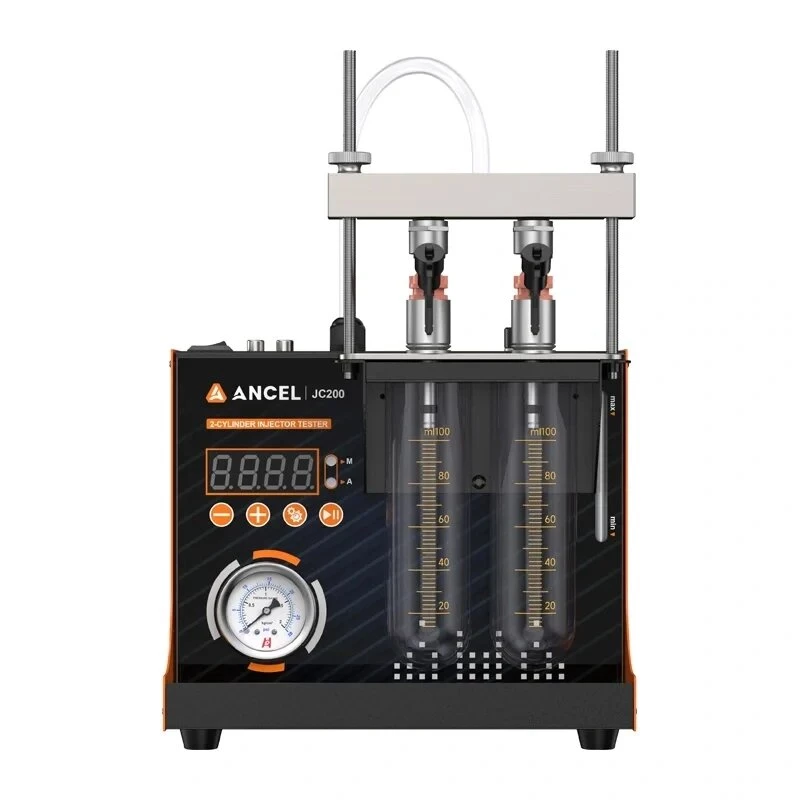

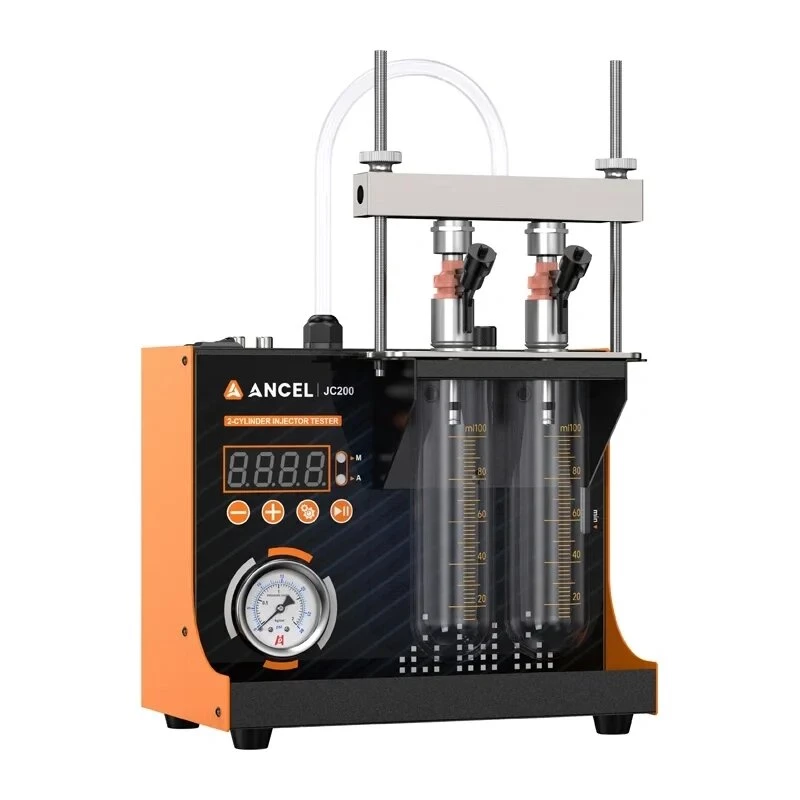

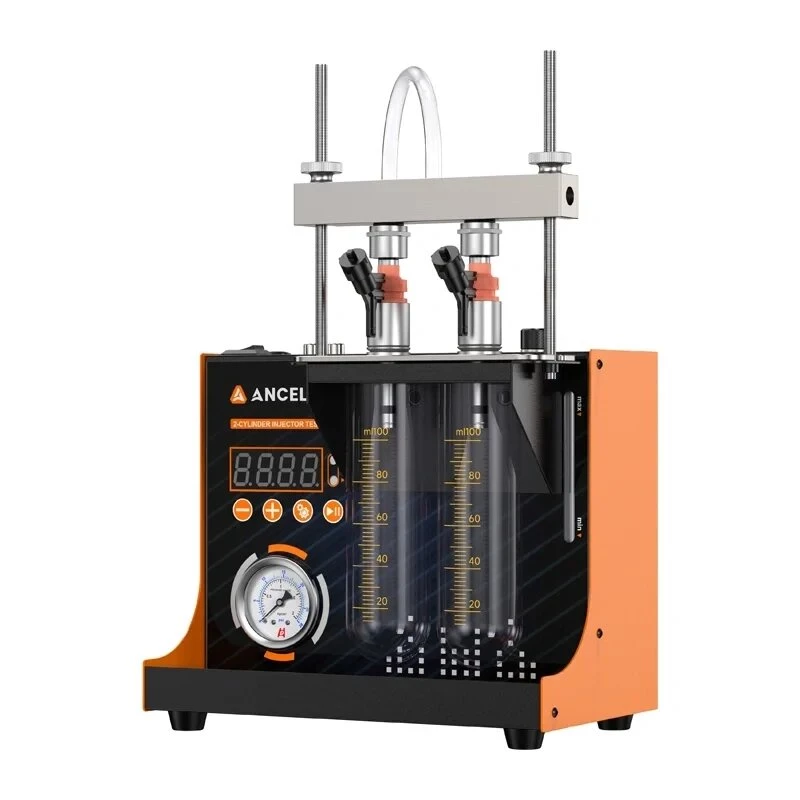

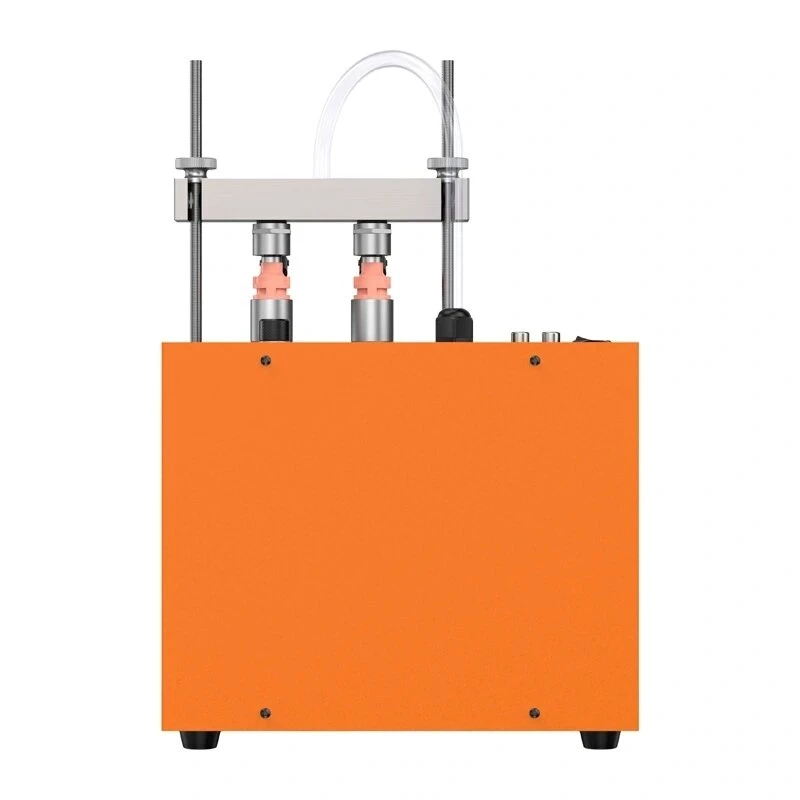

ANCEL JC200 moottoripyörän suuttimenpuhdistusaine

The ANCEL JC200 is a compact device for diagnosing and cleaning motorcycle fuel injectors, compatible with 6V and 12V Top-Feed MPI injectors. It uses microprocessor technology to simulate various engine operating conditions and offers functions such as a uniformity test, leak test, and atomization observation. Powered by a 12 V DC car battery, it features a digital display and a speed range from 100 to 9,900 rpm.

Key features

• Injection uniformity test
• Fuel atomization observation with backlight
• Leak testing under operating pressure
• Injection volume measurement
• Visual fluid level indicator
• Test fluid can be recycled
• Interchangeable composite connectors
• Manual and automatic test modes

Specifications

• Brand: Ancel
• Model: JC200
• Device type: Device for diagnosing and testing motorcycle fuel injectors
• Operating voltage: DC 12 V
• Power supply: 12 V DC car battery, 2 A
• Tank capacity: 150 ml
• Cylinder capacity: 100 ml
• Rotational speed: 100–9,900 rpm (increment: 100 rpm)
• Time: 30–600 s
• Operating pressure: 1.2–1.5 bar (constant)
• Pressure relief: Manual
• Display: Digital screen
• Supported injectors: Motorcycle / 6 V and 12 V Top-Feed MPI
• Functions: Fuel injection volume test, injection uniformity test, atomization test, leak test, manual test, automatic test
• Operating temperature: From -5°C to 50°C
• Relative humidity: <85%
