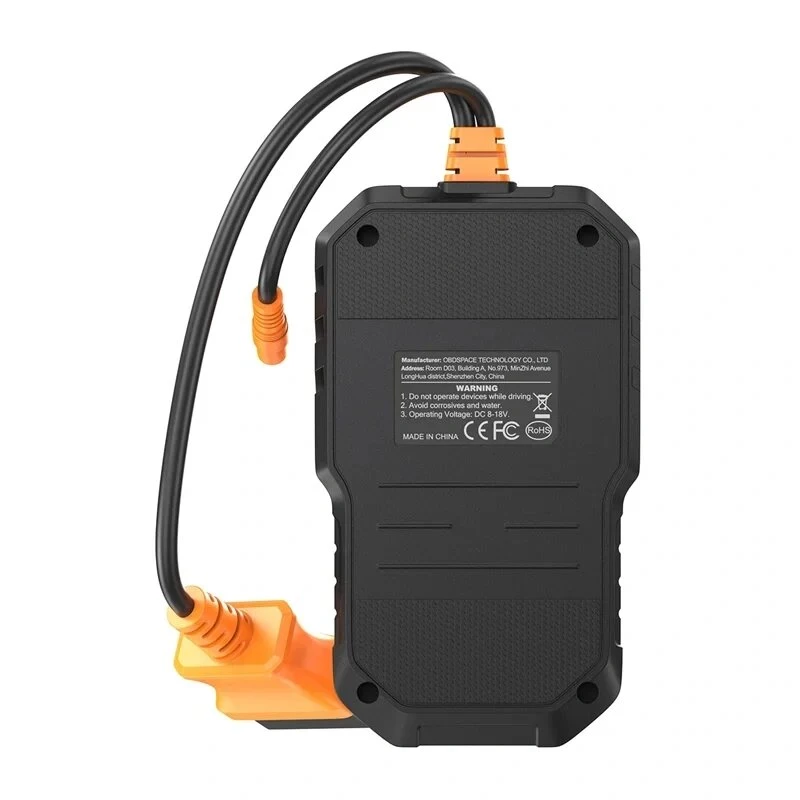

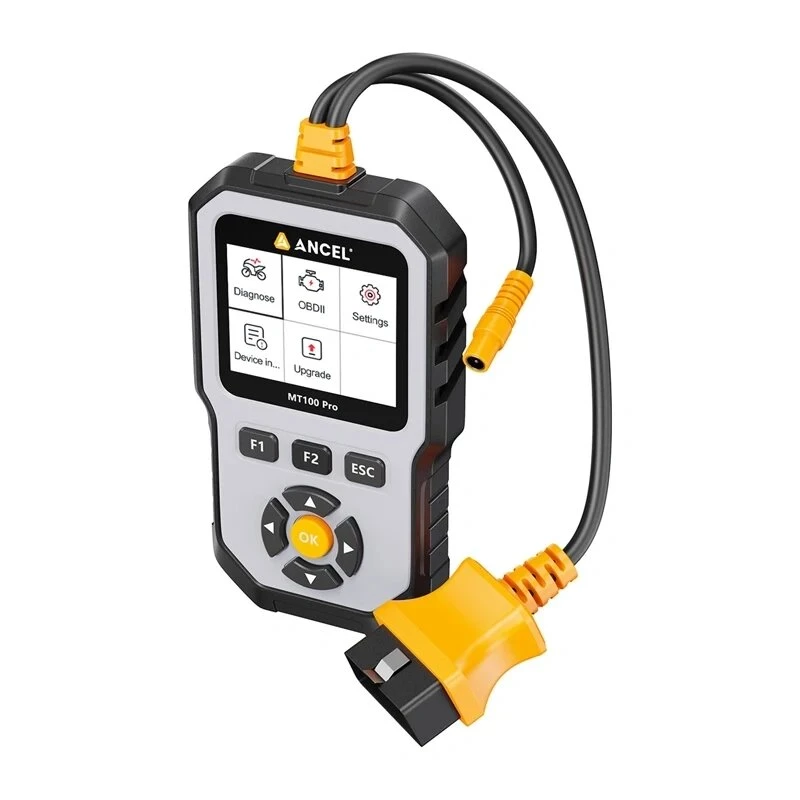

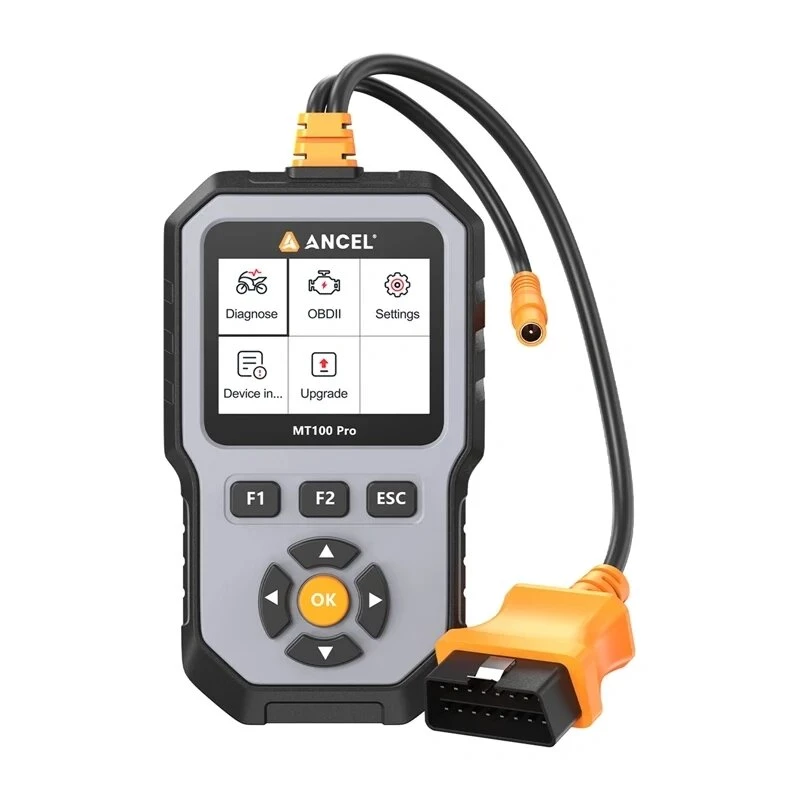

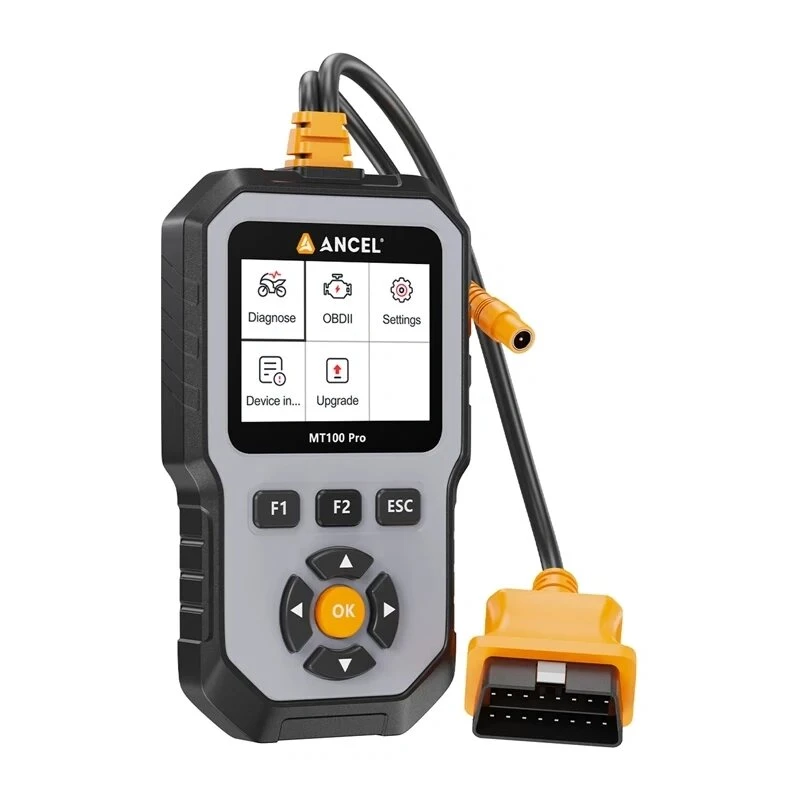

ANCEL MT100 PRO moottoripyörän diagnostiikkalaite

The ANCEL MT100 PRO is a motorcycle diagnostic scanner designed for motorcycles from brands such as Hero, Honda, Kymco, Suzuki, Sym, and Yamaha. It allows you to read and clear engine and ABS fault codes, and also supports OBDII functions for vehicles equipped with the OBDII standard (manufactured since 2000). The device features a 2.8-inch color TFT display, which makes it easy to use.

Key features

• Engine and ABS diagnostics: read and clear fault codes
• OBDII support for vehicles equipped with the OBDII standard (manufactured since 2000)
• Supports all major OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141, KWP2000
• Automatically detects communication protocol and displays available functions
• OBDII functions include: read and clear codes, view data stream, perform status dump, test O2 sensor, monitor on-board systems, test evaporative emission system, view vehicle and software information
• Customizable settings: language, beep tone, units of measurement, background, custom shortcut keys
• Software updates via USB connection to a computer
• 2.8-inch color TFT display
• Function buttons for quick navigation and diagnostic operations

Specifications

• Brand: ANCEL
• Model: MT100 PRO
• Device type: Motorcycle diagnostic scanner
• Display: 2.8" color TFT display
• Power supply voltage: 8–18 V DC
• Operating temperature: 0°C to 60°C
• Storage temperature: –20°C to 70°C
• Supported motorcycle brands: Hero, Honda, Kymco, Suzuki, Sym, Yamaha
• Supported OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141, KWP2000
• Updates: USB
• Languages: German, English, Spanish, French, Portuguese
• Number of buttons: 8
