Antenni DeLOCK 86137

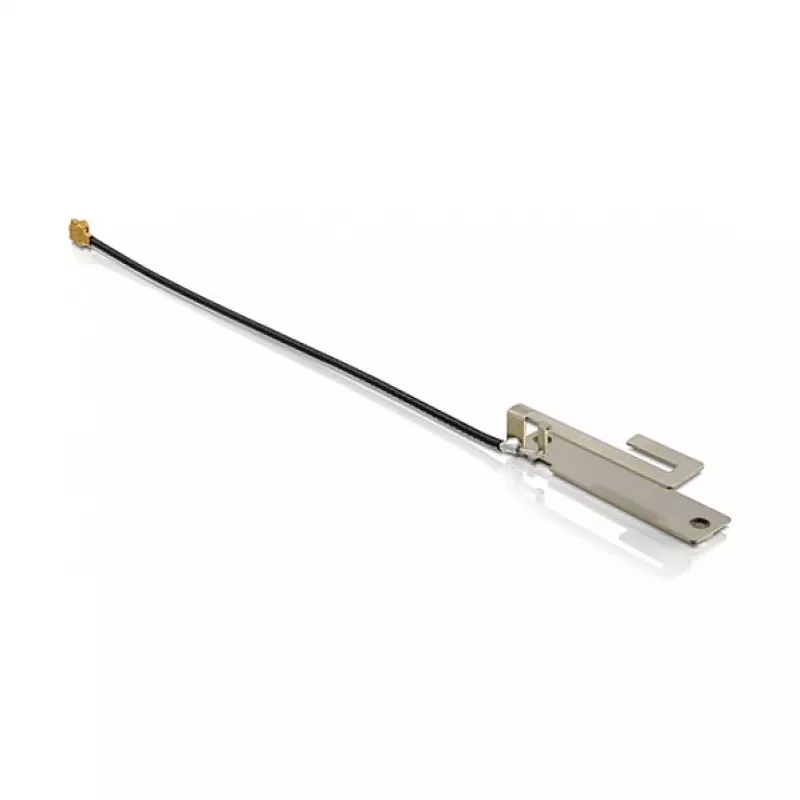

The DeLOCK 86137 network antenna is a compact WLAN antenna designed for devices with an I-PEX interface. It operates in the 2.4–2.5 GHz frequency band with a maximum gain of 3 dBi, 50 Ω impedance and a short 0.08 m cable, making it suitable for improving signal reception in small wireless setups.

Advantages

The antenna's small dimensions (25 × 6 × 6.3 mm) and light weight allow integration into space-constrained devices. Its 3 dBi gain provides modest signal improvement for 2.4 GHz WLAN environments, while the I-PEX connector ensures direct compatibility with many embedded WLAN modules.

Suitable for

• Embedded WLAN modules with I-PEX connector
• Compact wireless devices and routers with limited internal space
• Improving 2.4 GHz signal reception in small installations

Key specifications

• Antenna gain level (max): 3 dBi
• Frequency band: 2.4 - 2.5 GHz
• Impedance: 50 Ω
• Cable length: 0.08 m
• Dimensions: 25 × 6 × 6.3 mm

How to use

Connect the antenna to the WLAN device's I-PEX interface ensuring the connector is aligned and seated gently to avoid damaging the socket. Position the antenna within the device enclosure or on the device surface where it has the least obstruction from metal parts. Verify wireless link quality after installation and adjust placement if needed.

Recommendations

Use this antenna for 2.4 GHz WLAN applications where a compact external or internal antenna with I-PEX connection is required. Avoid bending the short cable sharply and keep the antenna away from large metal surfaces for optimal reception.
