APC InfraStruXure Operations Floor Layout Creation

Managing a data center without a clear visual map is like flying blind—every rack move, power change, or capacity decision becomes a guess. The APC InfraStruXure Operations Floor Layout Creation license turns your infrastructure into an interactive, real-time floor plan, giving you the clarity to plan, monitor, and optimize with confidence. Unlike static spreadsheets or disconnected monitoring tools, this software unifies asset tracking, power, cooling, and environmental data into one intuitive 2D/3D view, so you always know exactly what’s where and how it’s performing.

Highlights

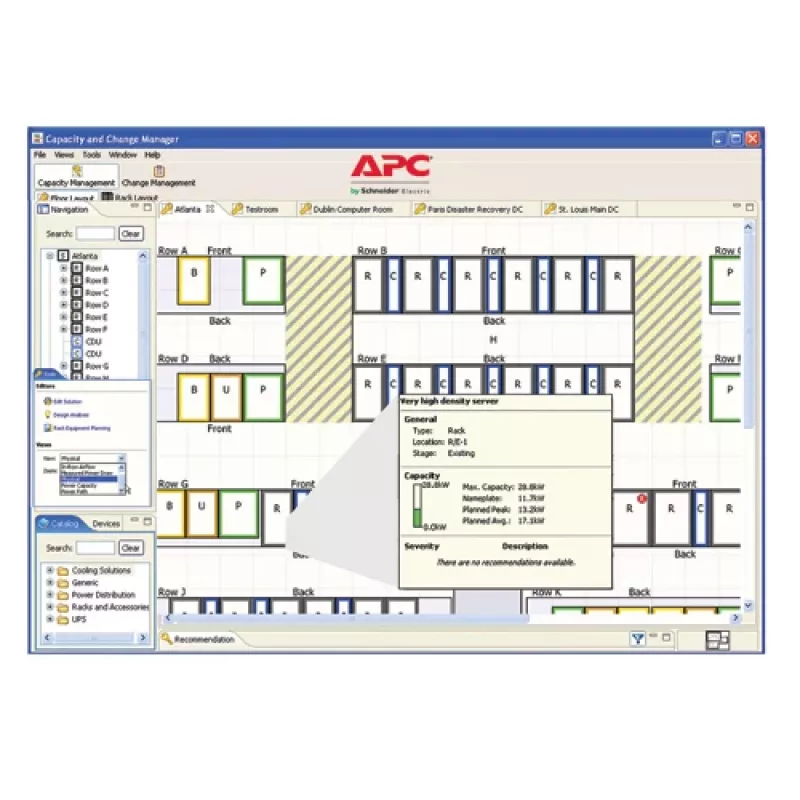

• Visualize your entire data center with 2D/3D floor plans and detailed rack elevations
• Automated asset discovery plus manual entry for complete inventory accuracy
• Real-time monitoring of power, cooling, and environmental conditions
• Configurable alerts for critical events—never miss a threshold breach
• Capacity planning with "what-if" scenarios for future growth
• Vendor-agnostic support: monitors equipment from any manufacturer via SNMP, Modbus, BACnet, and API
• Web-based interface for secure access from anywhere on your network

In daily use

Once deployed on your Windows Server with Microsoft SQL, the software continuously polls up to 100 devices, updating floor layouts and rack elevations in real time. Operators can drill down from a building-level view to a single rack, checking power draw, temperature, and asset details instantly. When a cooling unit fails or a circuit approaches capacity, the system sends an alert, allowing proactive response before downtime occurs. Customizable reports on inventory, capacity, and energy usage help you track PUE and justify infrastructure investments to stakeholders.

Full specifications

• Software type: Data Center Infrastructure Management (DCIM)
• Licensing model: Per-device license
• License quantity: 100 devices
• Key functionality: Floor layout visualization, asset management, capacity planning, power monitoring, environmental monitoring, change management
• Visualization: 2D/3D data center floor plans, rack elevations
• Asset discovery: Automated and manual entry
• Monitoring: Real-time power, cooling, environmental
• Alerting: Configurable critical event notifications
• Reporting: Customizable inventory, capacity, energy usage
• Integration: SNMP, Modbus, BACnet, API
• Deployment: On-premise
• OS support: Windows Server 2008 R2, 2012, 2016
• Database: Microsoft SQL Server
• Interface: Web-based
• Energy management: Power consumption tracking, PUE

Final note

This license is the foundation for a smarter, more resilient data center—turn raw data into actionable floor-level intelligence.
