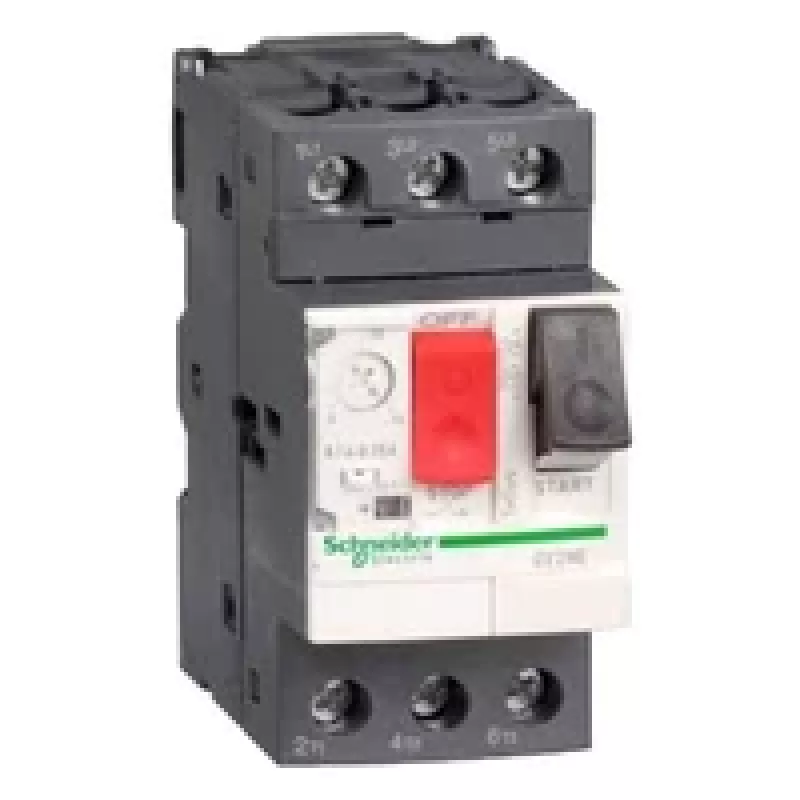

APC Schneider Electric TeSys GV2 moottorinsuojakytkin, 2,5-4 A, 3P, IP20

The APC Schneider Electric TeSys GV2 is a high-performance thermal-magnetic motor protection circuit breaker designed for reliable protection of motors in industrial applications. With a compact design and IP20 protection, it ensures safe operation in control panels and distribution boards.

Advantages

This circuit breaker offers precise thermal protection with an adjustment range of 2.5-4 A and magnetic tripping at 51 A, providing comprehensive motor protection. Its high breaking capacity of 100 kA at 400/415 V AC ensures safety under fault conditions. The rotary knob control and screw clamp terminals facilitate easy installation and operation.

Suitable for

• Motor protection in industrial machinery
• Control panels and distribution boards
• Applications requiring thermal-magnetic protection

Key specifications

• Product Series: TeSys GV2
• Device Application: Motor protection
• Poles Description: 3P
• Thermal Protection Adjustment Range: 2.5-4 A
• Magnetic Tripping Current: 51 A
• Breaking Capacity (Icu) at 400/415V AC: 100 kA
• Rated Operational Voltage (Ue): 690 V AC 50/60 Hz
• Rated Insulation Voltage (Ui): 690 V AC
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Control Type: Rotary knob
• Mounting Type: 35 mm DIN rail, Screw plate
• Connection Type: Screw clamp terminals
• Wire Size (Flexible with cable end): 2 x 0.75...2 x 4 mm²
• Tightening Torque: 1.7 N.m
• IP Protection Level: IP20
• IK Protection Level: IK04
• Operating Temperature: -20 to 60 °C
• Standards: IEC 60947-2, IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
• Protection Type: Thermal-magnetic
• Motor Power (kW) at 400/415V AC: 1.5 kW

Recommendations

For optimal performance, ensure proper mounting on a 35 mm DIN rail and use appropriate screw clamp terminals with the recommended wire sizes. Always follow local electrical codes and standards.
