SCHELINGER johdonsuojakatkaisija 6kA 3P C 40A VDE

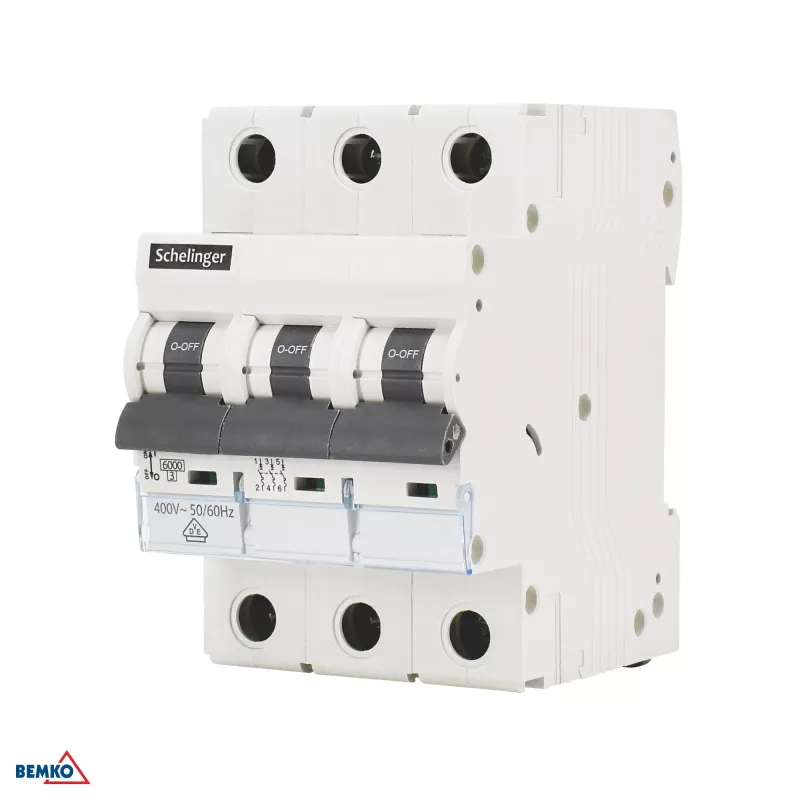

The SCHELINGER A02-G8-3P-C40 is a high-quality miniature circuit breaker (MCB) designed for reliable overload and short-circuit protection in electrical installations. With a 3-pole configuration, C-curve tripping characteristic, and a rated current of 40A, it ensures safe operation in residential, commercial, and industrial applications. Compliant with EN 60898-1 and VDE standards, this MCB offers a breaking capacity of 6kA and is suitable for DIN rail mounting.

Advantages

This MCB provides robust protection against overloads and short circuits, ensuring the safety of electrical circuits and connected devices. Its C-curve characteristic is ideal for circuits with moderate inrush currents, such as lighting and general-purpose loads. The compact design and DIN rail mounting simplify installation in distribution boards.

Suitable for

• Overload and short-circuit protection in electrical panels
• Residential, commercial, and light industrial applications
• Circuits with moderate inrush currents (e.g., lighting, small motors)

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P
• Rated Current (In): 40 A
• Tripping Characteristic: C-Curve
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail (EN 60715)
• Standard Compliance: EN 60898-1, VDE
• Energy Limiting Class: 3
• Terminal Capacity: Up to 25 mm² (solid/stranded)
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Operating Temperature Range: -25°C to +55°C
• Protection Degree: IP20 (terminals), IP40 (enclosure with cover)
• Connection Type: Screw terminals
• Indicator: ON/OFF position indicator

Recommendations

For optimal performance, ensure that the MCB is installed by a qualified electrician and that the load does not exceed the rated current. Regular testing of the ON/OFF indicator is recommended to verify proper operation.
