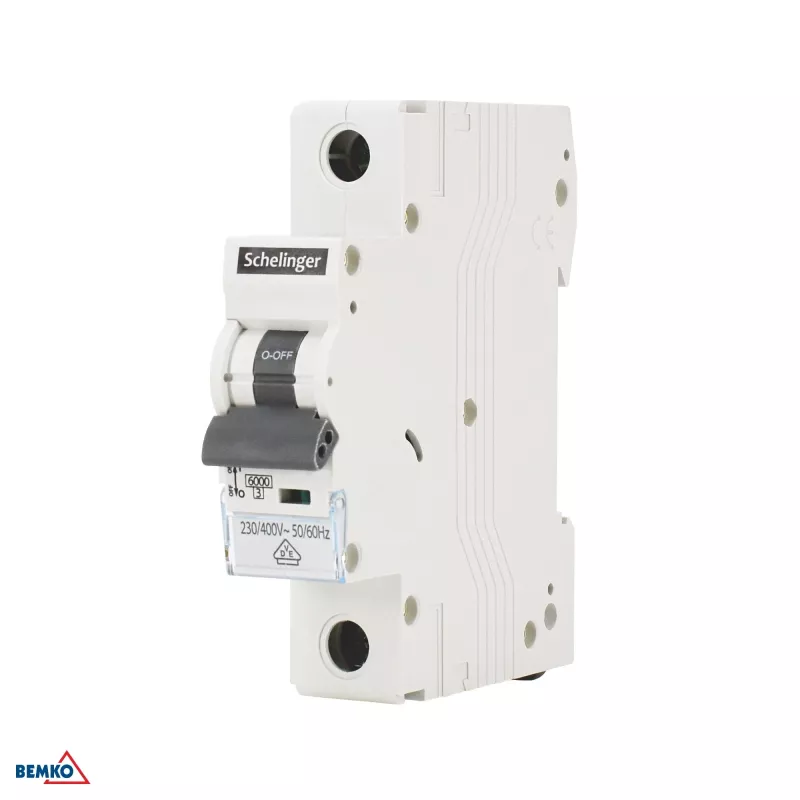

Schellinger A02-G8-1P-C25 johdonsuojakatkaisija 1P C25 6kA VDE

Electrical overloads and short circuits can cause serious damage to wiring and connected equipment. The Schellinger A02-G8-1P-C25 miniature circuit breaker (MCB) provides reliable protection for single-phase circuits rated up to 25 A. With a C tripping curve, it is ideal for general-purpose applications with moderate inrush currents, such as lighting and socket circuits in residential and commercial installations.

Who is it for

This MCB is designed for electricians, panel builders, and maintenance professionals who need a dependable, VDE-certified protective device for DIN rail mounting. It suits both new installations and retrofits in distribution boards where space and reliability are critical.

Main features

• Single-pole (1P) design for 230 V AC circuits
• Rated current 25 A with C tripping characteristic
• Short-circuit breaking capacity of 6 kA
• VDE and CE certified, compliant with IEC/EN 60898-1
• Energy limiting class 3 for enhanced safety
• Screw terminals accept solid conductors up to 25 mm² and flexible up to 16 mm²
• DIN rail (TH35) mounting for quick installation
• IP20 enclosure protection
• Wide operating temperature range from -25°C to +55°C

Specifications

• Product type: Miniature circuit breaker (MCB)
• Number of poles: 1P
• Rated current (In): 25 A
• Tripping curve: C
• Short-circuit breaking capacity (Icn): 6 kA
• Rated voltage (Ue): 230 V AC
• Rated frequency: 50/60 Hz
• Mounting type: DIN rail (TH35)
• Standard compliance: IEC/EN 60898-1
• Certifications: VDE, CE
• Energy limiting class: 3
• Terminal type: Screw terminals
• Terminal capacity (solid wire): up to 25 mm²
• Terminal capacity (flexible wire): up to 16 mm²
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Protection degree (enclosure): IP20
• Ambient operating temperature: -25°C to +55°C

Tips

Always isolate the circuit before installation. Ensure the MCB is correctly rated for the load and check local regulations for compliance.
