Schellinger A02-G8-1P-C32 32 A yksinapainen johdonsuojakatkaisija C-käyrä 6 kA

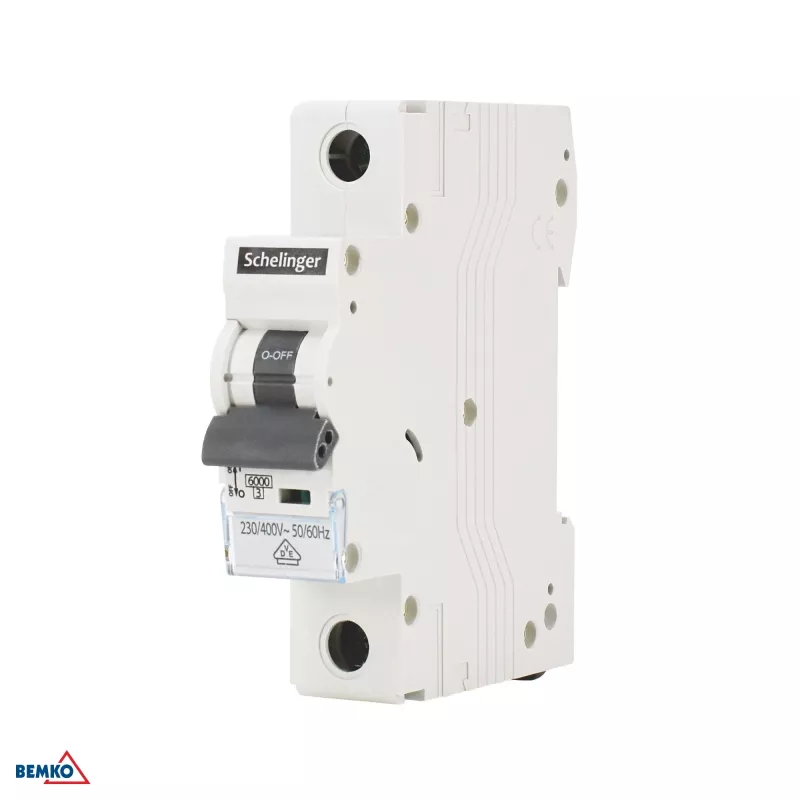

Electricians and panel builders working on residential and commercial distribution boards need a reliable protective device that can handle moderate inrush currents while safeguarding circuits from overloads and short circuits. The Schellinger A02-G8-1P-C32 is a single-pole miniature circuit breaker (MCB) with a C-curve tripping characteristic, rated at 32 A and 6 kA breaking capacity. It is engineered to protect circuits supplying motors, lighting, and general-purpose socket outlets where occasional current surges are expected. Its compact 1-module width fits standard 35 mm DIN rails, making it ideal for new installations or retrofits in consumer units and distribution panels.

Key specifications

• Rated current: 32 A
• Tripping characteristic: C-curve (5-10 times rated current for instantaneous trip)
• Short-circuit breaking capacity: 6 kA (Icn)
• Rated voltage: 230/400 V AC, 50/60 Hz
• Number of poles: 1P (single-pole, protects one phase)
• Mounting: DIN rail 35 mm
• Terminal capacity: 1-25 mm² screw terminals
• Protection degree: IP20 (terminals)
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Standards: IEC/EN 60898-1
• Certifications: VDE, CE
• Energy limiting class: 3
• Operating temperature: -25°C to +55°C
• Series: S-100
• Trip indicator: yes

Why choose it

This MCB offers a balanced C-curve response that tolerates inrush currents from motors, transformers, and LED drivers without nuisance tripping, while still providing fast protection against genuine overloads and short circuits. The 6 kA breaking capacity is sufficient for most residential and light commercial applications, and the VDE certification ensures compliance with European safety standards. The clear trip indicator allows quick identification of a tripped breaker, reducing downtime during fault finding. Its robust construction and wide terminal range make installation straightforward and reliable.

Ideal use cases

• Protection of socket outlet circuits in homes and offices
• Lighting circuits with electronic ballasts or LED drivers
• Small motor circuits (e.g., pumps, fans, garage door openers)
• Control circuits in industrial panels where moderate inrush is expected
• Retrofit projects requiring a VDE-approved 32 A MCB

Good to know

The Schellinger A02-G8-1P-C32 is part of the S-100 series, designed for compatibility with standard busbar systems and accessories. It is a single-module device (18 mm width), saving space in crowded distribution boards. Always ensure that the upstream protection and cable sizing are coordinated with the breaker's rated current and breaking capacity. For installations with higher prospective short-circuit currents, consider a breaker with a higher Icn rating. The device is not suitable for DC applications unless specified by the manufacturer.
