Schellinger A02-G8-1P-C63 6kA 1-napainen C-ominaiskäyrä 63A johdonsuojakatkaisija

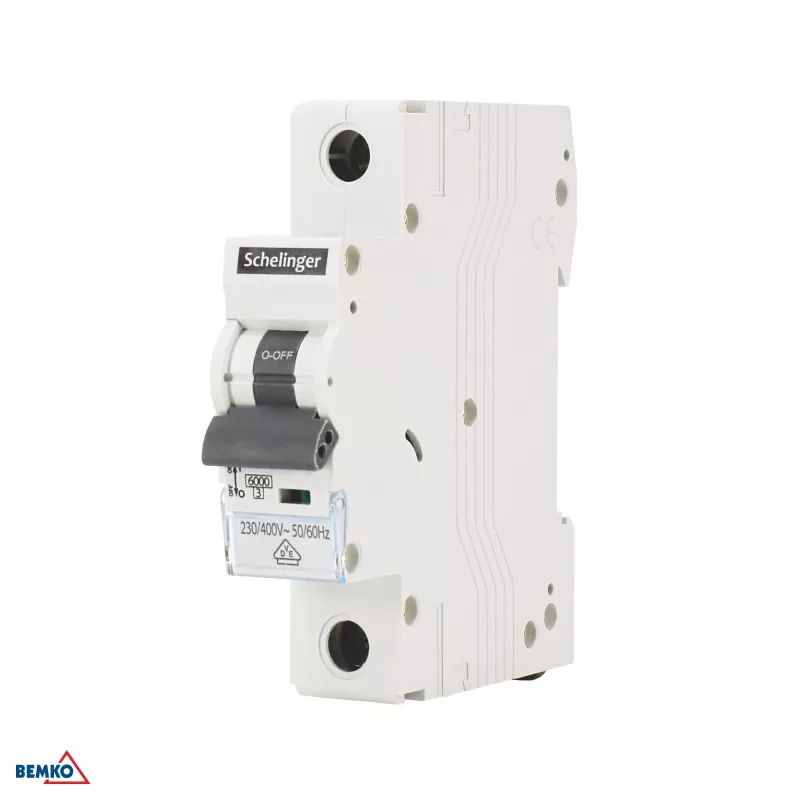

This miniature circuit breaker (MCB) from Schellinger provides dependable overcurrent protection for residential and light commercial electrical installations. With a 63 A rated current and C tripping characteristic, it effectively guards against overloads and short circuits while allowing moderate inrush currents from motors and lighting loads.

Advantages

The 6 kA breaking capacity ensures safe interruption of fault currents, while the compact single-pole design fits standard DIN rails. The clear ON/OFF/trip indicator simplifies status monitoring, and screw terminals accept conductors up to 25 mm² for secure connections.

Suitable for

• Distribution boards in homes and offices
• Protection of circuits with moderate inrush currents
• Installations requiring VDE and CE certified components

Key specifications

• Rated current: 63 A
• Tripping curve: C
• Breaking capacity: 6 kA
• Rated voltage: 230 V AC
• Number of poles: 1
• Frequency: 50/60 Hz
• Standards: IEC/EN 60898-1
• Protection degree: IP20 (terminals)
• Operating temperature: -25°C to +55°C
• Terminal capacity: 1-25 mm²
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Energy limiting class: 3
• Rated impulse withstand voltage: 4 kV

Recommendations

For reliable circuit protection in demanding environments, pair this MCB with appropriate residual current devices and surge protection. Always have installation performed by a qualified electrician.
