Asennuslevy Rittal KX väyläkoteloille 175x385 mm, ruuvattu, valkoinen

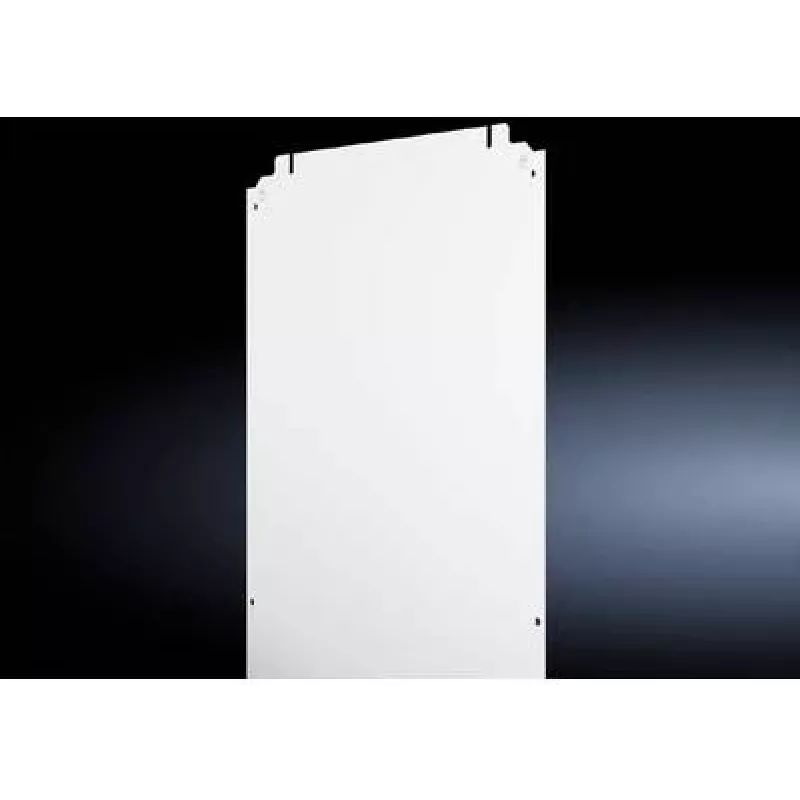

Rittal KX mounting plate for bus enclosures, size 175 x 385 mm, is a screw-mounted steel panel finished in white and designed to carry electrical components and terminal blocks inside bus-type enclosures. The plate's compact dimensions and solid steel construction provide a stable surface for organizing wiring, small devices and connectors in control cabinets or distribution housings. Intended for component installation inside the enclosure; assembly screws are supplied with the enclosure as accessories.

Advantages

The steel construction ensures mechanical strength and reliable support for mounted components while the white finish provides good contrast for wiring and labels. Screw-mounted design allows secure fastening and straightforward replacement or repositioning. The compact footprint suits limited-space enclosures and contributes minimal additional weight.

Suitable for

Key specifications

How to use

Position the mounting plate inside the bus enclosure aligning it with the enclosure's pre-drilled fastening points. Secure the plate using the assembly screws supplied with the enclosure or suitable screws if fitting separately. After fastening, install terminal blocks, relays or small controllers onto the plate using appropriate panel-mounting hardware. Route and fasten wiring neatly to maintain clear access and cooling within the enclosure.

Recommendations

Ensure compatibility of the plate dimensions with the enclosure internal layout before installation. Use proper earthing practices when mounting conductive components and follow applicable electrical installation standards. When installing heavier devices, verify screw length and load capacity to maintain secure fixing.
