Asennussarja DeLOCK 65987 vihreä muovi

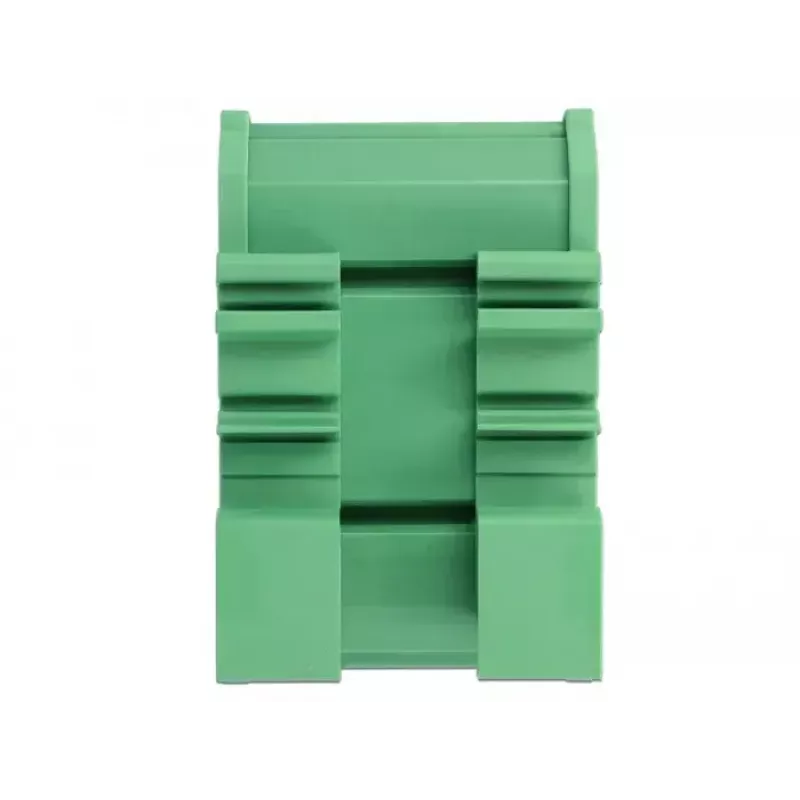

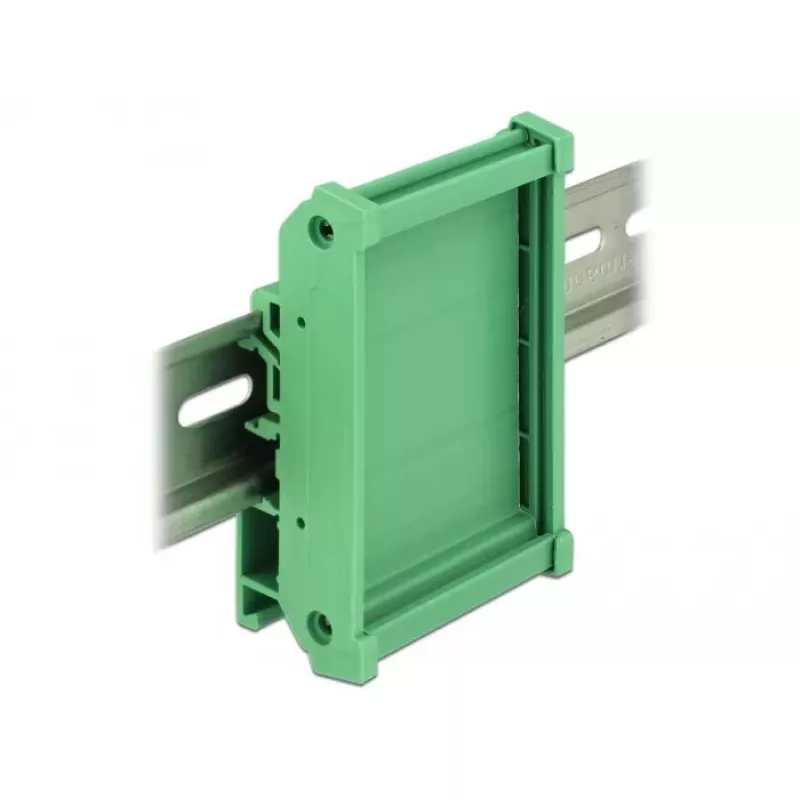

Delock Board Holder for DIN Rail 25 cm long is a green plastic mounting bracket designed to hold circuit boards with a width of 72 mm and to attach them to either 15 mm or 35 mm DIN rails. The holder is made of durable plastic and can be shortened to custom lengths; after cutting, the two end caps can be reattached to protect the board edges.

Advantages

The Delock board holder provides stable mechanical support for printed circuit boards and is compatible with common DIN rail sizes (15 mm and 35 mm). Its construction from durable green plastic offers corrosion resistance and low weight. The design allows individual shortening to fit different enclosure sizes, and removable end caps restore a finished edge after modification.

Suitable for

• Mounting single printed circuit boards with a width of 72 mm
• Installation on 15 mm DIN rails
• Installation on 35 mm DIN rails
• Custom-length mounting solutions after shortening the holder

Key specifications

• Manufacturer: DELOCK
• Manufacturer part number (MPN): 65987
• EAN: 4043619659876
• Material: green plastic
• Length: 25 cm (can be shortened individually)
• Board width supported: 72 mm
• DIN rail compatibility: 15 mm and 35 mm

How to use

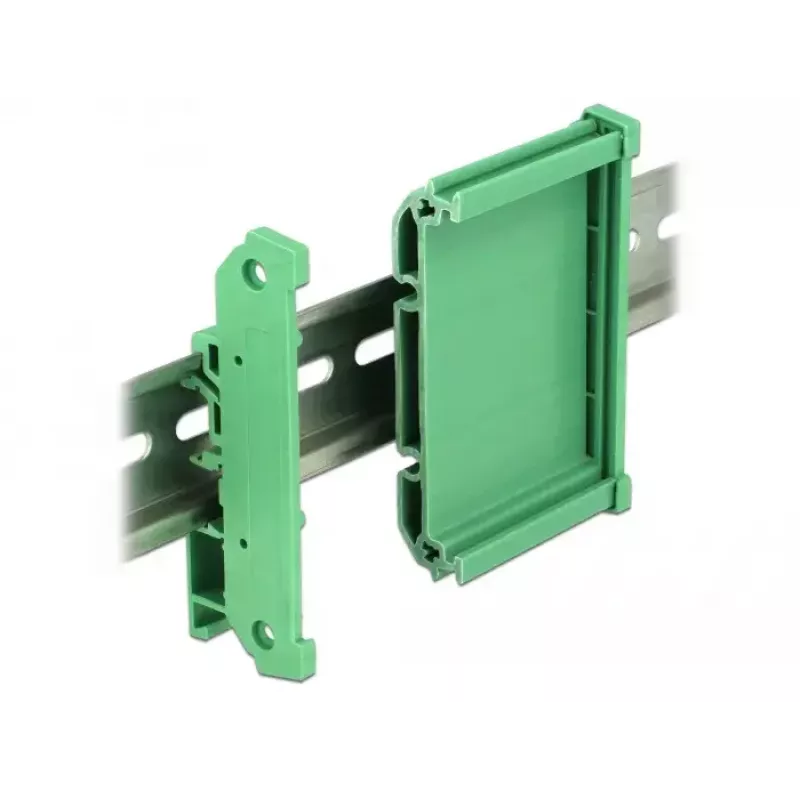

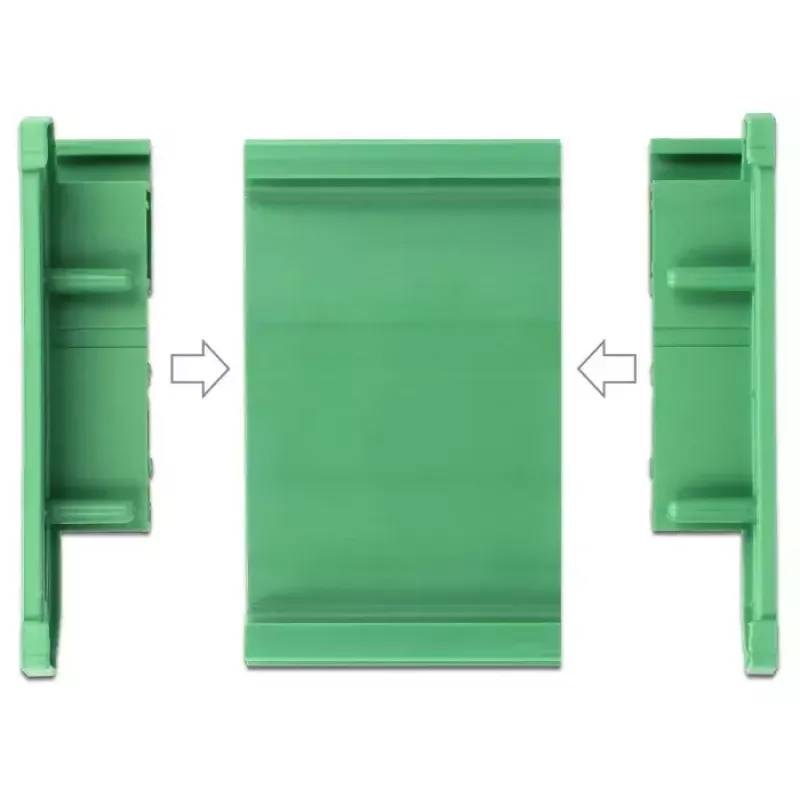

Place the printed circuit board into the holder so that the board aligns with the 72 mm support width. Clip the holder onto a 15 mm or 35 mm DIN rail, ensuring it engages securely. If a shorter length is required, mark the desired dimension and cut the holder to size with an appropriate cutting tool; remove any burrs and reattach the two end caps to cover the cut edges before final installation.

Recommendations

When shortening the holder, wear protective gloves and eye protection. Ensure the DIN rail and mounted board are within the mechanical load limits of the plastic holder and avoid exposing the holder to excessive heat or chemical solvents that could weaken the material.
