Asennussarja DeLOCK 86413 hopea sinkki

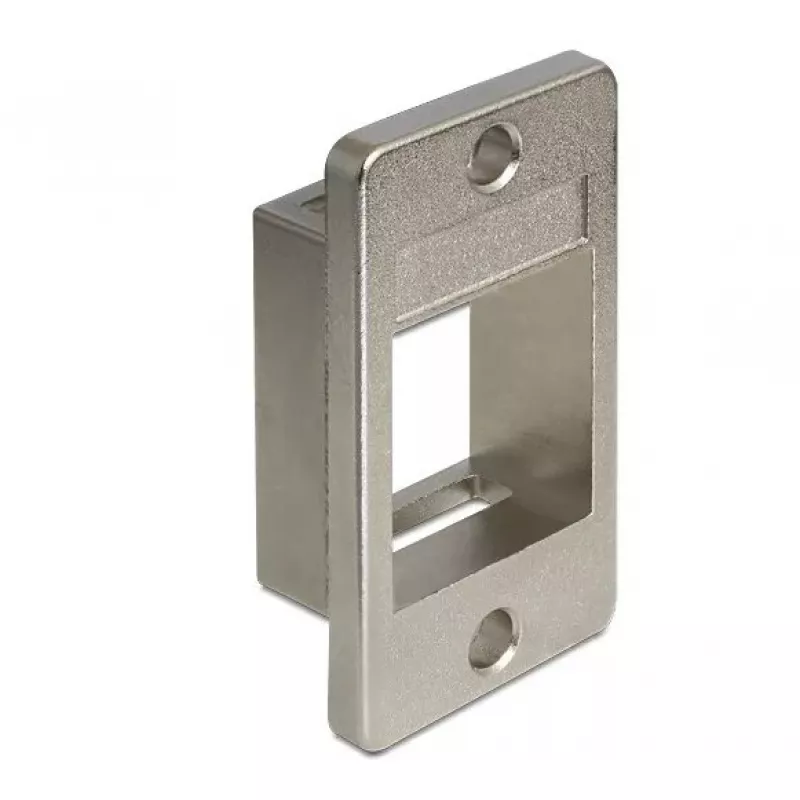

This Delock mounting kit is a zinc die cast Keystone holder for snap-in installation of a single Keystone module. It fits standardized Keystone dimensions and is suitable for mounting in enclosures, cases or panels, providing a compact and durable mounting solution with a silver finish.

Advantages

The holder features an integrated name plate and two screw holes for secure fastening. Made of zinc die cast, it offers mechanical stability and corrosion resistance compared with some plastic alternatives. Standardized cut-out and port dimensions ensure compatibility with common Keystone modules.

Suitable for

• Mounting one Keystone module in electronic enclosures
• Panel or case installations for network or audio/video connectors
• Repair or upgrade of equipment that uses standardized Keystone ports

Key specifications

• Keystone port (WxH): 19.2 x 14.9 mm
• Panel cut-out (WxH): 16.8 x 22.8 mm
• Mounting hole spacing: 28.9 mm (two holes)
• Material: zinc die cast
• Product colour: silver
• Dimensions (LxWxH): 9.8 x 19.1 x 35.5 mm

How to use

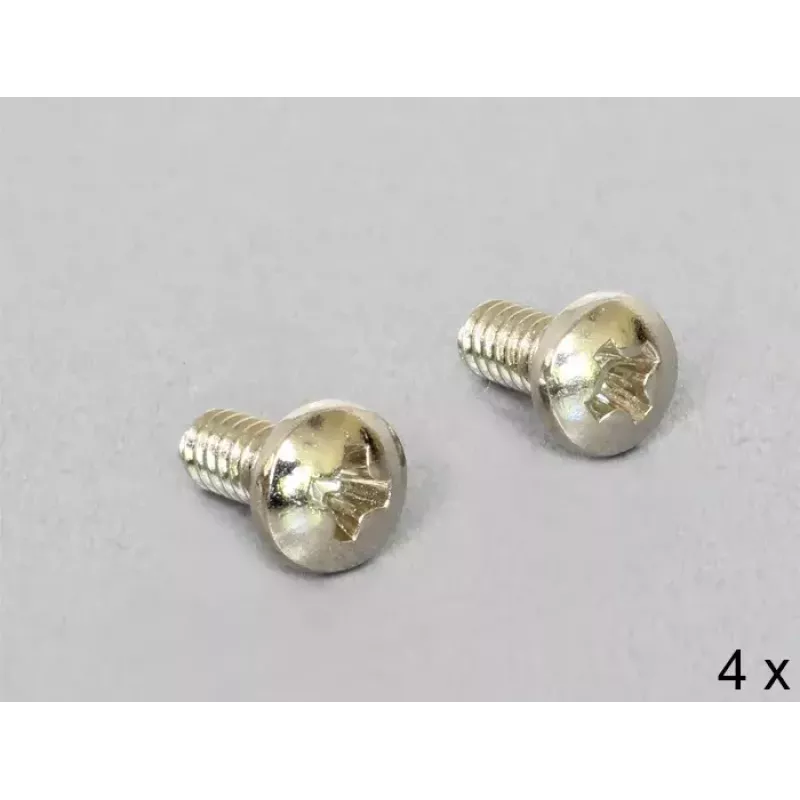

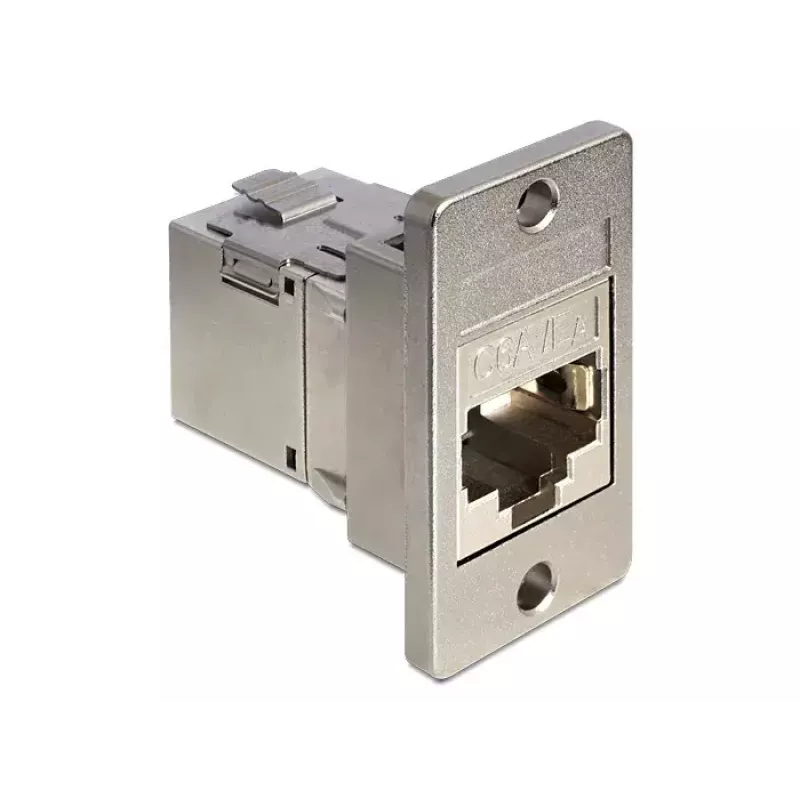

Cut the panel opening according to the specified panel cut-out size and align the Keystone module with the holder. Snap the Keystone module into the holder until it clicks into place. Position the holder in the panel or enclosure and secure it using screws through the two mounting holes spaced 28.9 mm apart.

Recommendations

For reliable installation, use screws appropriate for the panel material and avoid overtightening to prevent deformation of the holder or panel. Verify compatibility of the Keystone module with the 19.2 x 14.9 mm port before installation.
