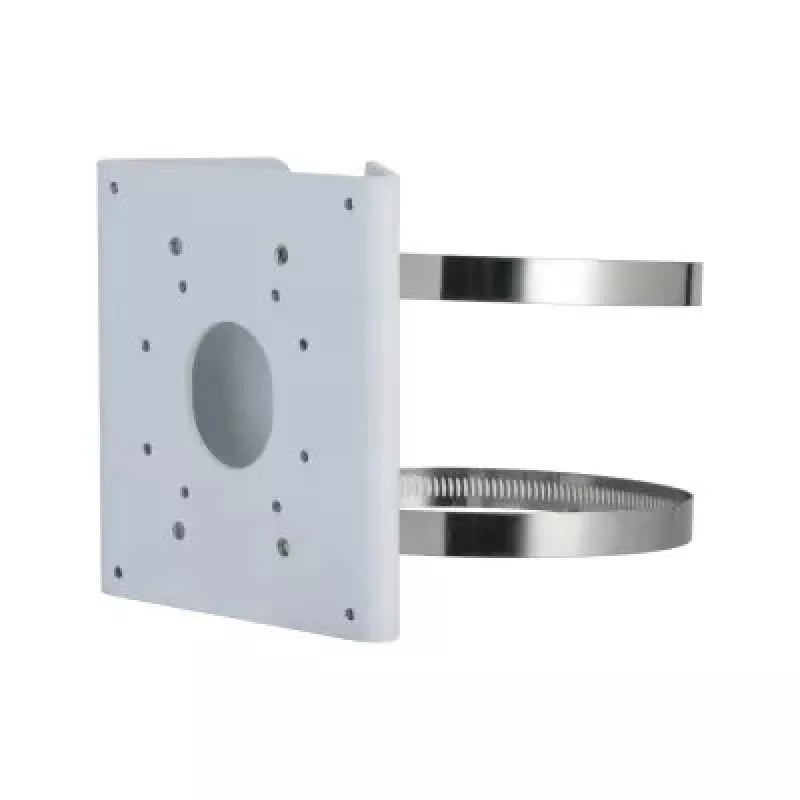

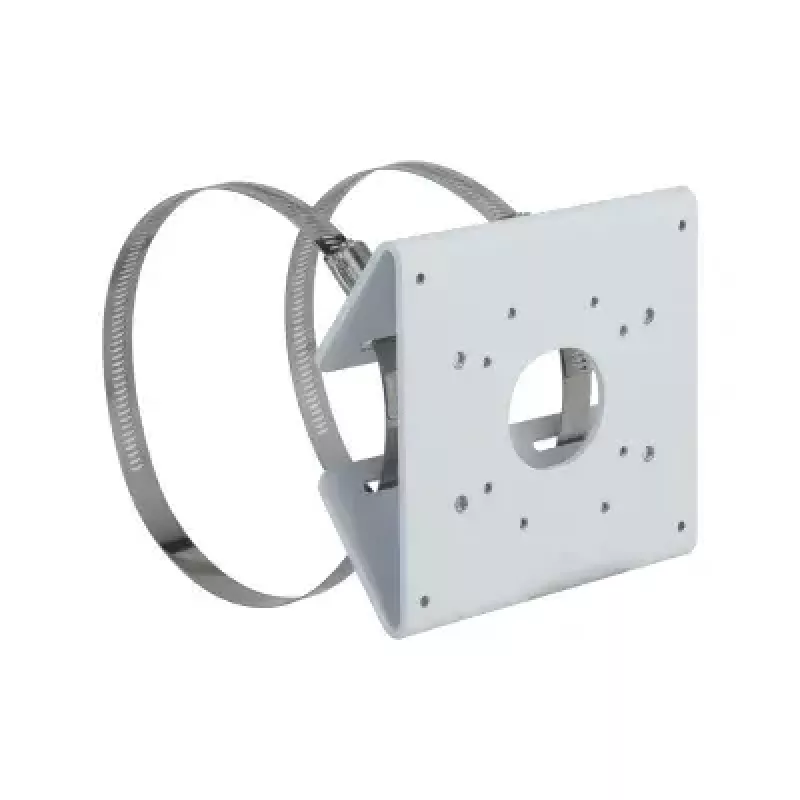

Asennusteline DAHUA DH-PFA156 yleismalli valkoinen, 163×185×71 mm

The Dahua DH-PFA156 is a universal pole mount bracket engineered to provide a secure and stable attachment point for CCTV surveillance cameras on poles with diameters from 80 mm to 150 mm. Its robust aluminum alloy construction and white powder-coated finish ensure long-lasting performance in both indoor and outdoor environments, while the integrated cable management keeps installations neat and protected.

Advantages

This bracket offers a universal design compatible with a wide range of Dahua dome cameras, simplifying inventory and installation. The corrosion-resistant aluminum alloy body withstands harsh weather conditions, and the white finish blends seamlessly with most architectural settings. With a maximum load capacity of 3 kg, it supports typical surveillance cameras without compromising stability. The integrated internal cable routing conceals wiring, reducing the risk of tampering and enhancing the overall aesthetic.

Suitable for

• Pole-mounted CCTV installations in parking lots, perimeters, and public areas
• Upgrading or replacing existing camera mounts with a durable, weather-resistant solution
• Installations requiring a low-profile, white bracket that matches light-colored poles or walls
• Dahua dome cameras and other compatible models with standard mounting patterns

Key specifications

• Material: Aluminum alloy with white powder coating
• Dimensions (L x W x H): 185 mm x 163 mm x 71 mm (7.28" x 6.42" x 2.80")
• Net weight: 0.76 kg (1.68 lbs)
• Max load capacity: 3 kg (6.61 lbs)
• Pole diameter compatibility: Φ80 mm - Φ150 mm (3.15" - 5.91")
• Operating temperature: -40°C to +60°C (-40°F to +140°F)
• Operating humidity: 0% - 90% RH
• Mounting method: Straps/clamps for secure pole attachment
• Cable management: Integrated internal routing
• Corrosion resistance: Yes
• Weather resistance: Yes

Recommendations

Use appropriate stainless steel straps or clamps to secure the bracket to the pole, ensuring they are tightened to the manufacturer's torque specifications. Verify that the pole surface is clean and free of debris before installation. Route cables through the integrated channel to prevent pinching or strain, and periodically inspect the bracket and fasteners for signs of wear or loosening, especially in high-vibration environments.
