Asennusteline Rittal 5302351 oven asentotunnistimelle, metallinen asennustarvike

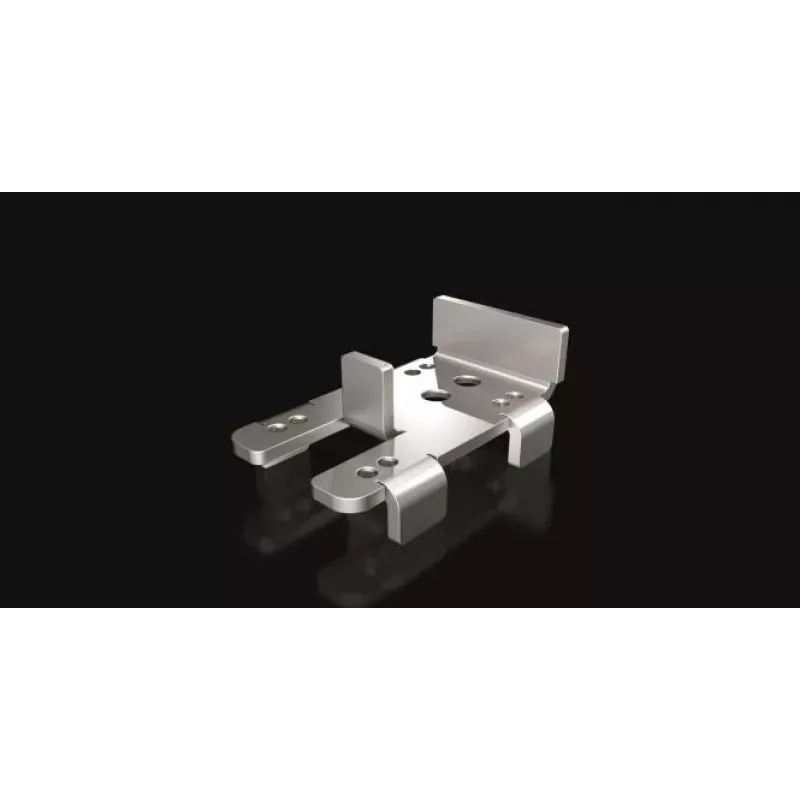

Mounting bracket Rittal 5302351 for door position switch, metal mounting accessory is a metal bracket designed to secure a door position switch to cabinet or enclosure doors. It provides a stable, fixed point for the switch to be installed, ensuring correct alignment and repeatable operation for door-status detection in control cabinets, server racks and industrial enclosures.

Advantages

The bracket is made of metal for mechanical strength and long service life under repeated door cycles and industrial conditions. Its design allows consistent positioning of the door position switch to reduce misalignment and false signals. The accessory supports reliable mounting on typical cabinet door profiles and contributes to a compact, professional installation with minimal additional hardware.

Suitable for

Key specifications

How to use

Align the bracket on the cabinet or enclosure door so the actuator of the door position switch will engage correctly when the door closes. Secure the bracket to the door or frame using appropriate screws or bolts for the door material and thickness. Attach the door position switch to the bracket according to the switch manufacturer's recommended orientation and tightening values to avoid stress on the switch housing. Test the switch operation by opening and closing the door to verify reliable engagement and correct electrical signalling.

Recommendations

Select mounting hardware (screws, bolts, washers) that match the door material and thickness, and ensure corrosion-resistant fasteners in humid or industrial atmospheres. When integrating with electrical systems, follow applicable wiring and safety standards and verify switch actuation after installation and periodically during maintenance.
