ATTE IPP-1-20-HS ylijännitesuoja

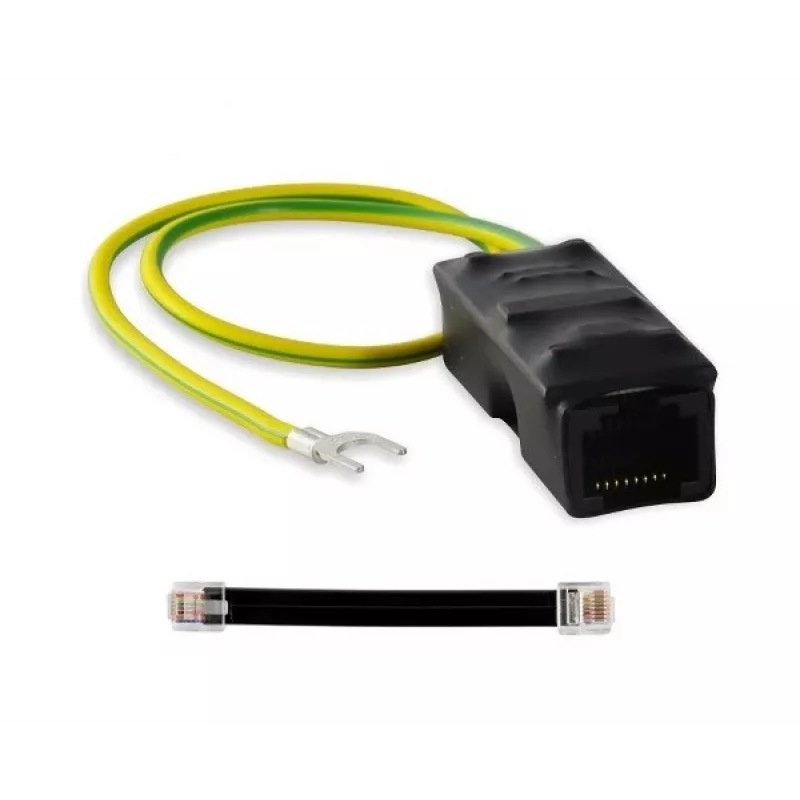

The ATTE IPP-1-20-HS is a surge protector designed for Gigabit Ethernet 10/100/1000 Mbps networks and PoE PASSIVE / 802.3af / 802.3at. It features one channel with RJ45/RJ45 connectors and limits overvoltages in Ethernet networks by absorbing transient electrical impulses. The device operates without a connected ground, limiting overvoltages between conductors; connecting a ground allows charge to be diverted to earth, increasing protection effectiveness.

Key features

• Surge protector for Gigabit Ethernet 10/100/1000 Mbps and PoE PASSIVE / 802.3af / 802.3at
• 1 channel, RJ45/RJ45 connectors
• Works without connected grounding; grounding increases protection effectiveness
• Reduces voltage to a safe level, decreasing the number of failures
• No power supply required and does not cause interference with data transmission

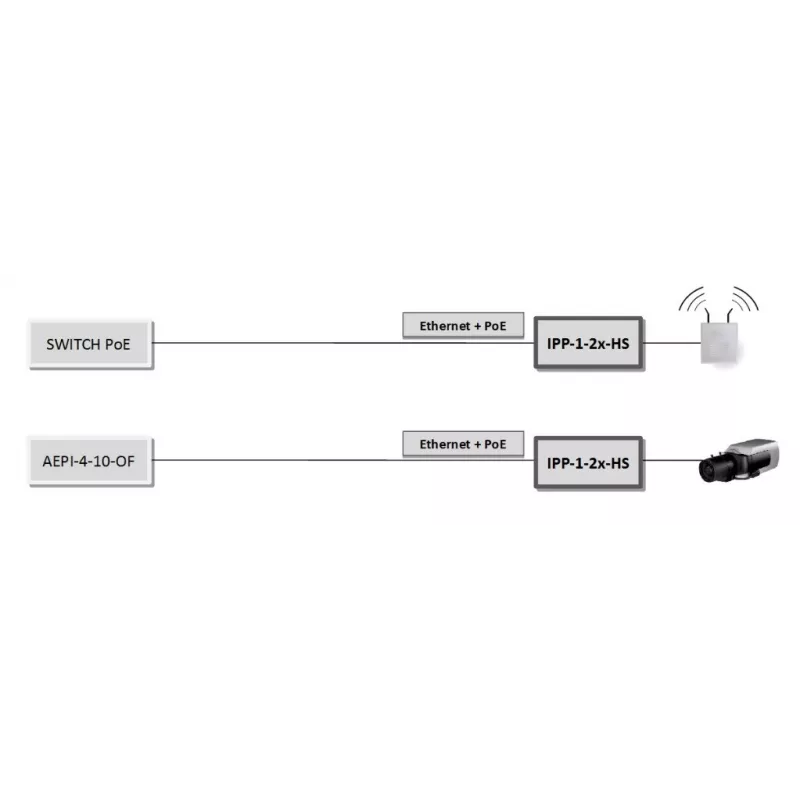

• Can be used to protect IP CCTV systems, wired Ethernet networks, wireless WiFi, etc.

Specifications

• Brand: ATTE
• MPN: IPP-1-20-HS
• Ethernet LAN: Yes
• Maximum instantaneous current (line-line, line-ground): 30A
• Protection activation voltage (line-line): 8V
• PoE power line protection activation voltage (any PoE standard): 65V
• Protection activation voltage (line-ground): 400V
• Housing: insulating polyethylene film
• Housing protection degree: IP20
• Dimensions: 20x48x17mm
• Weight: 0.015kg
