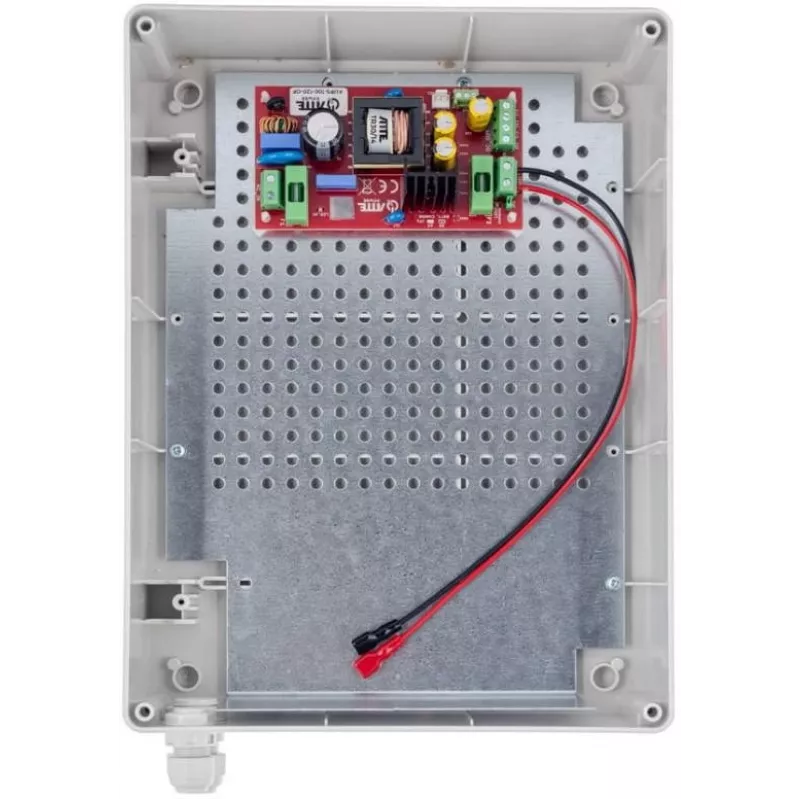

ATTE AUPS-100-120-XL1 puskuroitu hakkuriteholähde 12V 8A 100W virtalähde

The ATTE AUPS-100-120-XL1 is a buffered SMPS power supply delivering a stable 12 V DC output with a continuous current of 8 A and a continuous power of 100 W. It features a built-in buffer circuit to protect against power interruptions and is housed in an external ABOX-XL1 enclosure with IP56 rating.

Key features

• Stable 12 V output voltage
• 100 W continuous power
• 8 A continuous output current
• Built-in buffer circuit
• High energy efficiency
• Compact dimensions
• Wide operating temperature range
• Short-circuit and overload protection
• Easy installation

Specifications

• Model: AUPS-100-120-XL1
• Brand: ATTE
• Power type: Buffered SMPS
• Input voltage: 190-260 V AC, 50 Hz
• Output voltage: 12 V DC (10.2-13.8 V)
• Continuous output current: 8 A
• Maximum output current: 10 A
• Continuous power: 100 W
• Maximum power: 120 W
• Efficiency: 90%
• Enclosure: External ABOX-XL1, IP56
• Battery: 1 x 7-18 Ah (gel/AGM)
• Protections: SCP, OLP, OHP, UVP
• Signalling outputs: 2 x OC (OUF, ACF)
• Dimensions: ABOX-XL1 enclosure
• Weight: ~3.5 kg (with battery)
• Application: Outdoor CCTV
