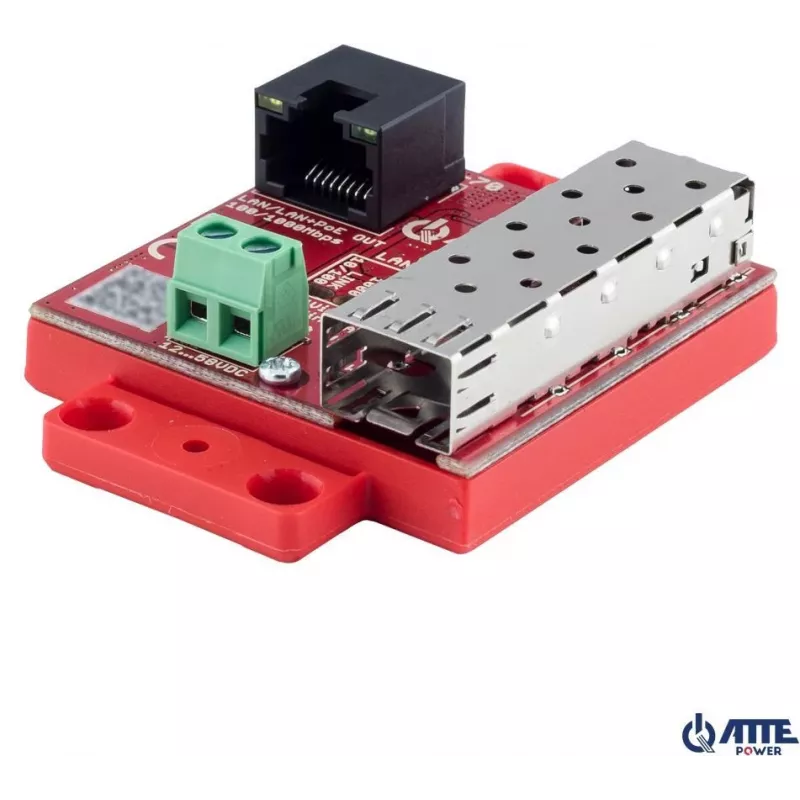

ATTE xFIBER-2-70 Gigabit Ethernet PoE mediakonvertteri (PoE OUT)

The ATTE xFIBER-2-70 is a high-performance Gigabit Ethernet media converter designed to extend network connectivity over fiber while providing Power over Ethernet (PoE) output. Ideal for IP cameras, wireless access points, and other PoE-powered devices, this converter ensures reliable data transmission and power delivery over long distances.

Advantages

Supports PoE/PoE+ (IEEE 802.3af/at) with up to 30W output, eliminating the need for separate power cables. Compact metal housing with wall-mount and DIN-rail options for flexible installation. Jumbo frame support up to 9K bytes enhances data throughput.

Suitable for

• Extending Ethernet networks over fiber optic cabling
• Powering remote PoE devices such as IP cameras, VoIP phones, and wireless access points
• Industrial and commercial environments requiring robust connectivity

Key specifications

• 1 x 10/100/1000Base-T RJ45 port with PoE output
• 1 x 1000Base-X SFP slot (SFP module not included)
• PoE output: 48-57V DC, up to 30W
• Power input: 48-57V DC via terminal block
• Operating temperature: -20°C to 60°C
• Metal housing, wall-mount and DIN-rail compatible

Recommendations

For optimal performance, use a compatible SFP module (sold separately) matching your fiber type and distance requirements. Ensure the power supply provides adequate voltage and current for both the converter and the connected PoE device.
