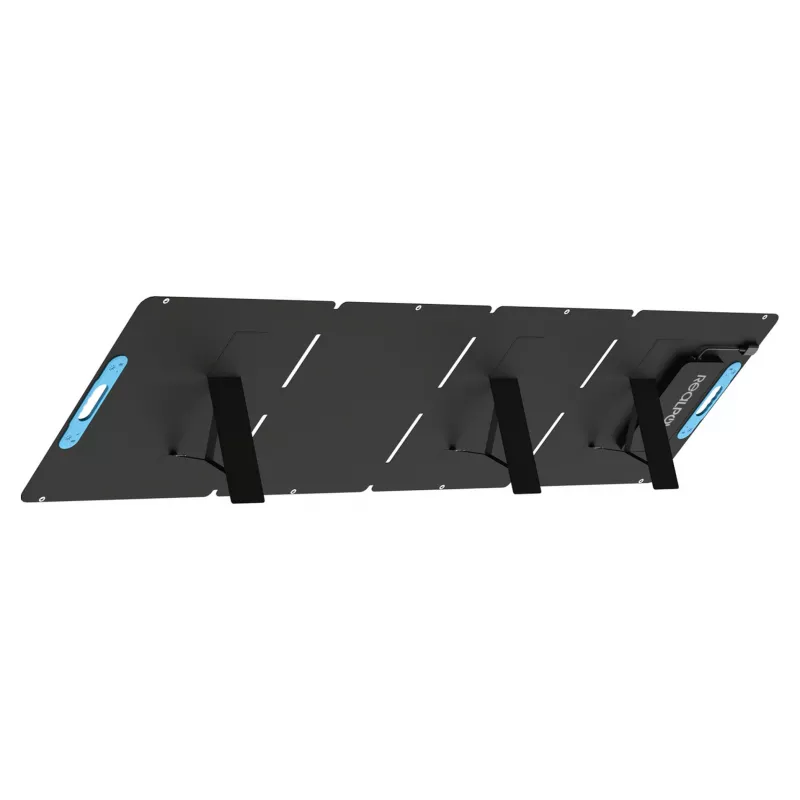

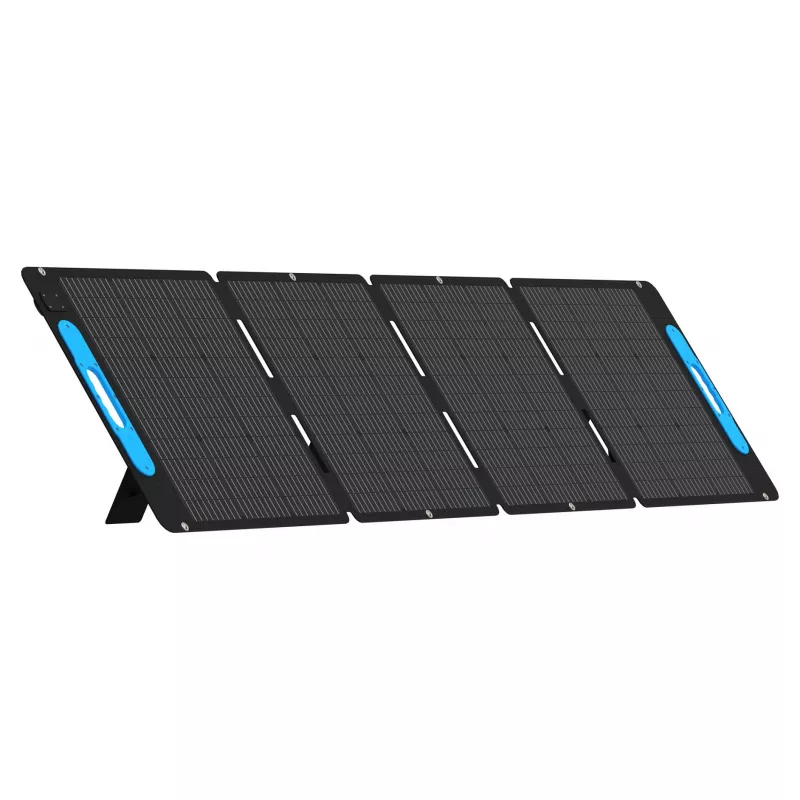

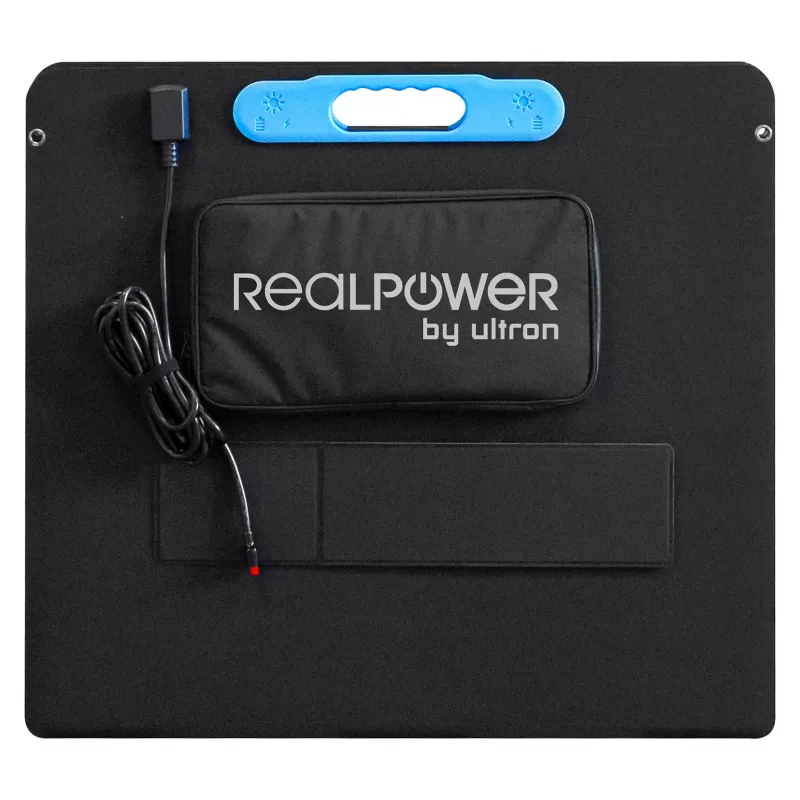

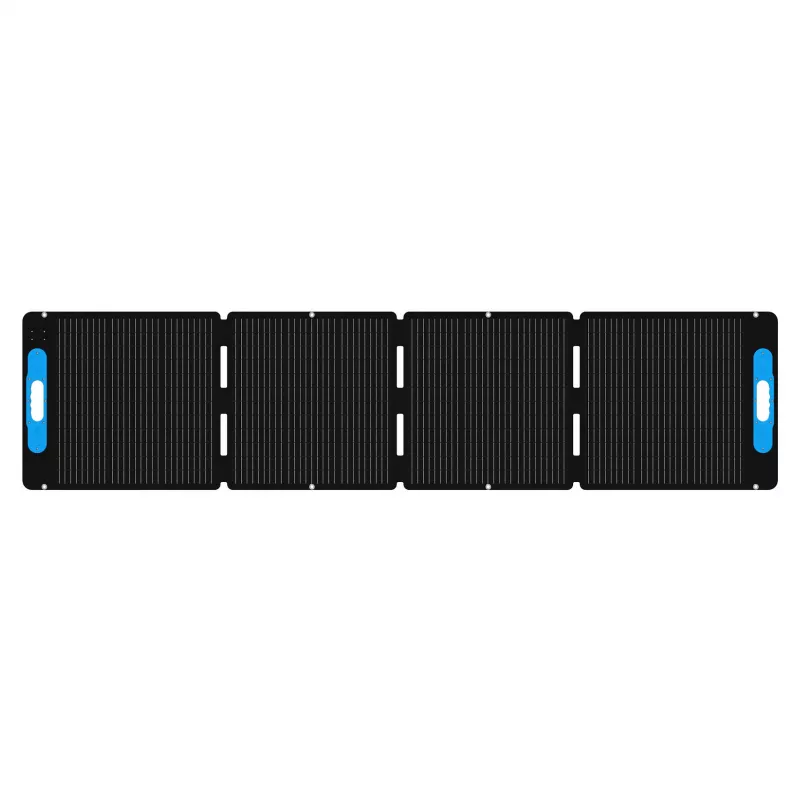

Aurinkopaneeli RealPower 411608 300 W monokiteinen pii 37,6 V 7,69 A

The RealPower 411608 300 W monocrystalline silicon solar panel delivers a rated output of 300 W with a maximum output voltage of 37.6 V and a maximum current of 7.69 A. Built with monocrystalline cells, the panel is designed to provide efficient energy conversion in a compact format. Its physical dimensions—730 mm width, 2570 mm depth and 15 mm height—make it suitable for ground-mounted arrays and other fixed installations. The product includes Anderson and DC connectors for straightforward electrical connections.

Advantages

Monocrystalline silicon construction offers higher conversion efficiency per cell area compared with many polycrystalline alternatives, enabling more power from a relatively small footprint. The 300 W rated power and 37.6 V maximum output voltage are well suited to common inverter and charge-controller ranges. Durable panel dimensions and a low profile support easier mounting and alignment in ground installations. Supplied Anderson and DC connectors reduce the need for additional connector accessories during installation.

Suitable for

• Ground-mounted residential or small commercial solar arrays
• Off-grid systems with compatible inverters or charge controllers
• Battery charging setups where 37.6 V open-circuit range matches the system design
• Hybrid systems combining multiple panels into higher-voltage strings

Key specifications

• Rated power: 300 W
• Maximum output voltage: 37.6 V
• Maximum current: 7.69 A
• Cell type: Monocrystalline silicon
• Panel dimensions (W × D × H): 730 mm × 2570 mm × 15 mm
• Mounting orientation: ground installation / fixed mounting

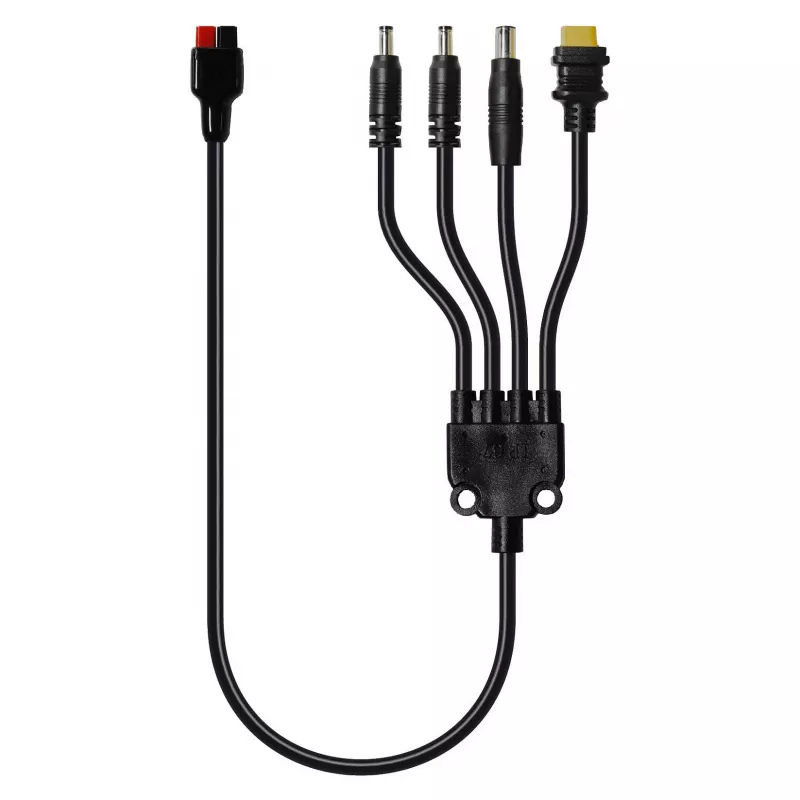

• Connectors: Anderson and DC connectors included

How to use

Mount the RealPower 411608 panel on a suitably rated ground mounting frame or racking system, ensuring the chosen location receives unobstructed sunlight for the intended hours of operation. Connect the panel to an inverter or charge controller whose input voltage and current ranges accommodate the panel’s 37.6 V and 7.69 A ratings. Use the supplied Anderson or DC connectors to make secure electrical connections and follow local electrical codes for grounding and overcurrent protection. When combining multiple panels, observe proper series or parallel wiring to match system voltage and current requirements.

Recommendations

Place the panel at the optimal tilt and orientation for your geographic latitude, keep the surface clean of dust and debris, and verify that connectors and mounting hardware remain corrosion-free. For safe operation, use suitable fuses or circuit breakers and consult a qualified installer when integrating into larger systems.
