Aurinkopaneeliliitin DeLOCK DL4 1 x liitin 4 x pistokkeeseen musta

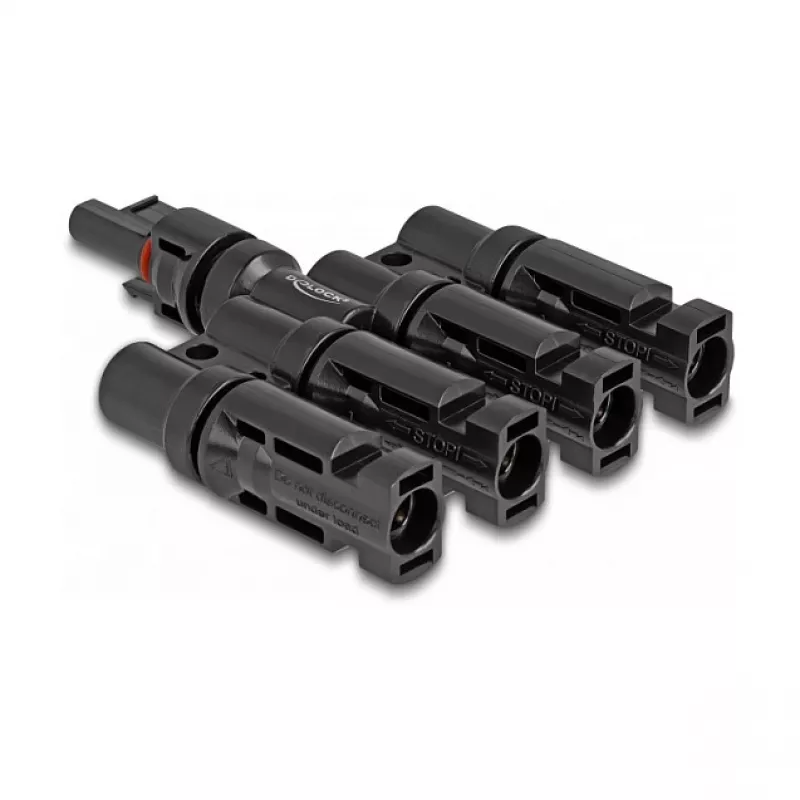

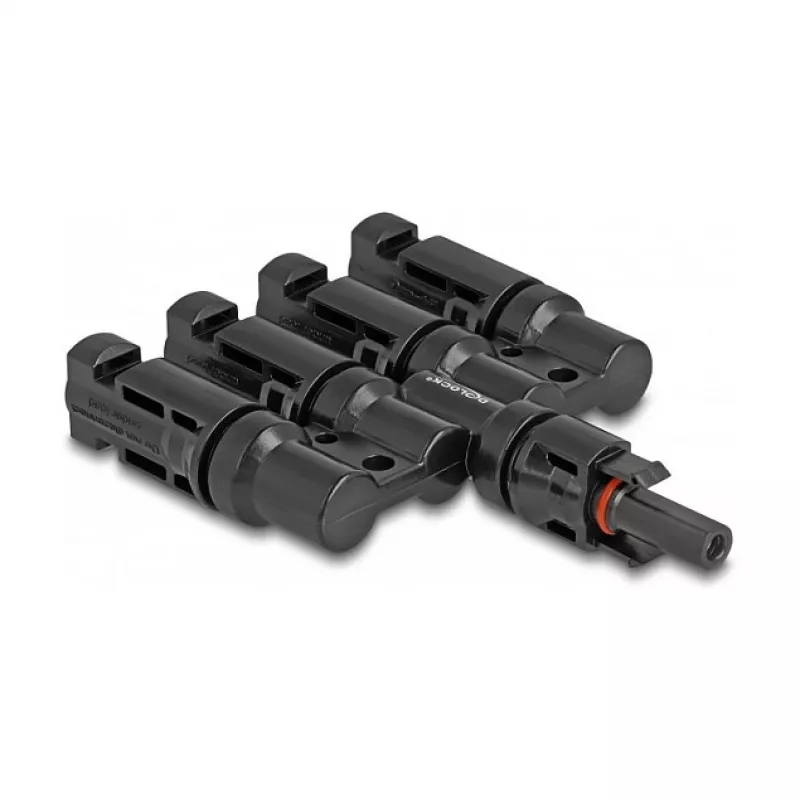

The DeLOCK DL4 solar connector provides a single female input and four male outputs for distributing power from a photovoltaic system. Designed for solar panel installations, the connector is compact (39 x 104 x 18 mm) and finished in black. It enables safe electrical connection and is manufactured in China.

Advantages

The DL4 connectors feature a snap-in locking mechanism that prevents accidental disconnection while allowing release with the appropriate tool. The connector is rated IP67 for dust and water protection, ensuring reliable operation in outdoor conditions. The multi-branch design simplifies wiring and reduces the need for additional junction components.

Suitable for

• Connecting a single solar panel output to multiple inputs
• Small to medium photovoltaic installations
• Outdoor electrical junctions requiring IP67 protection
• Systems using standard solar connector interfaces compatible with DeLOCK DL4

Key specifications

• Brand: DELOCK
• Model / MPN: 60027
• EAN: 4043619600274
• Type: 1 x female to 4 x male solar connector
• Dimensions: 39 x 104 x 18 mm (W x D x H)
• Color: Black
• Ingress protection: IP67 (dust and water resistant)
• Manufactured in: China

How to use

Connect the female input to the solar panel or compatible cable and plug the male outputs into the corresponding connectors of downstream devices or cables. Ensure the snap-in locking engages to secure each connection. To disconnect, use the appropriate release tool to unlock the snap-in mechanism before removing the connector.

Recommendations

Ensure all connections are made according to the system's electrical specifications and local safety regulations. Inspect connectors periodically for wear or damage and replace if the sealing or locking mechanism is compromised. Avoid exposing the connector to mechanical stress beyond its intended use.
