Automaattinen akkulaturi Ansmann laturit 1001-0023

The ANSMANN ACS110 automatic charger is designed for 1–10 cell NiMH or NiCd battery packs with nominal cell voltages from 1.2 V up to 12.0 V. The charger detects the number of cells and adapts the charging voltage accordingly. It supports an optional pre-discharge cycle before switching to charging and provides automatic cut-off at end of charge with -deltaV detection, then switching to trickle charge. The unit is intended for worldwide mains use (100–240 V AC, 50–60 Hz) and includes short-circuit and reverse-polarity protection. ANSMANN supplies a 3-year warranty for this model.

Advantages

The device offers automatic cell detection and voltage adjustment to simplify charging of mixed packs, an optional pre-discharge function, and visible LED indicators for charging status (flashing green), discharging (steady yellow) and fault conditions (flashing red). Charging current is 800 mA with a discharge current of 150–200 mA. Multiple connector options are included for flexible battery connection and the charger is compact and suitable for global mains voltages.

Suitable for

• Charging and maintaining 1–10 cell NiMH battery packs
• Charging and maintaining 1–10 cell NiCd battery packs
• Hobby battery packs and portable device packs requiring 1.2–12.0 V
• Users needing a compact, travel-capable AC charger (100–240 V)

Key specifications

• Model: ANSMANN ACS110 (mpn 1001-0023, EAN 4013674036448)
• Compatible battery chemistries: NiMH, NiCd
• Supported pack voltage: 1.2 V–12.0 V (1–10 cells)
• Charging current: 800 mA
• Discharge current (pre-discharge): 150–200 mA
• Input: 100–240 V AC, 50–60 Hz
• Protections: short-circuit, reverse polarity
• Colour: Black; Weight: 0.276 kg; Dimensions: approx. 62 × 118 × 88 mm
• Warranty: 3 years

How to use

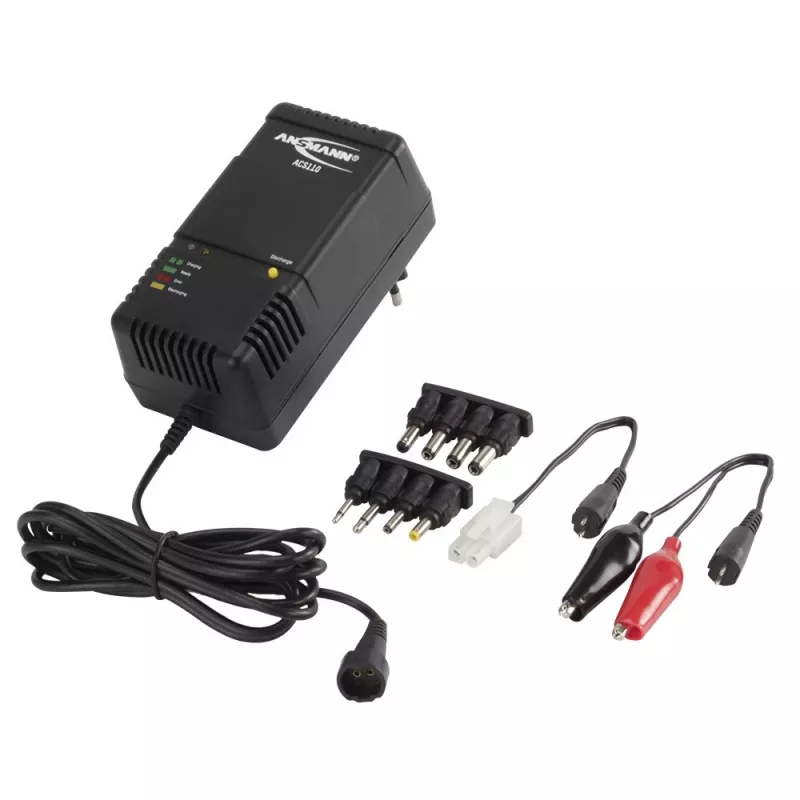

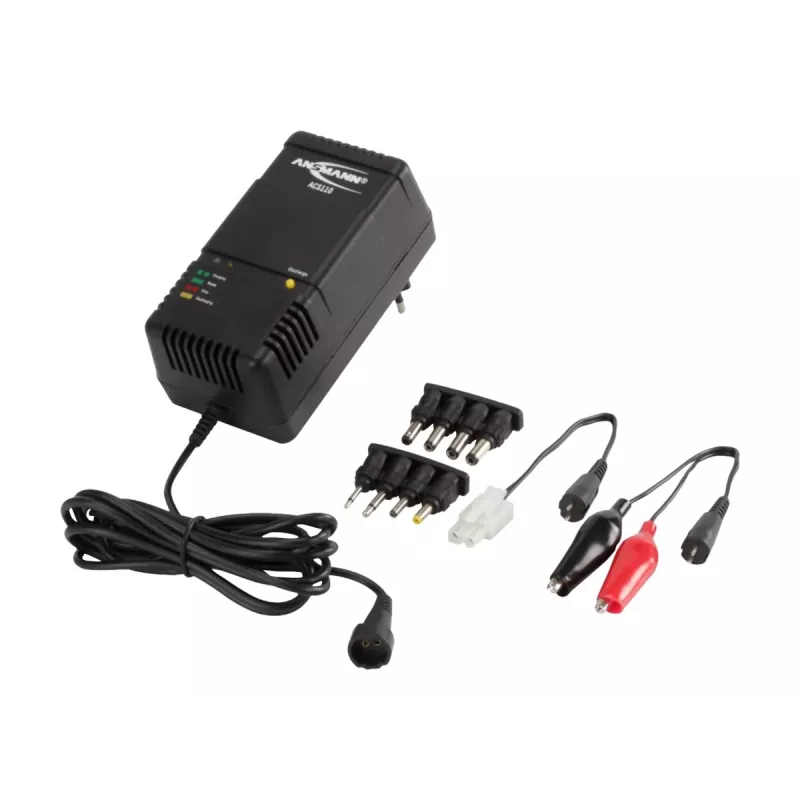

Connect the charger to mains power (100–240 V AC). Select and attach the appropriate output connector to the battery pack using the supplied adapter cable (Tamiya socket, crocodile clips or one of the eight standard output plugs). If required, enable the pre-discharge function; after pre-discharge the charger will automatically switch to the charge cycle. The charger detects the number of cells and applies the correct charging voltage. Monitor the LED: flashing green indicates active charging, steady yellow indicates discharging, and flashing red indicates an error. When fully charged the LED stays green and the charger will switch to trickle charge.

Recommendations

Use the supplied connectors and observe correct polarity when connecting the battery pack. Avoid charging damaged or swollen cells. For long-term storage, keep batteries at a moderate state of charge and use the charger’s trickle function to maintain full packs. Ensure adequate ventilation and operate within the stated mains voltage range.
