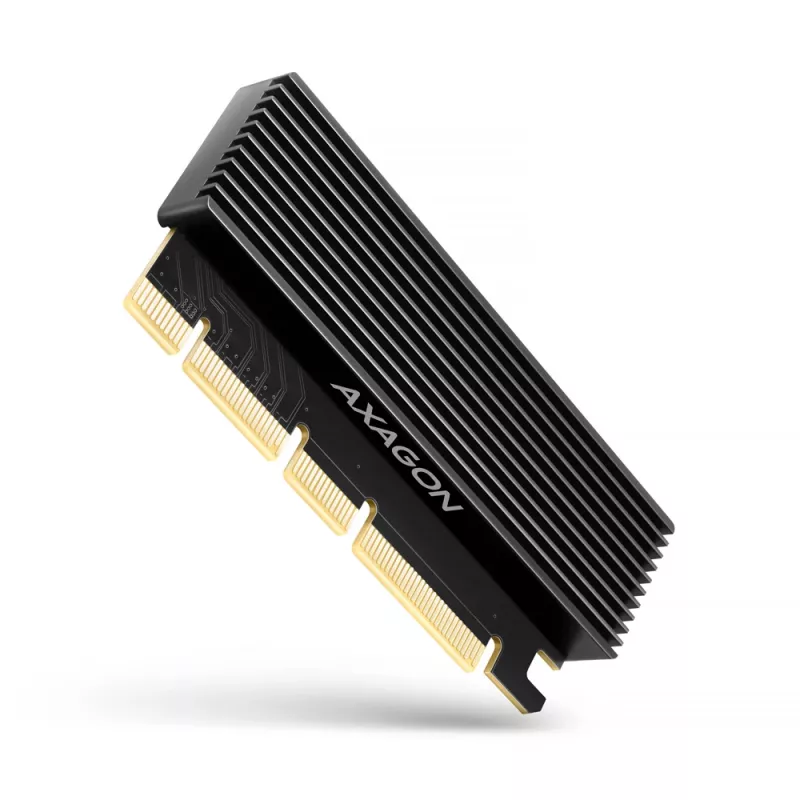

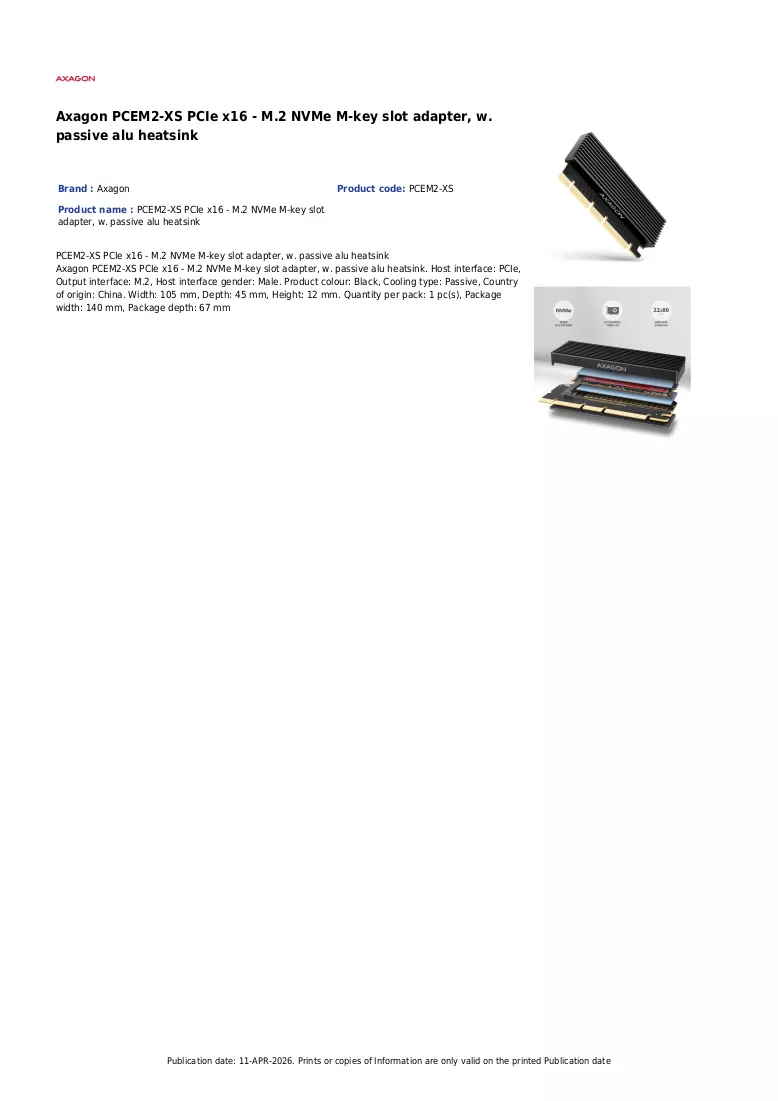

Axagon PCEM2-XS PCIe x16 - M.2 NVMe M-Key-sovitin, passiivisella alumiinijäähdytyselementillä

The AXAGON PCEM2-XS internal adapter enables installation of an NVMe M.2 SSD into a desktop computer via a PCI-Express slot. It supports single-sided and double-sided NVMe (PCIe) M.2 drives up to 22x80 mm (2280) and provides passive cooling through a ribbed aluminium cover and thermal pads to improve heat dissipation. The adapter is powered directly from the PCIe bus and offers plug-and-play operation with no additional drivers required.

Advantages

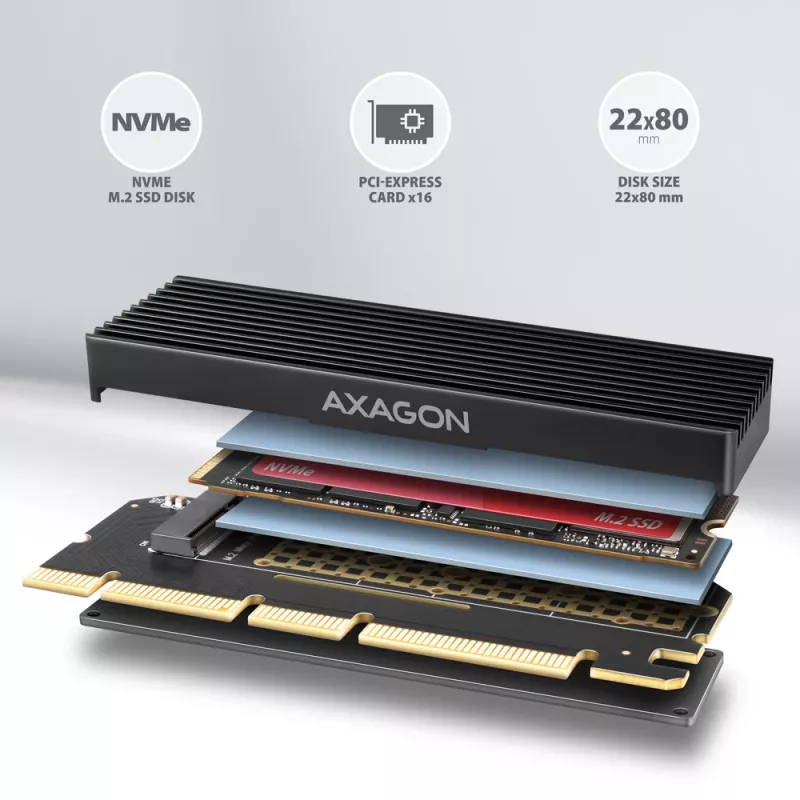

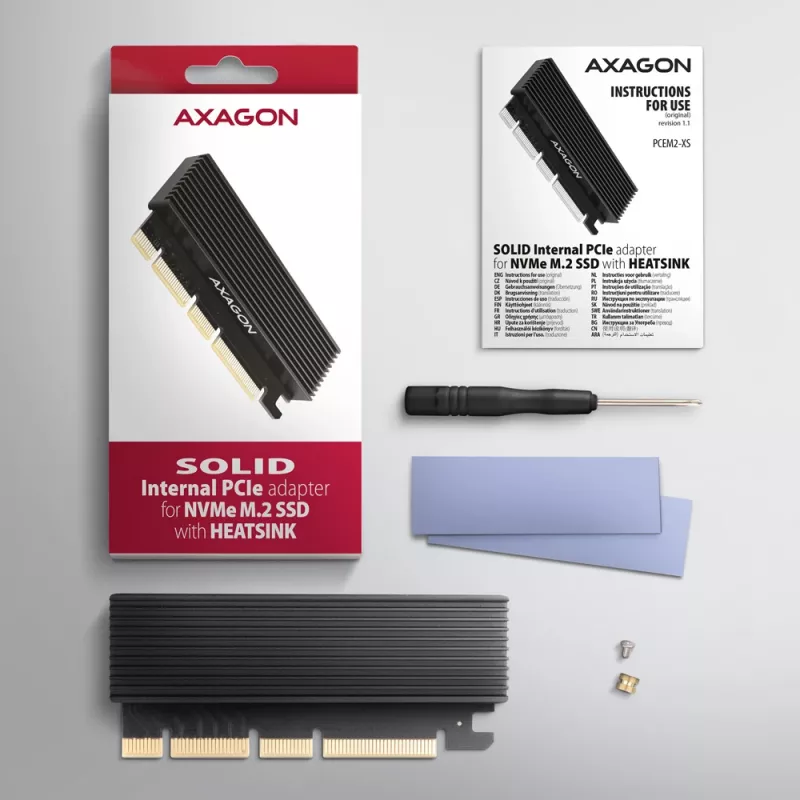

The adapter supports PCI-Express versions up to 5.0 and works in x4/x8/x16 slots, allowing maximum transfer speeds from NVMe SSDs. Its aluminium heatsink with supplied thermal conductive pads cools both sides of the M.2 drive, improving reliability under load. LED indication shows connection and data transfer status. Compact dimensions and tool kit included simplify installation into desktop systems without an M.2 slot.

Suitable for

• Upgrading a desktop PC that lacks an M.2 slot
• Installing NVMe M.2 SSDs (sizes 2230/2242/2260/2280)
• Use with PCIe 5.0/4.0/3.0 systems to achieve high transfer rates
• Environments requiring passive cooling for M.2 drives

Key specifications

• Host interface: PCI-Express (compatible with PCIe 5.0 / 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a)
• PCIe lane width: 4-lane (compatible with x4 / x8 / x16 slots)
• Output: NGFF 75-pin M-key slot for NVMe (PCIe) M.2 SSD
• Supported M.2 sizes: 2230, 2242, 2260, 2280 (up to 22x80 mm)

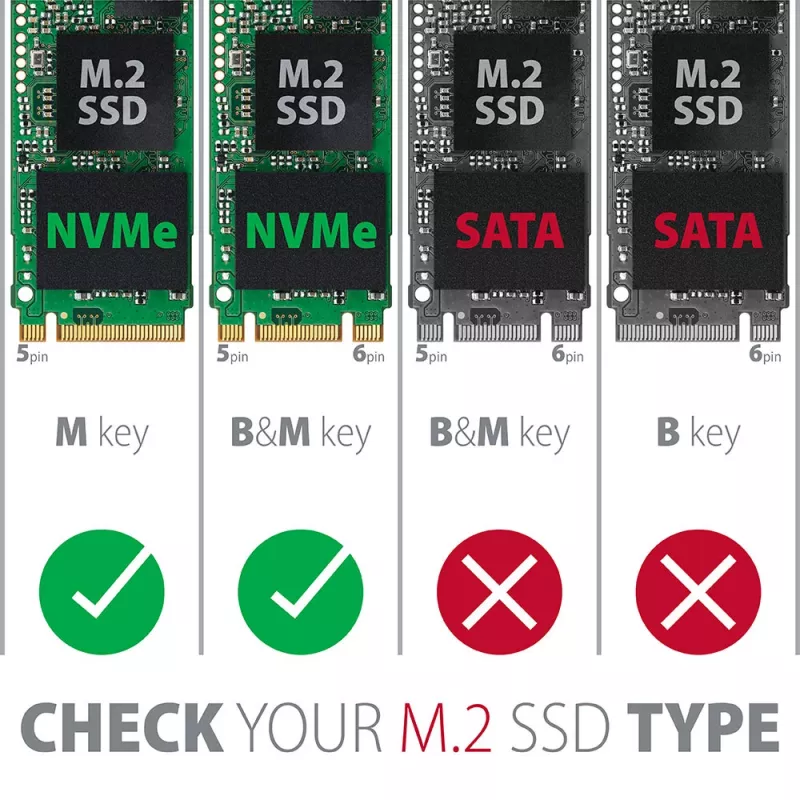

• Supports M-key and B+M key NVMe M.2 SSDs, one-sided and double-sided, no capacity limit

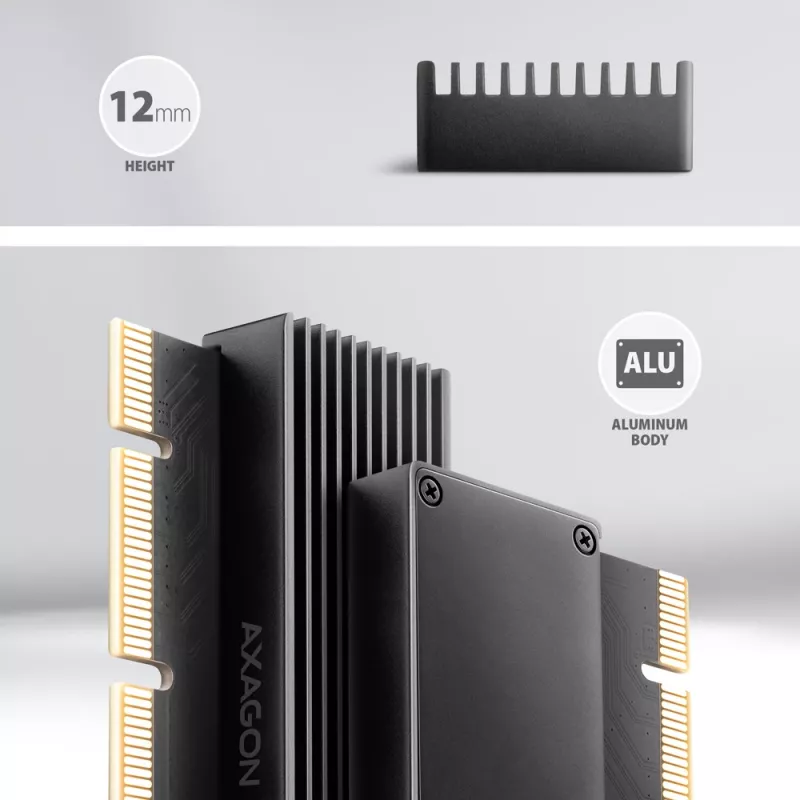

• Passive cooling: ribbed aluminium cover, thermal pads and copper vents
• Plug and Play, supports booting from SSD
• Dimensions: 105 x 45 x 12 mm; Weight: 50 g
• Power: powered from PCI-Express slot, no external power required
• Supported OS: Windows, Linux (Windows 7 support depends on SSD manufacturer)

How to use

Turn off and unplug the PC, insert the AXAGON PCEM2-XS into a free PCIe x4/x8/x16 slot and secure it. Place the NVMe M.2 SSD into the M-key slot at the correct angle and fasten it with the supplied mounting screw. Apply the supplied thermal pads between the drive and the aluminium heatsink, then attach the ribbed cover to ensure contact with the pads. Reassemble the PC, power it on and verify LED indication for connection. Install or configure your operating system to recognize the new NVMe drive if required.

Recommendations

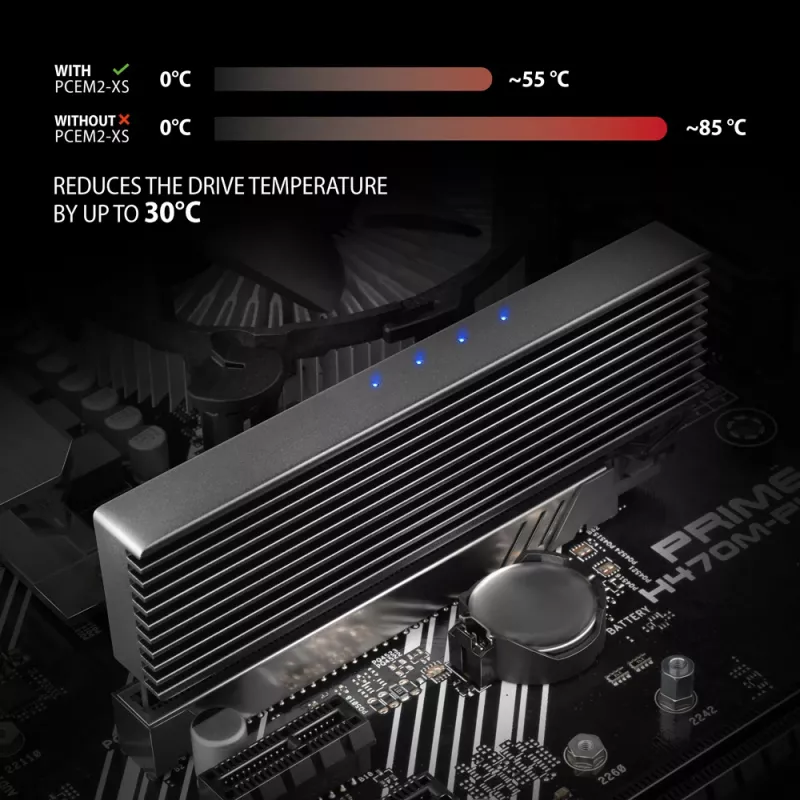

For optimal cooling, ensure the adapter has sufficient airflow inside the case and use the supplied thermal pads correctly. When using high-performance PCIe 5.0 NVMe SSDs, verify motherboard BIOS settings and SSD compatibility for booting if needed.
