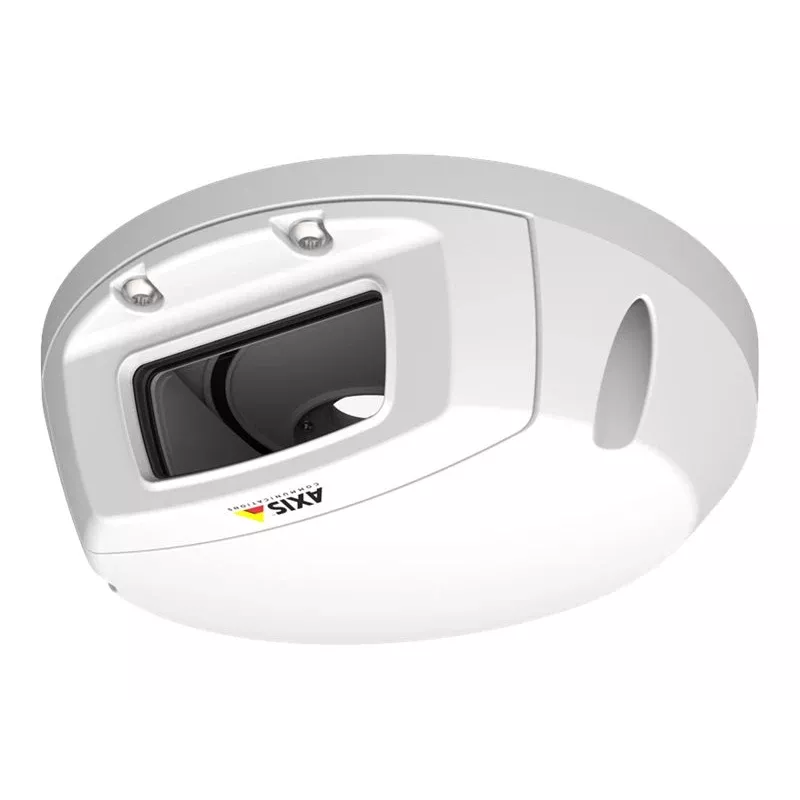

AXIS T96B05 ulkokotelo AXIS P39-R-sarjan kameroille

The AXIS T96B05 is a robust outdoor camera housing designed to protect AXIS P39-R Series network cameras in harsh environments. Constructed from durable aluminum with IP66, NEMA 4X, and IK10 ratings, it ensures reliable operation in extreme temperatures from -40 °C to 60 °C. The housing features an integrated heater and fan for optimal performance, and supports Power over Ethernet (PoE) for easy installation.

Advantages

This housing provides superior protection against dust, water, and vandalism, making it ideal for outdoor surveillance. The integrated heater and fan maintain a stable internal temperature, preventing condensation and ensuring clear image capture. Its NEMA 4X rating offers excellent corrosion resistance, extending the product's lifespan in coastal or industrial environments.

Suitable for

• AXIS P3904-R, P3904-R M12, P3905-RE, and P3905-RE M12 network cameras
• Outdoor surveillance in commercial, industrial, and residential settings
• Wall, pole, or corner mounting with included bracket

Key specifications

• Product Type: Camera Housing
• Housing Material: Aluminum
• Environmental Protection: IP66, NEMA 4X
• Vandal Resistance: IK10
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Humidity Range: 10-100% RH (condensing)
• Compatibility: AXIS P39-R Series (P3904-R, P3904-R M12, P3905-RE, P3905-RE M12)
• Integrated Features: Heater and Fan
• Power Input: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
• Mounting Options: Wall, Pole, Corner (mounting bracket included)
• Color: White
• Cable Management: Integrated
• Certifications: CE, FCC, RCM, VCCI, KC, UL, cUL
• Designed For: Outdoor use
• Corrosion Resistance: Yes (NEMA 4X rated)

Recommendations

For optimal performance, pair the AXIS T96B05 with AXIS P39-R Series cameras. Ensure proper cable management and use a PoE switch or injector compliant with IEEE 802.3af/at. Regular maintenance of the heater and fan is recommended for continuous operation in extreme conditions.
