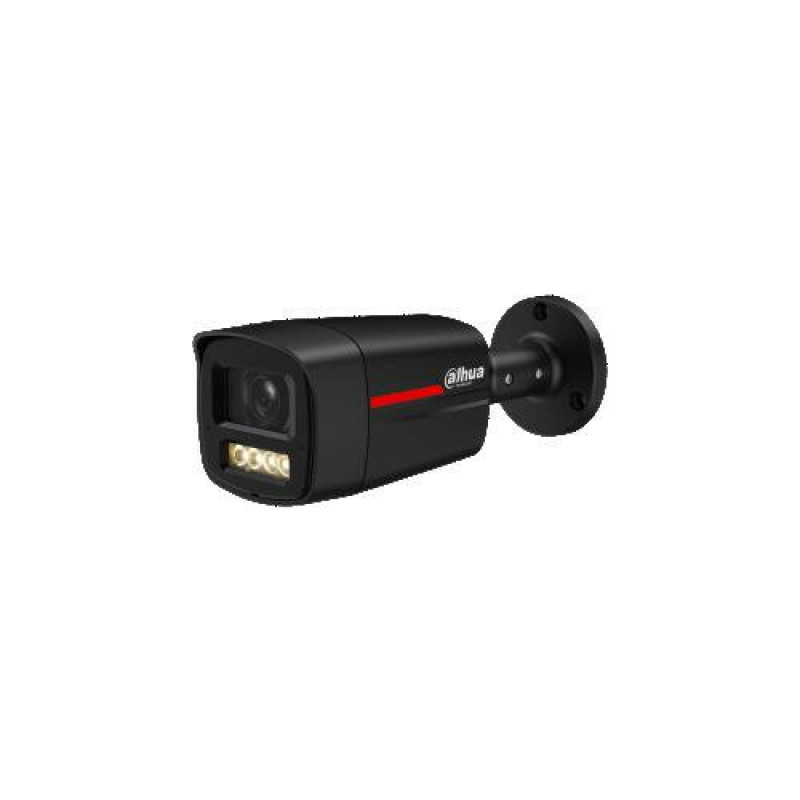

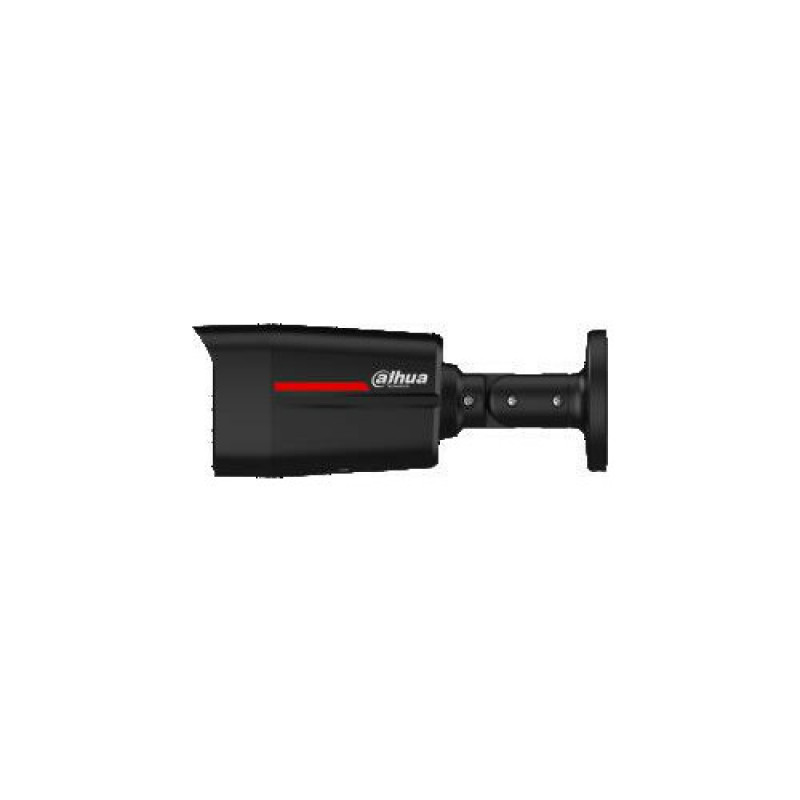

Dahua IPC-HFW2249TL-S-LED-0280B-PROX-BLK 2MP luoti-IP-kamera, 2,8 mm, musta

The Dahua IPC-HFW2249TL-S-LED-0280B-PROX-BLK is a wired outdoor bullet IP security camera delivering 2 MP Full HD resolution up to 1920 × 1080 px at 25/30 fps. It combines a 1/1.8" CMOS sensor with Ultra Starlight low-light sensitivity and built-in warm light illumination reaching up to 20 m. Housed in an IP67-rated enclosure, it supports flexible 12 V DC or PoE power and advanced AI-based video analytics.

Key features

• 2 MP Full HD image quality up to 1920 × 1080 px at 25/30 fps
• 1/1.8" CMOS sensor with Ultra Starlight low-light sensitivity
• Built-in warm light illumination with up to 20 m range
• H.265 and Smart Codec (AI H.264 / AI H.265) compression
• AI intelligent video analysis with intrusion and line-crossing detection and precise person and vehicle classification
• SMD Plus intelligent motion detection reducing false alarms
• WDR, 3D NR, HLC and BLC for demanding lighting conditions
• Two built-in microphones for audio recording without additional devices
• MicroSD card support up to 512 GB
• Flexible 12 V DC or PoE power
• IP67 protection against dust and harsh weather

Specifications

• Brand: Dahua
• MPN: IPC-HFW2249TL-S-LED-0280B-PROX-BLK
• Product type: IP Security Camera
• Maximum resolution: 2 MP
• Form factor: Bullet
• Placement supported: Outdoor
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Image sensor: 1/1.8" CMOS
• Max. resolution: 1920 × 1080 px
• ROM: 128 MB
• RAM: 128 MB
• Scanning system: Progressive
• Electronic shutter: Auto / manual, 1/3 s – 1/100 000 s
• Minimum illumination: 0.00003 lx @ F0.8
• Signal-to-noise ratio (S/N): >56 dB
• Low-light sensitivity: Ultra Starlight
• Illumination range: Up to 20 m (warm light)
• Illumination control: Automatic / manual
• Number of illuminators: 4 (warm light)
• Position adjustment: Pan 0°–360°; tilt 0°–90°; rotation 0°–360°
• SUPERCAP: 0.07 F
• Lens type: Fixed focal
• Lens mount: M18
• Focal length: 2.8 mm
• Max. aperture: F0.8
• Field of view: Horizontal 110°; vertical 58°; diagonal 131°
• Aperture control: Fixed
• Minimum focusing distance: 1.3 m
• DORI – detection: 41.3 m
• DORI – observation: 16.5 m
• DORI – recognition: 8.3 m
• DORI – identification: 4.1 m
• Video compression: H.265 / H.264 / H.264H / H.264B / MJPEG*
• AI coding: Super AI Coding H.265 / H.264; Smart H.265+ / Smart H.264+
• Main stream: 1920 × 1080 @ 1–25/30 fps
• Sub stream: 704 × 576 @ 1–25/30 fps / 704 × 480 @ 1–30 fps
• Third stream: 352 × 288 @ 1 fps / 352 × 240 @ 1 fps
• Number of streams: 3
• Supported resolutions: 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1; VGA; CIF
• Bit rate control: VBR / CBR
• Bitrate H.264: 32 kb/s – 6144 kb/s
• Bitrate H.265: 12 kb/s – 6144 kb/s
• Default bitrate 1080p: 2048 kb/s
• Day/night mode: Colour / black and white
• WDR: 120 dB
• BLC: Yes
• HLC: Yes
• Noise reduction: 3D NR
• White balance: Auto / natural / street lamp / outdoor / manual / regional settings
• Gain control: Automatic / manual
• Motion detection: On/off; 4 rectangular areas
• ROI – region of interest: Yes, 4 areas
• Smart illumination: Yes
• Image rotation: 0° / 90° / 180° / 270°
• Mirroring: Yes
• Privacy masks: 4 areas
• LDC distortion correction: Yes
• Perimeter protection IVS: Intrusion / line crossing
• Object classification: Precise detection and classification of persons and vehicles
• Intelligent motion detection: SMD Plus
• Alarm events: No SD card; SD card full; SD card error; network disconnection; IP conflict; unauthorised access; motion detection; video tampering; line crossing; intrusion; audio detection; voltage detection; SMD; security exception
• Microphone: 2 built-in microphones
• Audio compression: G.711a / G.711Mu / PCM / G.726
• Audio sampling: 8 kHz / 16 kHz
• Network port: RJ-45
