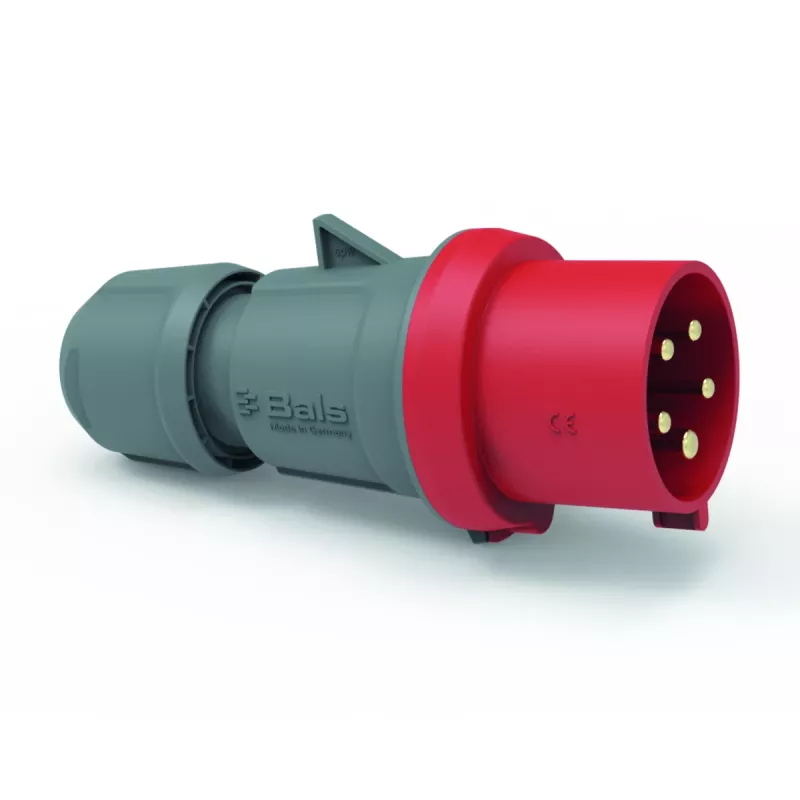

Bals INNOLINQ QC teollisuuspistoke 32A 5-napainen 400V 6h IP54 punainen

Industrial plug with screwless quick-connect terminals for rapid, tool-free wiring in 400 V three-phase systems. The 32 A, 5-pole CEE plug features a 6h earth contact position and IP54 protection, making it a reliable power interface for demanding environments.

Advantages

The screwless quick-connect terminals reduce wiring time significantly, allowing for fast, tool-free installation. The robust polyamide housing withstands mechanical stress, and the brass contacts provide excellent conductivity and corrosion resistance. The cable gland with a wide clamping range (11–23 mm) ensures reliable strain relief and sealing.

Suitable for

• Industrial machinery and equipment requiring 32 A three-phase power
• Construction sites and temporary power distribution
• Agricultural and outdoor applications with exposure to moisture and dust
• Workshops and manufacturing facilities

Key specifications

• Current rating: 32 A
• Voltage: 400 V
• Poles: 5 (3P+N+PE)
• Earth contact position: 6h
• Protection: IP54
• Connection: Screwless quick-connect
• Housing material: Polyamide (PA6)
• Contact material: Brass
• Cable diameter: 11–23 mm
• Standards: IEC 60309-1, IEC 60309-2
• Operating temperature: -25°C to +40°C

Recommendations

For optimal performance, pair with a matching CEE socket outlet and use flexible rubber cables within the specified diameter range. Regularly inspect the cable gland and contacts for signs of wear in harsh environments.
