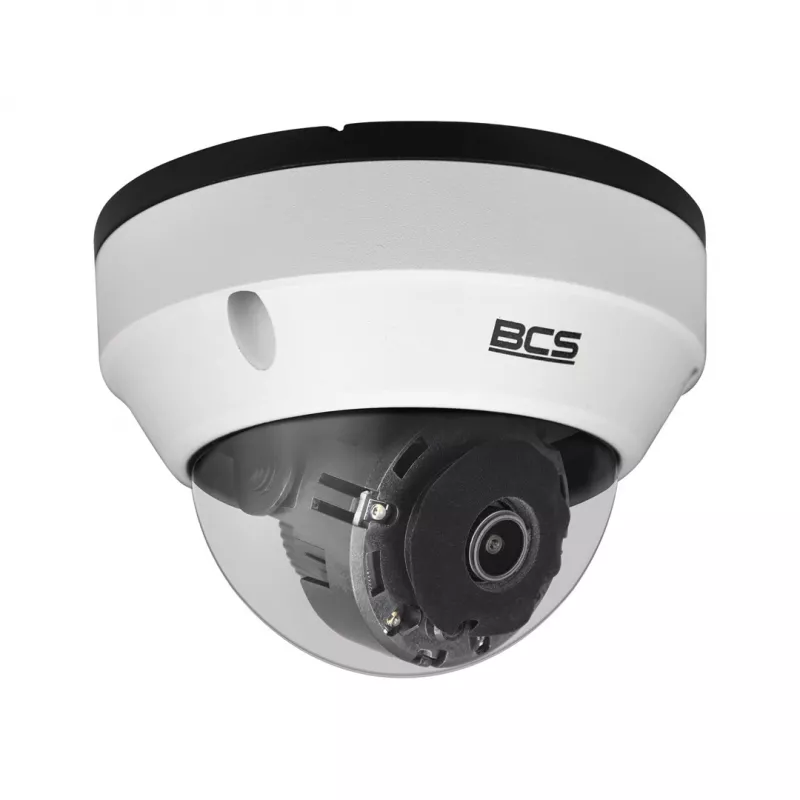

BCS 8MP IP-dome-kamera BCS-U-DIP38FSR3

The BCS-U-DIP38FSR3 is a high-performance 8MP IP dome camera designed for professional indoor and outdoor surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 3840x2160 resolution at 20 fps. With a fixed 2.8 mm lens providing a 105° horizontal field of view, this camera ensures comprehensive coverage. Built-in IR LEDs offer night vision up to 30 meters, while IP67 and IK10 ratings guarantee durability against dust, water, and vandalism.

Advantages

This camera combines high-resolution imaging with robust construction. The 120dB WDR and 3D DNR technologies enhance image quality in challenging lighting conditions. Smart analytics including motion detection, intrusion, line crossing, and region entry/exit provide intelligent monitoring. Power over Ethernet (PoE) simplifies installation, and the built-in microphone captures audio.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and industrial facilities
• Parking lots and outdoor perimeters
• Schools and public institutions

Key specifications

• 8MP resolution (3840x2160) at 20 fps
• 1/2.7" CMOS sensor
• Fixed 2.8 mm lens, 105° horizontal angle
• IR night vision up to 30 m
• H.265+/H.265/H.264+/H.264 compression
• IP67 weatherproof, IK10 vandal-resistant
• PoE (802.3af) and DC 12V power
• Built-in microphone
• MicroSD slot up to 256 GB
• Smart analytics: motion, intrusion, line crossing, region entry/exit

Recommendations

For optimal performance, use a PoE switch or injector. Ensure the mounting surface can support the camera's weight. For outdoor installations, verify proper sealing of connections.
