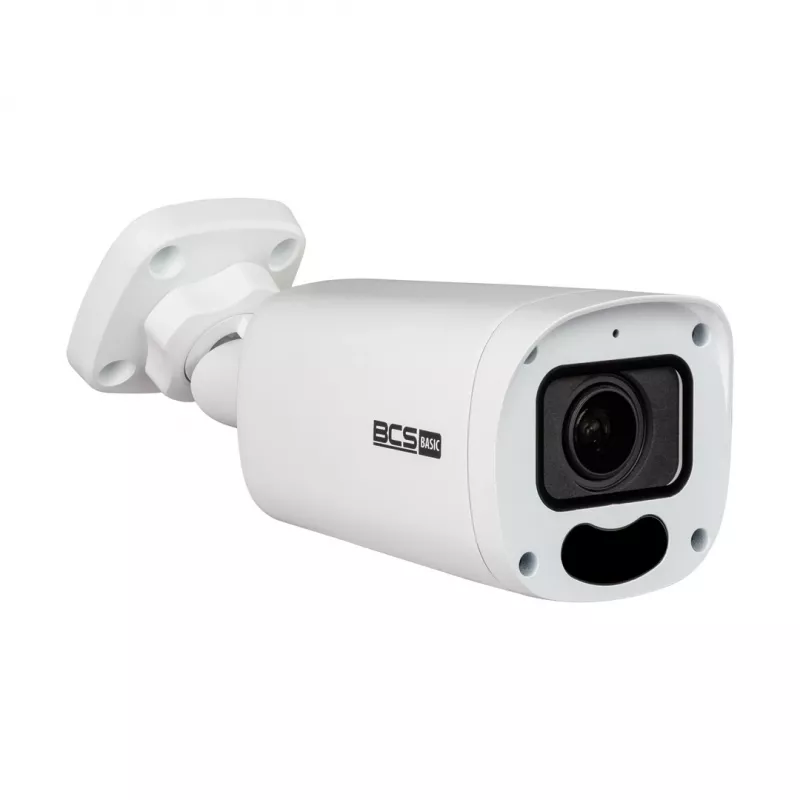

BCS BASIC BCS-B-TIP45VSR5(2.0) 5MP IP-putkikamera, 2,8-12mm motorisoitu zoom

The BCS BASIC BCS-B-TIP45VSR5(2.0) is a 5MP IP bullet camera with a 2.8–12mm motorized zoom lens and IR illumination up to 50m. It features a 1/2.7" PS CMOS sensor, SkyLight technology, WDR 120dB, a built-in microphone, and an IP67-rated housing.

Key features

• 5MP IP bullet camera
• 1/2.7" PS CMOS sensor
• SkyLight technology
• WDR 120dB
• 2.8–12mm motorized zoom lens
• IR range up to 50m
• Built-in microphone
• IP67 housing

Specifications

• Model: BCS-B-TIP45VSR5(2.0)
• Product line: BCS BASIC
• Camera type: Bullet
• Resolution: 5MP
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2880(H)×1620(V)
• Lens: motorized zoom
• Focal length: 2.8–12mm
• Aperture: F1.8
• Focus: Auto / manual
• Iris: Auto
• Digital zoom: 16×
• Angle of view: H: 102.79°–30.86° V: 54.5°–17.49° D: 106.94°–35.49°
• DORI: Detect 63270m / Observe 25108m / Recognize 1354m / Identify 627m
• Camera sensitivity: 0.005Lux(F1.8,AGC) 0Lux(B/W,IR)
• S/N ratio: 56dB
• White balance: Auto / manual
• WDR: 120dB
• Backlight compensation: BLC / HLC / WDR(120dB)
• Shutter: Auto / manual 1–1/100000s
• Gain control: Auto / manual
• Noise reduction: 2D/3D DNR
• Image rotation: Mirror, flip 180°
• Number of streams: 2
• Stream resolutions: 5M(2880×1620) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288)
• Main stream: 2880×1620@25fps 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps
• Second stream: 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps
• Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Day/night: ICR
• Illuminator type: IR LED
• Illuminator range: 50m
• Microphone: Yes
• Audio compression: G.711
• Memory card slot: microSD 256GB
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Motion detection: 4
• Privacy masks: 4
• Network: RJ-45 10/100Mbps
• Compliance: ONVIF(S/G/T)
• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP
• Power supply: 12VDC / PoE(802.3af)
• Power consumption: max 7.5W
• Housing colour: White
• IP rating: IP67
• Operating conditions: -30°C–+60°C max 95% RH
• Dimensions: 198×74×74mm
• Weight: 0.51kg
