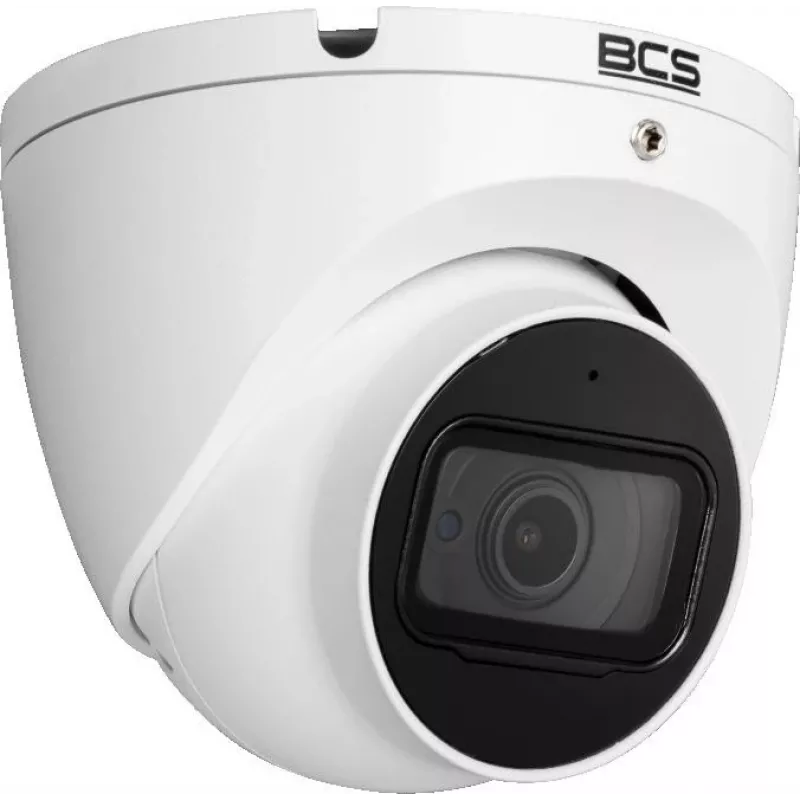

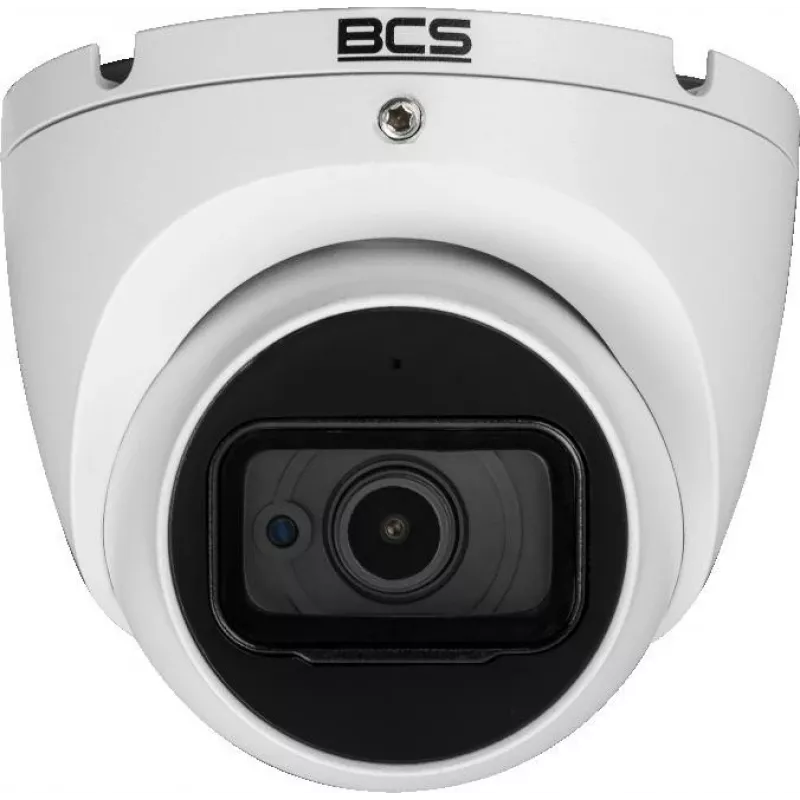

BCS EA18FWR3(2) 8MP 4-in-1 kupukamera, 3,6mm, IR 30m, IP66

The BCS EA18FWR3(2) is a high-performance 8-megapixel dome camera designed for professional surveillance. Featuring a 1/2.8" CMOS SONY STARVIS sensor, it delivers crisp 3840x2160 resolution. With 4-in-1 video output (AHD/CVI/TVI/CVBS), it offers flexible integration. The fixed 3.6mm lens provides an 87° horizontal view, while Smart IR technology ensures clear images up to 30 meters in total darkness. Its IP66-rated metal housing withstands harsh weather, making it suitable for both indoor and outdoor use.

Advantages

Ultra HD 8MP resolution captures fine details. 4-in-1 compatibility works with most DVRs. Smart IR adjusts intensity to prevent overexposure. DWDR and 2D/3D DNR enhance image quality in challenging lighting. Low power consumption (max 4W) reduces operating costs.

Suitable for

• Retail stores and shops
• Office buildings and warehouses
• Residential properties
• Parking lots and entrances

Key specifications

• Sensor: 1/2.8" CMOS SONY STARVIS
• Resolution: 8 MP (3840x2160)
• Video Output: AHD, CVI, TVI, CVBS (4-in-1)
• Lens: Fixed 3.6mm
• Horizontal Angle: 87°
• IR Range: Up to 30m
• Min. Illumination: 0.001 Lux (Color), 0 Lux (IR On)
• WDR: DWDR
• Noise Reduction: 2D/3D DNR
• Housing: Metal, IP66
• Power: DC 12V, max 4W
• Connector: BNC
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a high-quality DC 12V power supply and compatible 4-in-1 DVR. Ensure proper cable connections and avoid direct exposure to extreme conditions beyond the specified temperature range.
