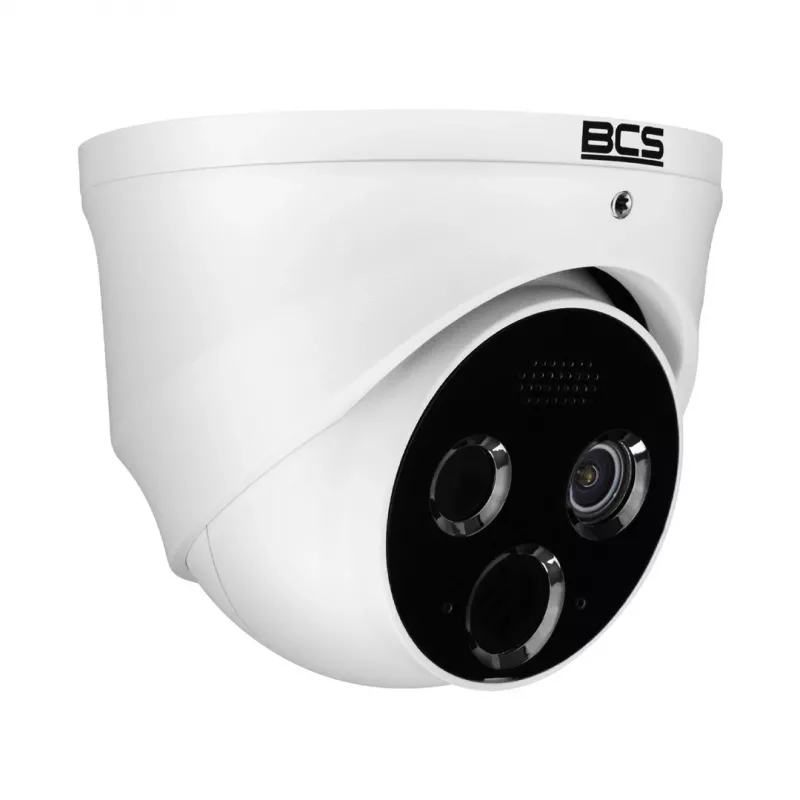

BCS-L-EIP541FSR2-FDT(0401) 4MP lämpö-IP-kamera palontunnistuksella

The BCS-L-EIP541FSR2-FDT(0401) is a professional dual-spectrum IP camera combining a 4MP visible light sensor with a 256x192 thermal sensor. Designed for critical infrastructure protection, it offers fire detection, temperature anomaly alarms, and intrusion detection. With IP67 weatherproofing and PoE support, it is ideal for outdoor perimeter security and industrial monitoring.

Advantages

This camera provides early fire detection through thermal imaging, reducing false alarms. The dual-spectrum design ensures clear identification day and night. Easy installation with PoE and a rugged IP67 housing make it suitable for harsh environments.

Suitable for

• Industrial facilities and warehouses
• Perimeter security for critical infrastructure
• Temperature monitoring in electrical rooms or server farms
• Outdoor surveillance in extreme weather conditions

Key specifications

• Thermal sensor: 256x192 resolution, 4mm lens, 56°x42° FOV
• Visible sensor: 4MP (2688x1520), 4mm lens, 84°x45° FOV
• Temperature measurement range: -20°C to +550°C, accuracy ±2°C or ±2%
• Video compression: H.265/H.264/MJPEG
• IR illumination: up to 30m
• Network: 1x RJ-45 10/100Mbps, PoE (802.3af)
• Power: 12V DC or PoE
• IP67, operating temperature -30°C to +60°C
• Local storage: MicroSD up to 256GB
• Audio I/O: 1 input / 1 output
• Alarm I/O: 2 input / 2 output

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted in a location with clear line of sight for thermal detection. Regular firmware updates are recommended to maintain security and functionality.
