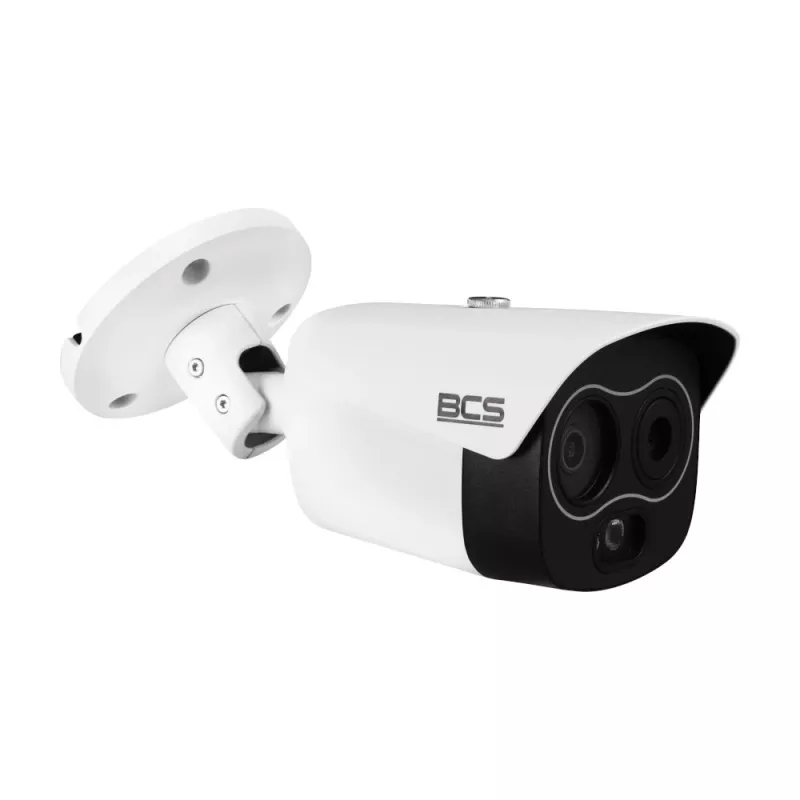

BCS-L-TIP242FR3L-TH-AI1 lämpö- ja optinen IP-kamera 4MP 256x192

The BCS-L-TIP242FR3L-TH-AI1 is a dual-sensor thermal and optical IP camera designed for professional surveillance and temperature monitoring. Combining a 256x192 thermal sensor with a 4MP optical sensor, it delivers clear imaging day and night. Equipped with AI features such as human/vehicle detection, fire detection, and temperature anomaly detection, it is ideal for critical infrastructure, industrial sites, and perimeter security.

Advantages

This camera offers reliable temperature measurement from -20°C to +150°C with high accuracy (±2°C or ±2%). Its IP67 rating ensures protection against dust and water, making it suitable for outdoor use. With H.265+ compression, it reduces bandwidth and storage requirements without compromising image quality.

Suitable for

• Industrial facilities requiring temperature monitoring
• Perimeter security with human/vehicle detection
• Fire prevention in warehouses and data centers
• Critical infrastructure protection

Key specifications

• Thermal Sensor: 256x192 pixels, NETD <50mK
• Optical Sensor: 4MP (2688x1520)
• Thermal Lens: 3.5mm F1.0
• Optical Lens: 4mm F1.0
• Temperature Range: -20°C to +150°C
• AI: Human/Vehicle, Fire, Temperature anomaly detection
• Video Compression: H.265+/H.265/H.264+/H.264
• IP Rating: IP67
• Power: DC12V / PoE (802.3af)
• Audio: 1 input, 1 output
• Alarm: 2 inputs, 1 output
• Local Storage: MicroSD up to 256GB
• Network: 1x RJ-45 10/100Mbps
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or DC12V power supply. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera in a location with a clear view of the area to be monitored.
