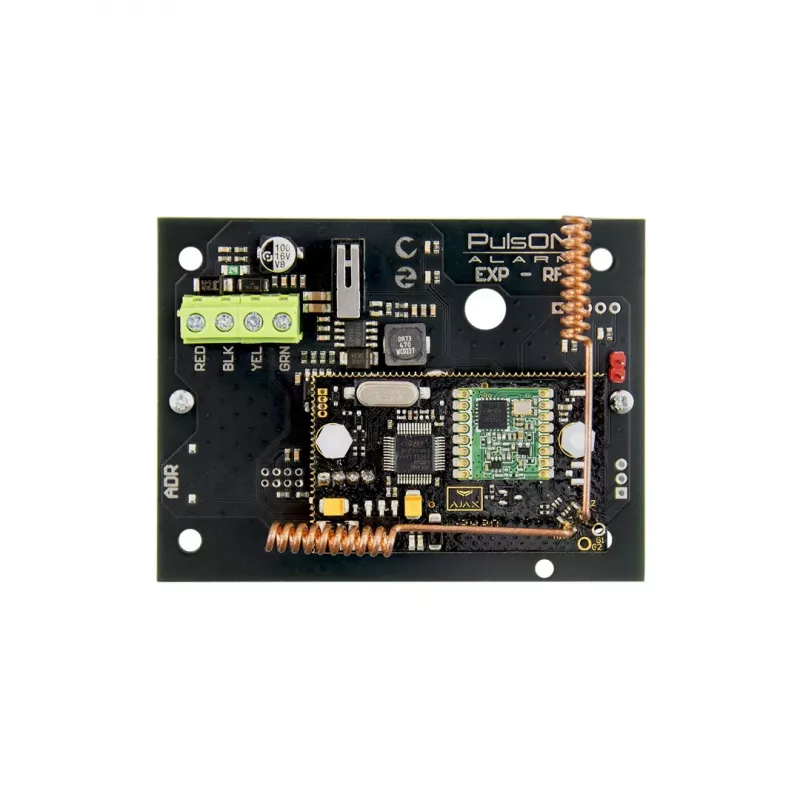

BCS PulsON EXP-RF(Ajax) liitetyn ilmaisimen integrointimoduuli

The BCS PulsON EXP-RF(Ajax) is a wired detector integration module designed for Ajax security systems. It enables seamless connection of up to 18 wired zones to Ajax hubs with Fibra support, such as the Hub Hybrid. This module provides reliable communication and flexible configuration for various alarm types.

Advantages

Supports multiple zone connection types (NC, NO, EOL, 2EOL, 3EOL) for versatile detector integration. Features remote firmware updates and tamper protection for enhanced security. Includes backup battery support for uninterrupted operation.

Suitable for

• Integrating wired detectors into Ajax security systems
• Commercial and residential security installations
• Upgrading existing wired alarm systems to Ajax platform

Key specifications

• Product Type: Wired Detector Integration Module
• Communication Protocol: Fibra (Wired)
• Compatibility: Ajax Hubs with Fibra support (e.g., Hub Hybrid)
• Number of Wired Zones: 18
• Wired Zone Connection Types: NC, NO, EOL, 2EOL, 3EOL
• Module Power Supply: 110-240V AC
• External Detector Power Output: 10.5-15V DC, up to 1A
• Backup Battery Support: Yes (12V, 4 Ah or 7 Ah)
• Tamper Protection: Yes (Case opening, detachment)
• Max Fibra Cable Length: 2000 m (Twisted Pair U/UTP cat.5)
• Operating Temperature Range: -10°C to +40°C
• Operating Humidity: Up to 75%
• Security Grade: Grade 2 (EN 50131)
• Installation Method: Indoor, Wall-mounted
• Enclosure Material: ABS Plastic
• Color: White
• Firmware Update: Remote
• Supported Alarm Types: Intrusion, Fire, Medical, Panic, Gas, Water Leak (configurable per zone)

Recommendations

For optimal performance, use twisted pair U/UTP cat.5 cable for Fibra connections. Ensure the module is installed indoors in a dry location. Configure zones according to detector type and desired alarm response.
