BEMKO PIR-liiketunnistin 1200W 180° IP65 musta

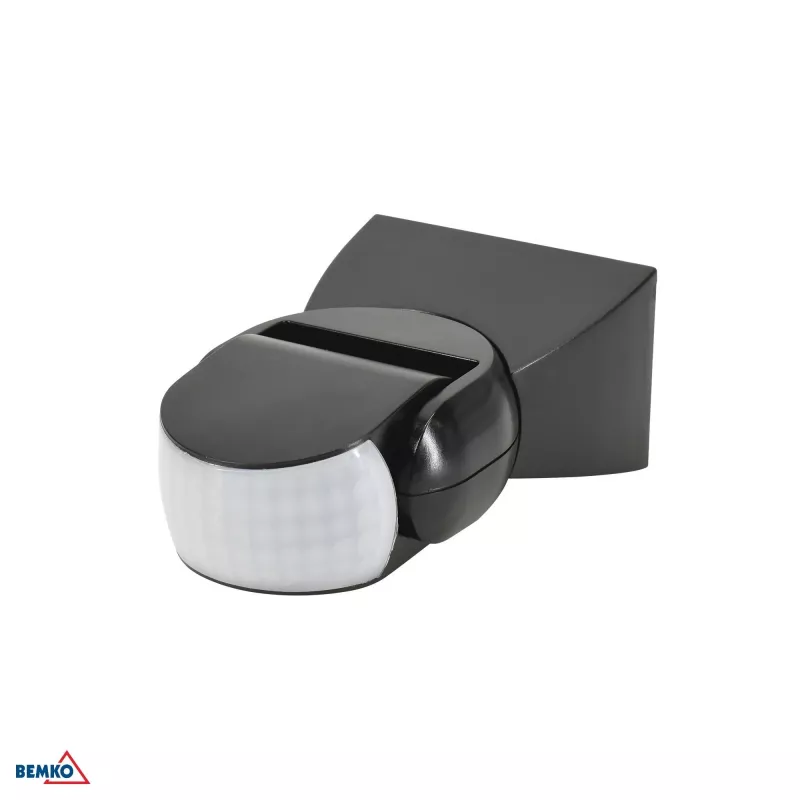

The BEMKO PIR Motion Sensor 1200W 180° IP65 Black is a high-performance passive infrared sensor designed for reliable motion detection in both indoor and outdoor environments. With a wide 180° detection angle and adjustable range up to 12 meters, it provides comprehensive coverage for residential, commercial, and industrial applications. Its robust IP65 rating ensures protection against dust and water jets, making it suitable for exposed locations.

Advantages

This motion sensor offers versatile control with adjustable time delay (10 seconds to 7 minutes) and light sensitivity (less than 3 to 2000 LUX), allowing you to customize operation based on ambient light and personal preference. It supports high loads up to 1200W incandescent or 300W LED/fluorescent, making it compatible with a wide range of lighting fixtures. The durable ABS construction and wide operating temperature range (-20°C to +40°C) ensure long-lasting performance in various climates.

Suitable for

• Automatic lighting control in hallways, staircases, and corridors
• Security lighting for gardens, driveways, and entrances
• Energy-saving automation in offices, warehouses, and garages
• Outdoor areas such as patios, balconies, and building perimeters

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 180°
• Max Incandescent Load: 1200W
• Max LED/Fluorescent Load: 300W
• IP Rating: IP65
• Colour: Black
• Power Supply: 220-240V AC, 50/60Hz
• Detection Distance: 5-12m (adjustable)
• Time Delay: 10s - 7min (adjustable)
• Light Sensitivity (LUX): <3-2000 LUX (adjustable)
• Installation Height: 1.8-2.5m
• Operating Temperature: -20°C to +40°C
• Operating Humidity: <93% RH
• Mounting Type: Wall/Surface Mount
• Material: ABS
• Detection Motion Speed: 0.6-1.5 m/s
• Application Environment: Outdoor/Indoor

Recommendations

For optimal performance, install the sensor at a height of 1.8-2.5 meters and avoid placing it near heat sources, air vents, or direct sunlight. Adjust the time delay and light sensitivity according to your specific needs. Ensure the power supply is disconnected during installation.
