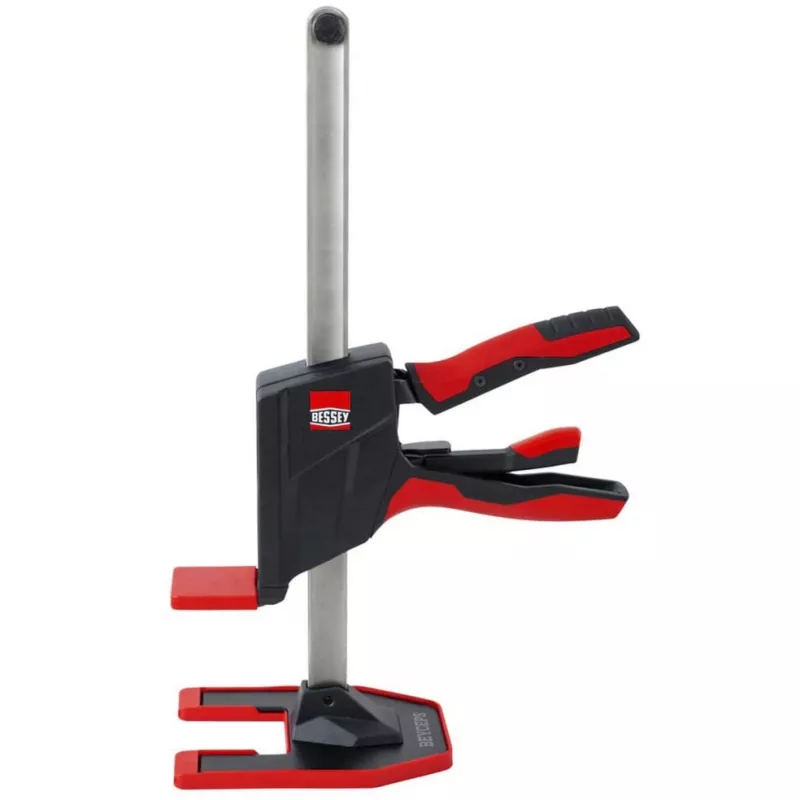

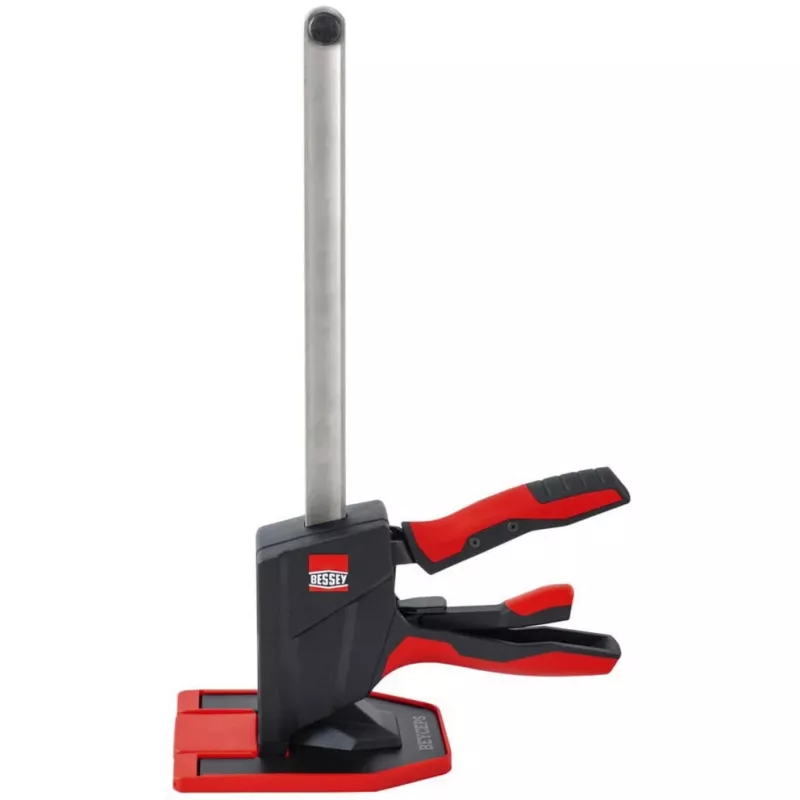

BESSEY BEY23-IK-SET BEYCEPS yhden käden asennustyökalu asennussarjalla

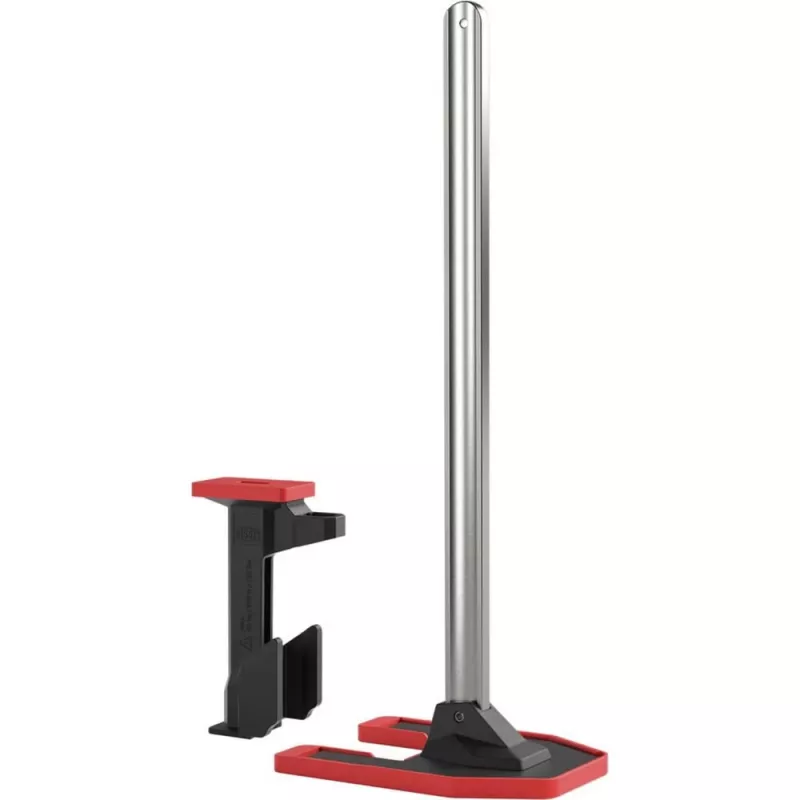

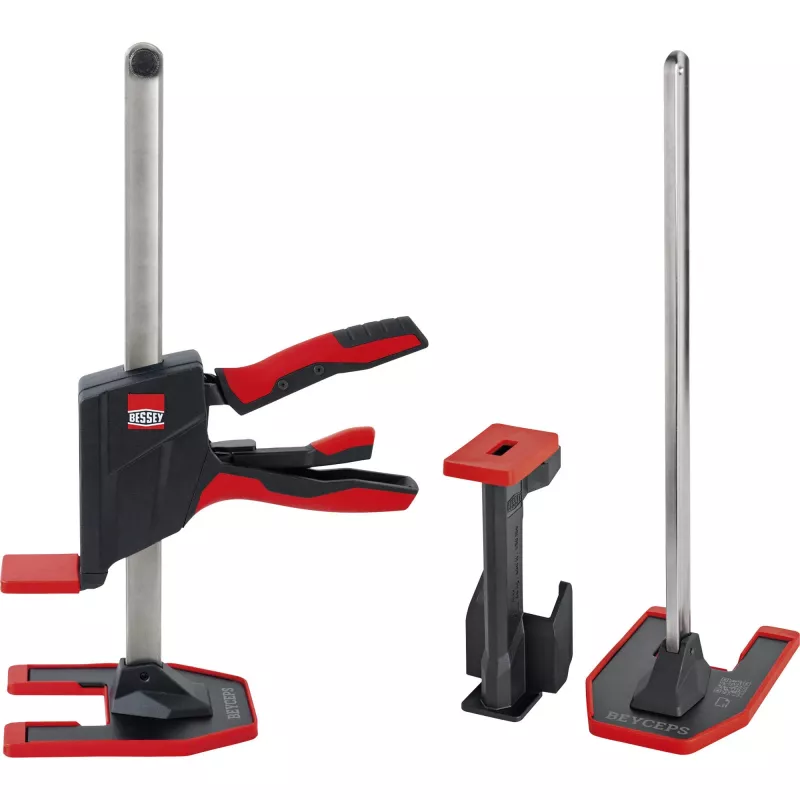

BESSEY BEY23-IK-SET combines one BEYCEPS BEY23 one-handed lifting tool with one BEY-IK installation kit containing an extension adapter and rail unit. It supports lifting, lowering and aligning workpieces during assembly. The BEY23 tool alone lifts up to 180 kg (1800 N); with the installation kit, the permitted load is up to 60 kg (600 N). Its lifting range is 5–230 mm without the stand protective cap. Tool-free conversion provides a 170–390 mm clamping range. The extension adapter supports 170–400 mm, or 392–620 mm with the additional rail. Separate lowering and release levers allow controlled adjustment. Protective caps help protect workpiece surfaces.

BEY23-IK-SET; BEY23 + BEY-IK; 5–230 / 170–390 / 170–400 / 392–620 mm; EAN 4008158052489
