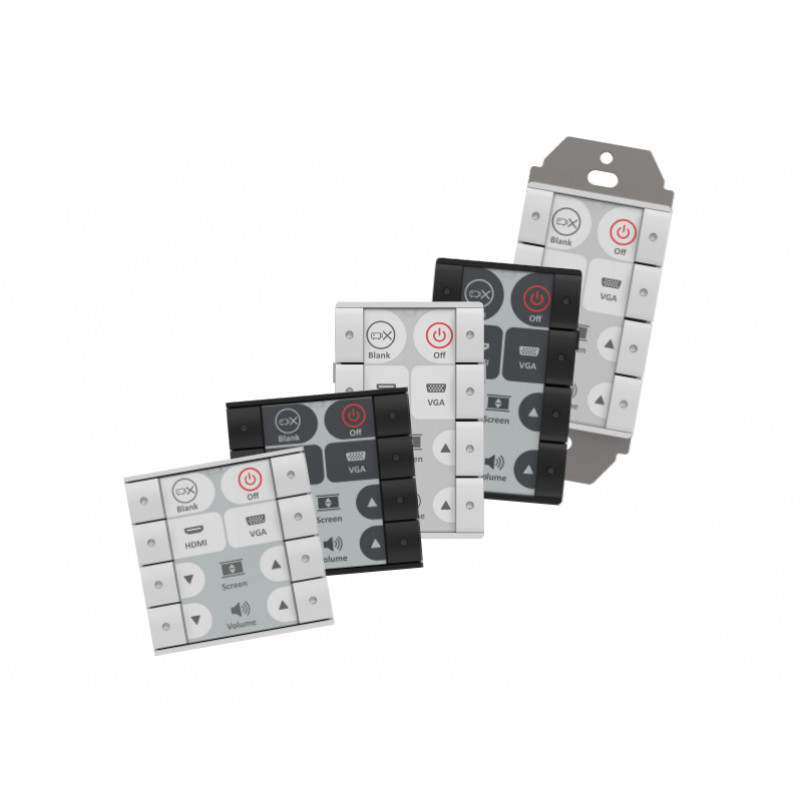

Biamp Impera Sierra II 8EUW

In a modern conference room, a presenter taps a single button on the wall to dim the lights, lower the projection screen, and switch the display to the laptop input. That seamless experience is powered by the Biamp Impera Sierra II 8EUW, an 8-button control pad engineered for European single-gang wall boxes. With programmable backlit buttons, it puts intuitive AV control at your fingertips—no app, no remote, just a clean wall-mounted interface.

Key specifications

• 8 programmable, backlit buttons with LED indicators
• European single-gang wall mount form factor
• Power over Ethernet (PoE) or optional 12V DC
• Connectivity: Ethernet, RS-232, IR, GPIO
• ARM9 400 MHz processor, 128 MB RAM, 256 MB flash
• High-impact plastic enclosure, white finish
• Operating temperature 0°C to 40°C, humidity 10% to 90% non-condensing
• CE, FCC, RoHS certified

Why choose it

The Sierra II 8EUW eliminates the need for cluttered remotes and complex touch panels in small to medium spaces. Its backlit buttons provide clear visual feedback even in darkened rooms, and PoE support means a single network cable handles both power and data. Configuration via Biamp Project Designer allows integrators to tailor each button to any command—volume, source selection, lighting scenes, or macros—making it a flexible centerpiece for any control system.

Ideal use cases

• Conference rooms and huddle spaces needing simple AV control
• Classrooms where instructors trigger preset modes (presentation, video, etc.)
• Boardrooms requiring discreet, wall-mounted control for lighting and shades
• Integration with Biamp Impera control systems for centralized management

Good to know

The unit fits standard European wall boxes (60 mm screw distance) and includes a white faceplate that blends with most interiors. For installations without PoE, an optional 12V DC power adapter can be used. The control pad is designed for reliable operation in typical indoor environments, and its high-impact plastic construction ensures durability in high-traffic areas. Firmware updates and configuration are managed through Biamp's Project Designer software, allowing remote deployment and monitoring when connected to the network.
