BIRA HARTTE XS00U-B sähkölukko XS-sarja 12-24V AC/DC Low Current vahvistettu

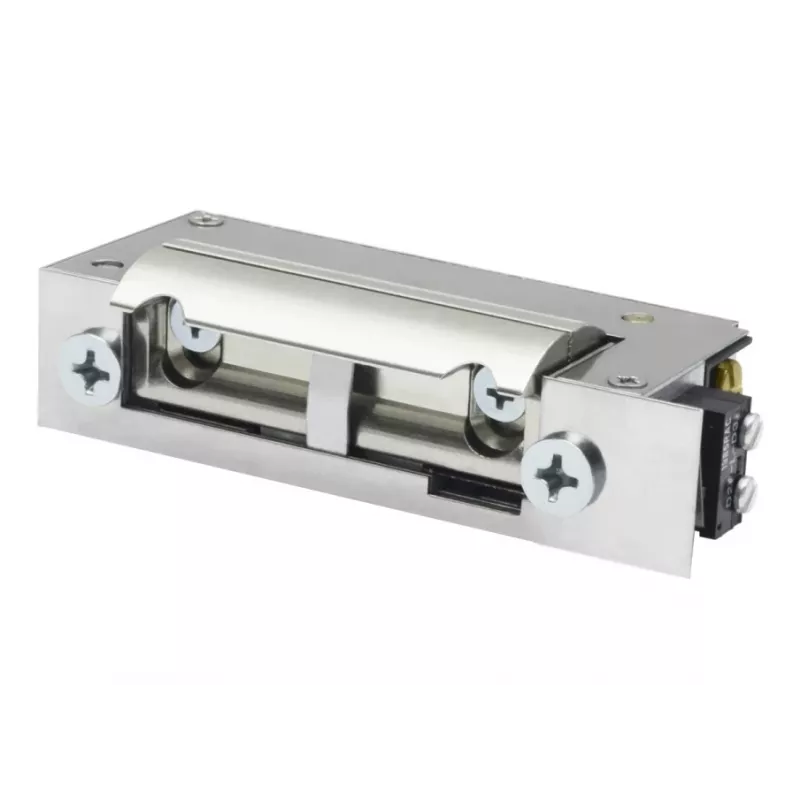

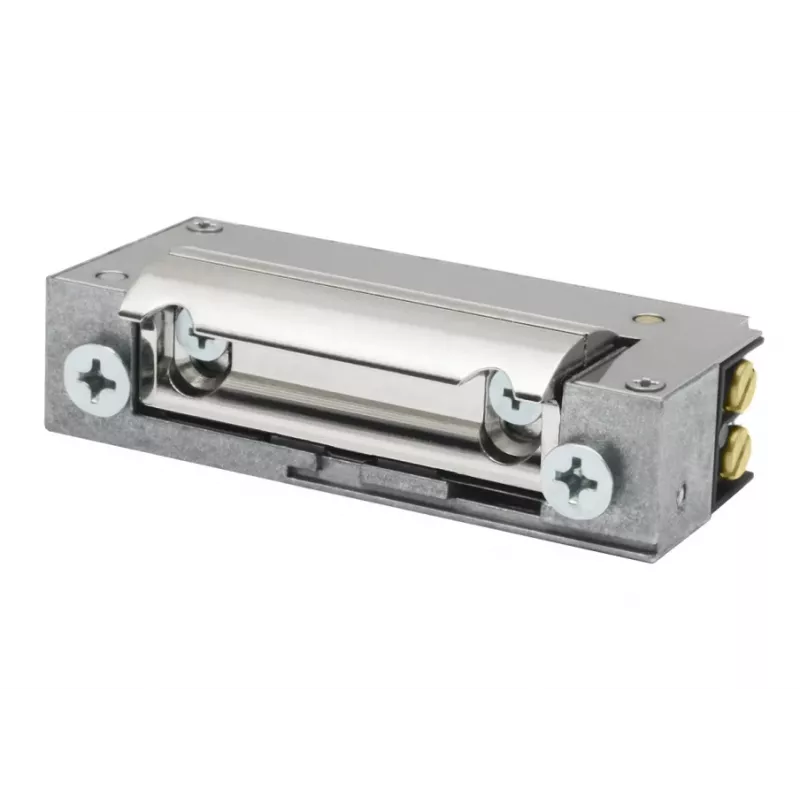

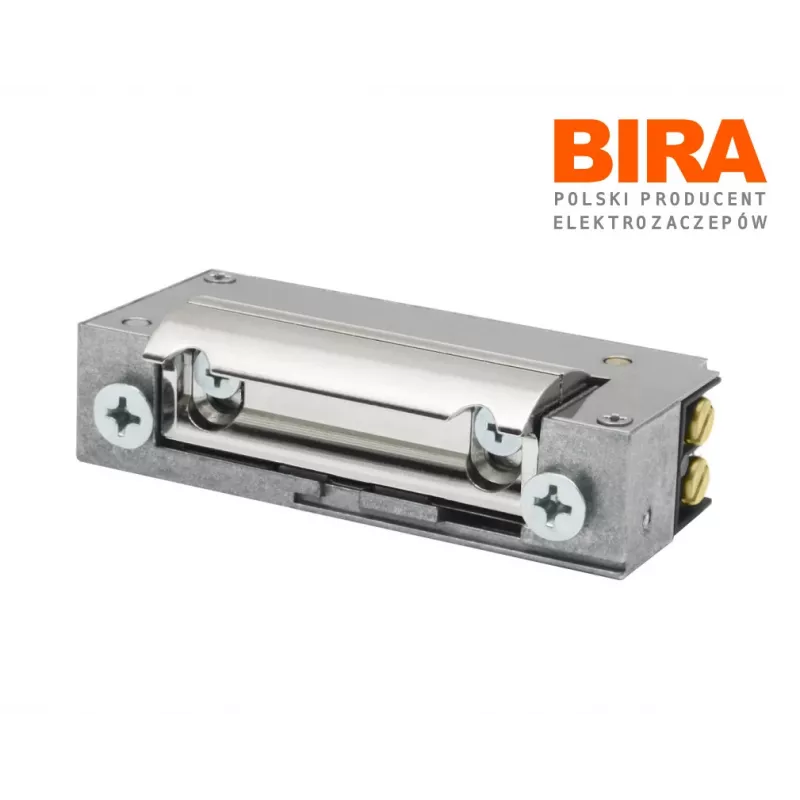

The BIRA HARTTE XS00U-B is a high-quality electric strike from the XS series, designed for access control and intercom systems. It operates on 12-24V AC/DC and features a reinforced mechanism for enhanced security. The fail-secure mode ensures the door remains locked during power loss, making it ideal for secure entry points.

Advantages

This electric strike offers low current consumption, reducing energy costs and heat generation. The reversible handing allows universal left/right installation, and the latch adjustment up to 3mm ensures compatibility with various door frames. With a holding force of approximately 3000N (300kg) and durability exceeding 200,000 cycles, it provides long-lasting reliability.

Suitable for

• Access control systems
• Intercom systems
• Residential and commercial doors
• Flush mount installations

Key specifications

• Product Type: Electric Strike
• Operating Mode: Fail-Secure
• Voltage: 12-24V AC/DC
• Current Consumption: ~280 mA (12V DC), ~140 mA (24V DC)
• Power Consumption: Low Current
• Reinforcement: Reinforced Mechanism
• Latch Adjustment: Up to 3mm
• Handing: Reversible (Universal Left/Right)

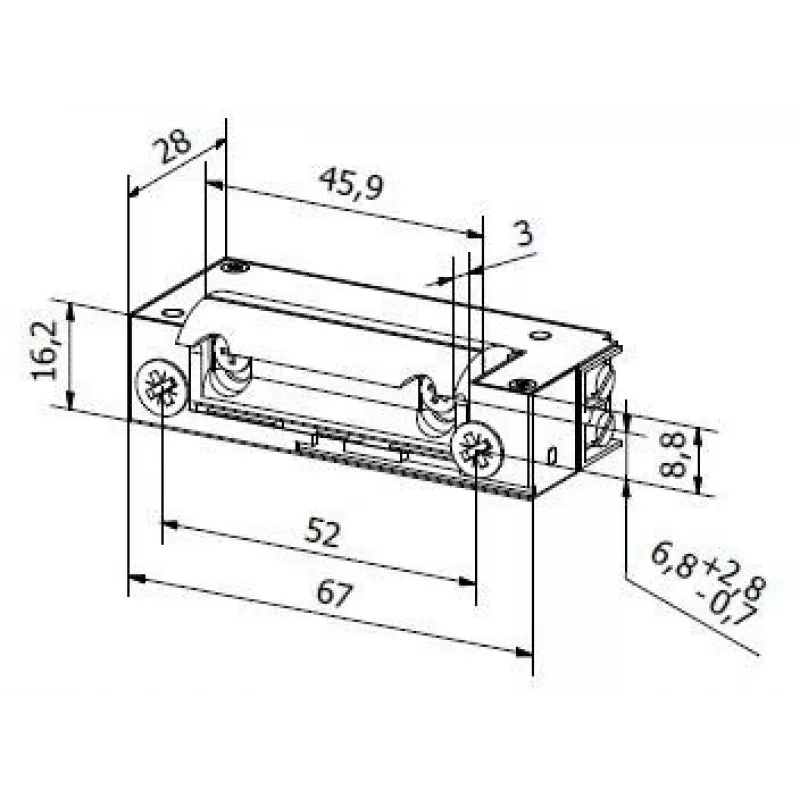

• Faceplate Dimensions: 67 x 20.5 mm
• Body Dimensions (H x W x D): 67 x 20.5 x 28 mm
• Material: Zinc Alloy Body, Steel Faceplate
• Durability: >200,000 cycles
• Operating Temperature: -20°C to +50°C
• Installation Type: Flush Mount
• Holding Force: Approx. 3000N (300kg)
• Series: XS Series

Recommendations

For optimal performance, ensure proper alignment of the strike with the latch and use a compatible power supply. This product is suitable for indoor use and should be installed by a qualified professional.
