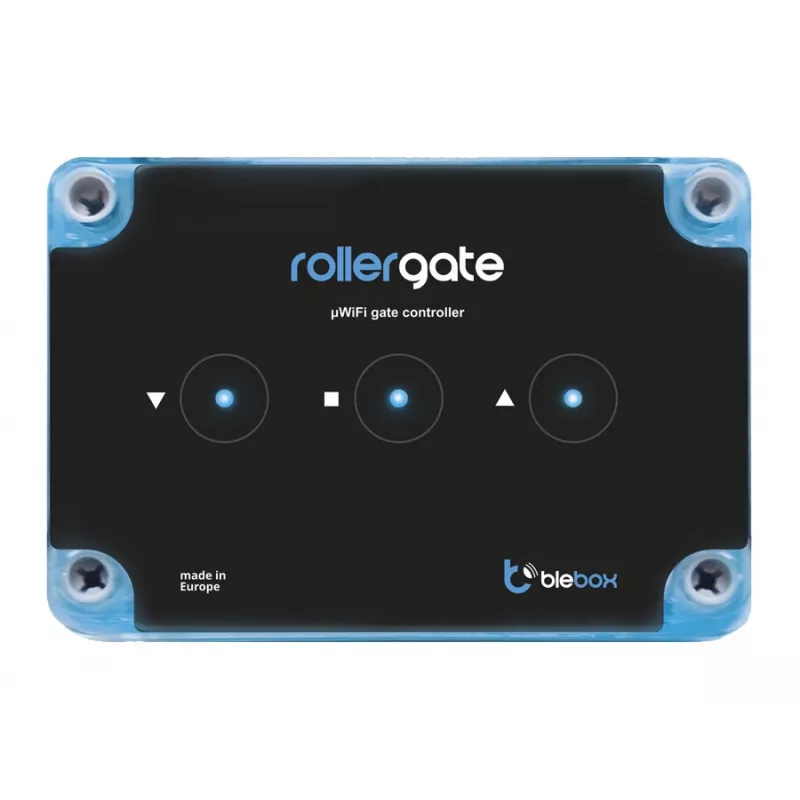

BLEBOX Rollergate rullaverhomoduuli

The BLEBOX Rollergate is a smart Wi-Fi module designed for controlling roller shutters, garage doors, gates, and awnings. It enables remote operation via the wBox app and supports voice control with Amazon Alexa and Google Assistant. The module features position tracking, scheduling, overload and thermal protection, and is easy to install in a standard in-wall box or surface mount.

Advantages

Smart control of roller shutters and gates from anywhere using your smartphone or voice assistant. The Rollergate module offers precise position tracking, scheduling, and overload protection for reliable and safe operation. Its compact design fits into standard junction boxes, making installation simple and discreet.

Suitable for

• Roller shutters
• Garage doors
• Gates
• Awnings

Key specifications

• Power Supply: 12-24V AC/DC
• Max Load Current: 5A
• Number of Outputs: 2 (Motor phases)
• Number of Inputs: 4 (e.g., Limit switches, Manual buttons)
• Wireless Protocol: Wi-Fi 802.11 b/g/n, 2.4 GHz
• Operating Temperature: -20°C to 50°C
• Enclosure Rating: IP20
• Control Type: Bi-directional motor control (Up/Down/Stop)
• Key Features: Position tracking, Scheduling, Overload protection, Thermal protection
• App Control: wBox (iOS, Android)
• Voice Assistant Compatibility: Google Assistant, Amazon Alexa
• Mounting: In-wall box (Ø60mm), Surface mount
• Power Consumption: <1W
• Wireless Range: Up to 30m indoors, 50m outdoors
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure a stable 2.4 GHz Wi-Fi network. The module is compatible with most standard roller shutters and gates. Professional installation is recommended for safety.
